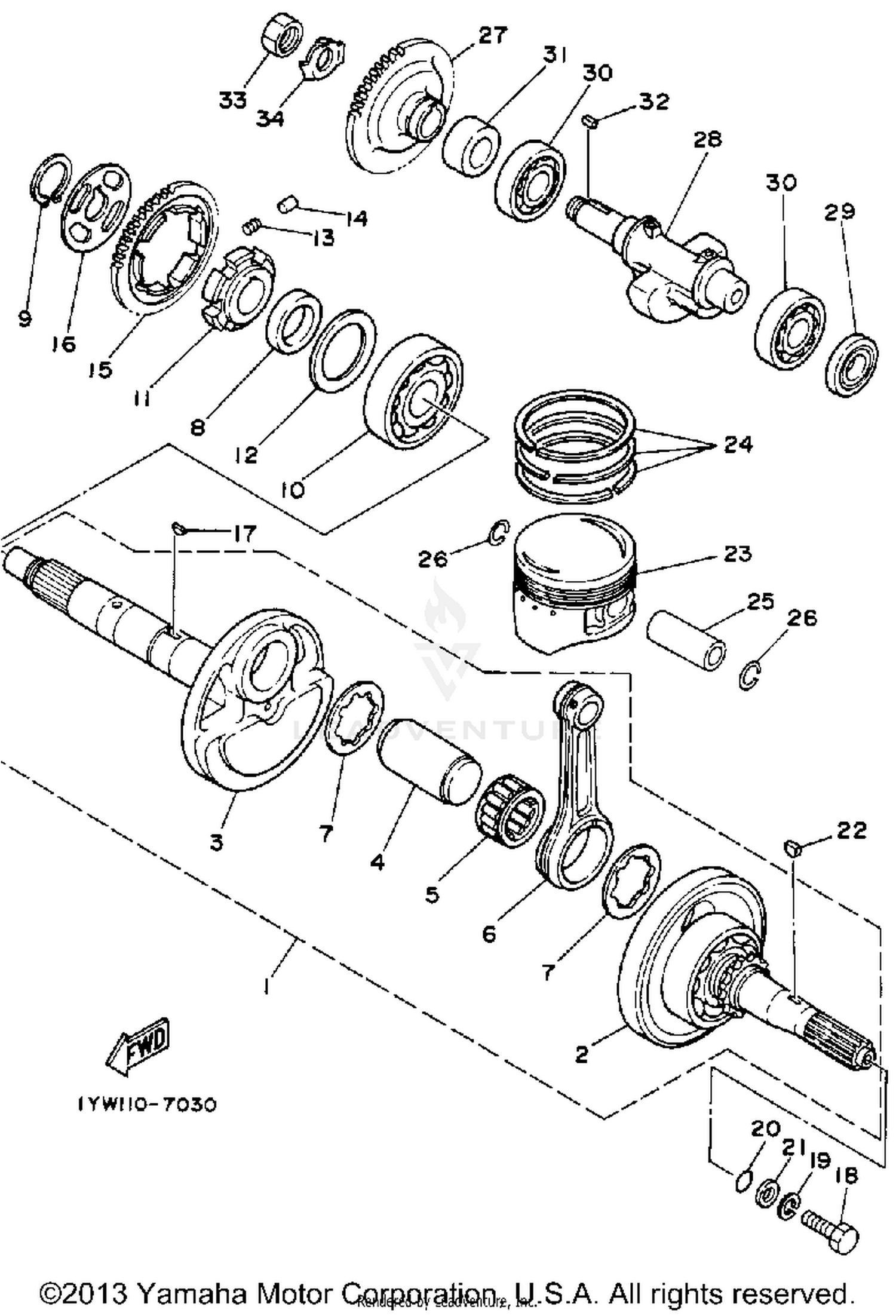

Crankshaft-piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT ASSEMBLY
1YW-11400-01-00
Superseded by 1YW-11400-02-00
|
$592.99 | ||
|
Unavailable |
|||
|
#2
CRANK SUB ASSY 1
1UY-W1141-00-00
Superseded by 1UY-11401-09-00
|
$342.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CRANK 2
1YW-11422-01-00
Superseded by 1YW-11422-02-00
|
$401.99 | ||
|
Unavailable |
|||
|
#4
PIN, CRANK 1
30X-11681-00-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING
93310-633T5-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
ROD, CONNECTING
1UY-11651-00-00
|
$130.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER
90209-33253-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR
90387-291R6-00
|
$20.99 | ||
|
Unavailable |
|||
|
#9
CIRCLIP
99009-28400-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING
93306-30630-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOSS, BUFFER
1YW-11496-00-00
|
$112.99 | ||
|
Unavailable |
|||
|
#12
WASHER, PLATE
90201-406F4-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, COMPRESSION
90501-22721-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN, DOWEL
93605-10090-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
GEAR, BALANCE WEIGHT
3Y1-11531-01-00
Superseded by 3Y1-11531-02-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, BEARING COVER
1YW-11565-00-00
|
$15.49 | ||
|
Unavailable |
|||
|
#17
KEY, WOODRUFF
90280-16053-00
Superseded by 90280-05001-00
|
$13.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BOLT
90101-10568-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, SPRING
92901-10100-00
Superseded by 92990-10100-00
|
$3.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
O-RING
93210-16290-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE
90201-107F8-00
Superseded by 90201-10058-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
KEY, WOODRUFF
90280-16053-00
Superseded by 90280-05001-00
|
$13.49 | ||
|
Unavailable |
|||
|
#23
PISTON (STD)
1YW-11631-01-Y0
|
$138.99 | ||
|
Unavailable |
|||
|
#
PISTON (1.00MM O/S)
1YW-11638-01-00
|
$175.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON (0.50MM O/S)
1YW-11636-01-00
|
$140.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
PISTON RING SET (1.00MM O/S)
42Y-11610-41-00
Superseded by 4GB-11610-40-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON RING SET (0.50MM O/S)
42Y-11610-21-00
Superseded by 4GB-11610-20-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PISTON RING SET (STD)
42Y-11610-01-00
Superseded by 4GB-11610-00-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIN, PISTON
55V-11633-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
CIRCLIP
93450-19095-00
|
$2.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
GEAR, DRIVE
1UY-11536-00-00
Superseded by 1UY-11536-01-00
|
$111.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
WEIGHT 1
1YW-11454-00-00
|
$211.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
OIL SEAL
93101-25106-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
BEARING (B6205C4)
93306-20529-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
COLLAR
90387-201R7-00
|
$12.49 | ||
|
Unavailable |
|||
|
#32
KEY, STRAIGHT
90282-05034-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
NUT
90170-16326-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER, LOCK
90215-16270-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
