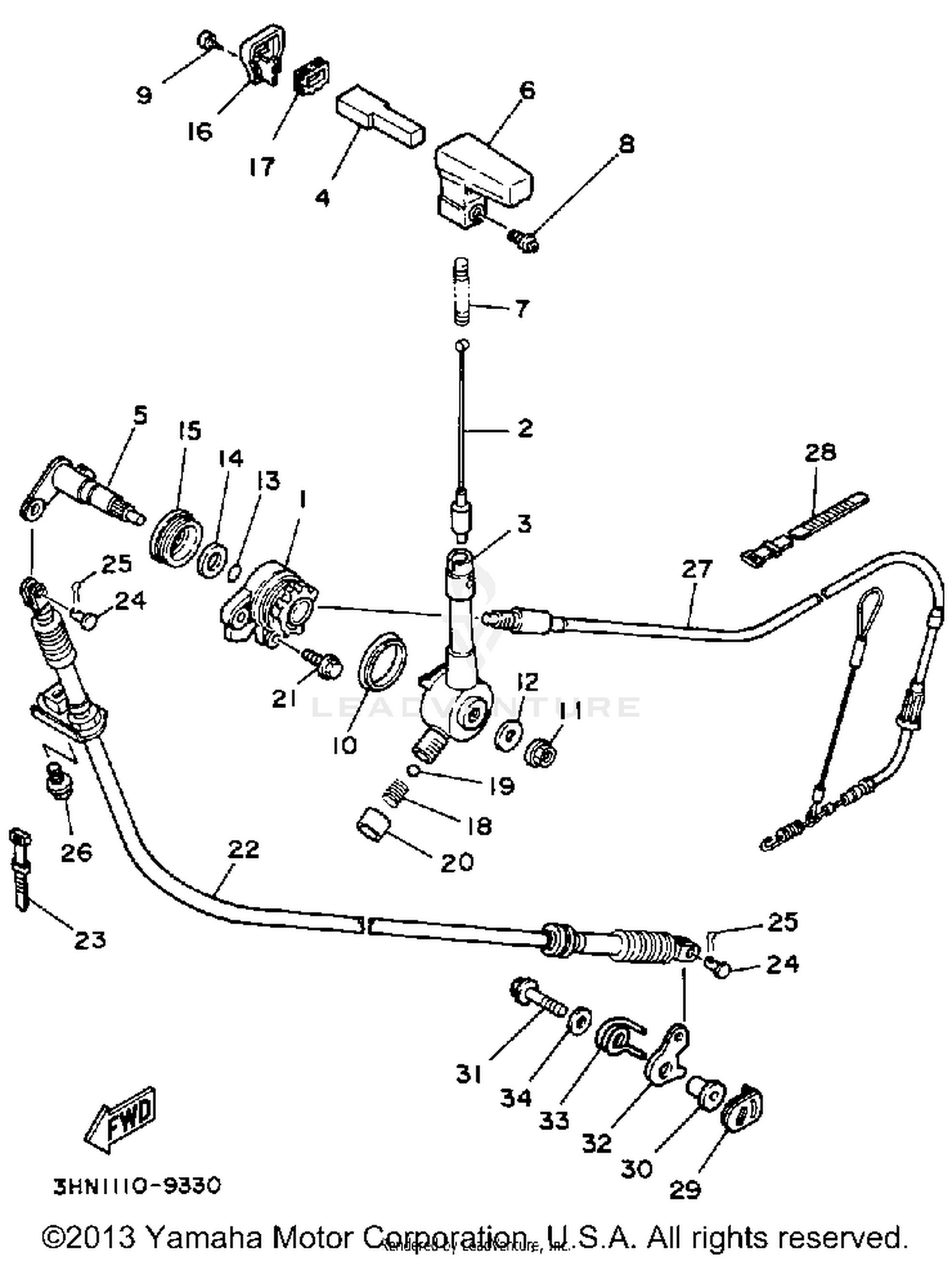

Reverse Lever Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BODY, REVERSE LEVER
2NL-26151-00-00
|
$185.99 | ||
|
Unavailable |
|||
|
#2
STOPPER, LEVER
3HN-26154-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#3
LEVER, REVERSE
3HN-26152-00-00
|
$169.99 | ||
|
Unavailable |
|||
|
#4
LEVER, LOCK
1YW-26157-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHAFT, REVERSE LEVER
2HR-26155-00-00
|
$72.99 | ||
|
Unavailable |
|||
|
#6
GRIP, LEVER
2HR-26153-00-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING, COMPRESSION
90501-124F0-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, WITH WASHER
90159-05156-00
|
$0.70 | ||
|
Unavailable |
|||
|
#9
SCREW, TRUSS
97706-40512-00
Superseded by 97707-40612-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
OIL SEAL
93112-48009-00
|
$9.49 | ||
|
Unavailable |
|||
|
#11
NUT
90179-08428-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
90201-08753-00
Superseded by 90201-081R9-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
O-RING
93210-12790-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-16242-00
Superseded by 90201-162H4-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
CAP, RUBBER
2NL-26329-00-00
|
$10.49 | ||
|
Unavailable |
|||
|
#16
CAP, GRIP
1YW-2628J-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SEAL
1YW-2639G-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#18
SPRING, COMPRESSION
90501-157E9-00
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#19
BALL
93521-64032-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
NUT 1
2NL-26294-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#21
BOLT, FLANGE
95811-06020-00
Superseded by 95817-06020-00
|
$3.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
CABLE, CONTROL 1
3HN-2637E-00-00
Superseded by 3HN-2637E-01-00
|
$289.99 | ||
|
Unavailable |
|||
|
#23
BAND
341-26397-01-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
PIN
91701-06016-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
BOLT, FLANGE
95811-10020-00
Superseded by 95817-10020-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
WIRE, CONTROL 2
2HR-2637F-00-00
|
$121.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BAND, SWITCH CORD
437-83936-11-00
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
|
#29
LEVER
1YW-18198-00-00
Superseded by 4SH-18198-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
COLLAR
90387-063W7-00
Superseded by 90387-0613B-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE
95811-06035-00
Superseded by 95817-06035-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
LEVER
1YW-18191-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
SPRING, TORSION
90508-35764-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER, PLATE
90201-06M02-00
|
$2.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
