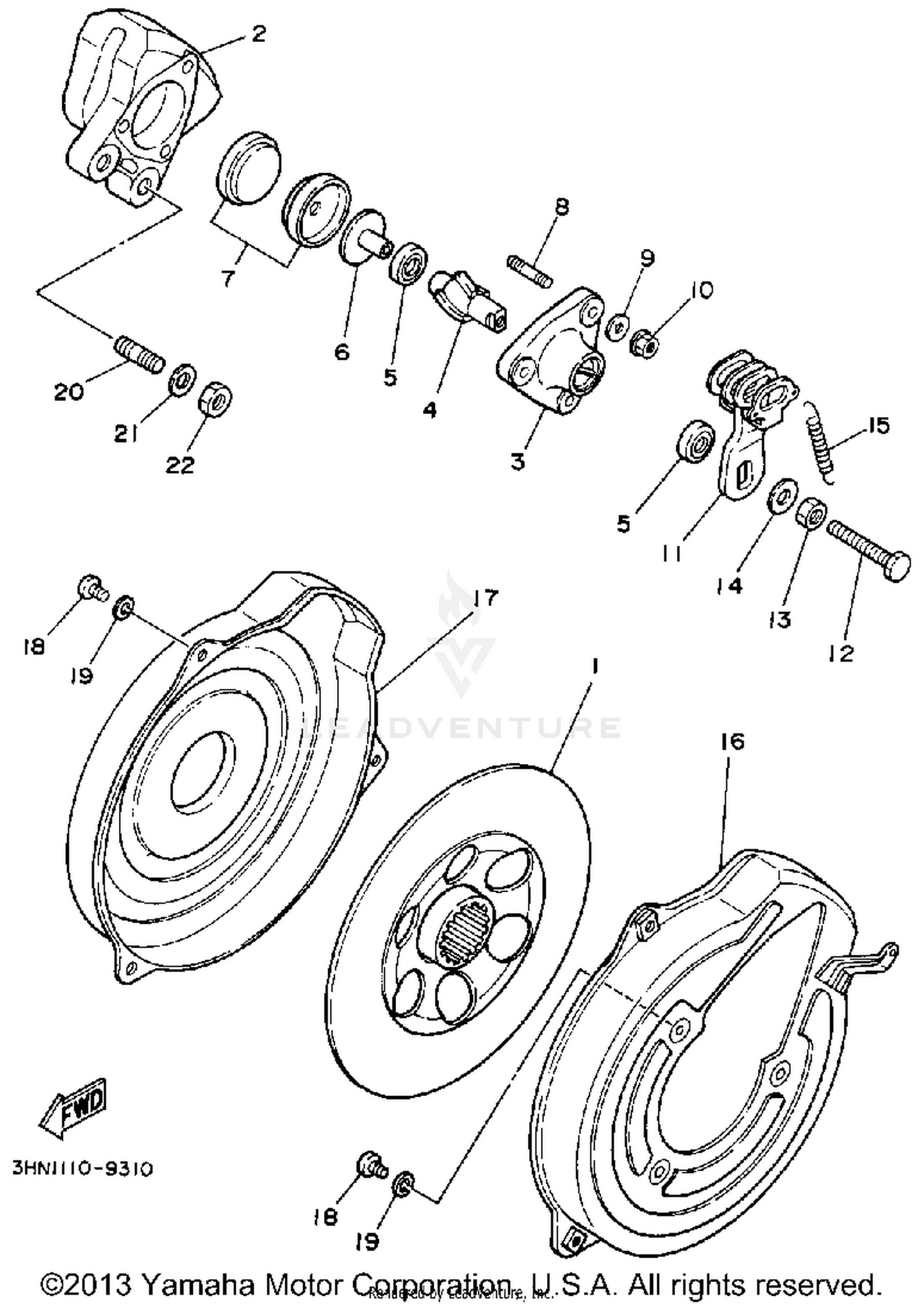

Rear Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DISC, BRAKE
21V-25711-01-00
|
$193.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BODY, CALIPER 1
2HR-25731-01-00
|
$224.99 | ||
|
Unavailable |
|||
|
#3
BODY, CALIPER 2
2HR-25741-01-00
|
$143.99 | ||
|
Unavailable |
|||
|
#4
CAM
2HR-25728-00-00
|
$37.99 | ||
|
Unavailable |
|||
|
#5
OIL SEAL
93102-15212-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, BACK UP
5V6-25733-00-00
Superseded by J45-25733-00-00
|
$21.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
BRAKE PAD KIT
2HR-W0045-00-00
Superseded by 2HR-W0045-09-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, STUD
90116-06475-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLAIN
92990-06200-00
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, FLANGE
95701-06500-00
Superseded by 95780-06500-00
|
$2.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
LEVER, BRAKE
2HR-25726-00-00
|
$66.99 | ||
|
Unavailable |
|||
|
#12
BOLT, HEAD WITH HOLE
90101-08536-00
Superseded by 90103-08026-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT
95333-08600-00
|
$3.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-08730-00
Superseded by 90201-087F0-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
SPRING, TENSION
90506-16215-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#16
COVER 1
2HR-25715-01-00
|
$60.99 | ||
|
Unavailable |
|||
|
#17
COVER 2
2HR-25716-00-00
|
$78.99 | ||
|
Unavailable |
|||
|
#18
SCREW, PAN HEAD
98580-06010-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, SPRING
92995-06100-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT,STUD 2
95611-10318-00
Superseded by 95617-10318-00
|
$8.99 | ||
|
Unavailable |
|||
|
#21
WASHER, PLATE
90201-104G0-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT
95311-10600-00
Superseded by 95314-10600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
