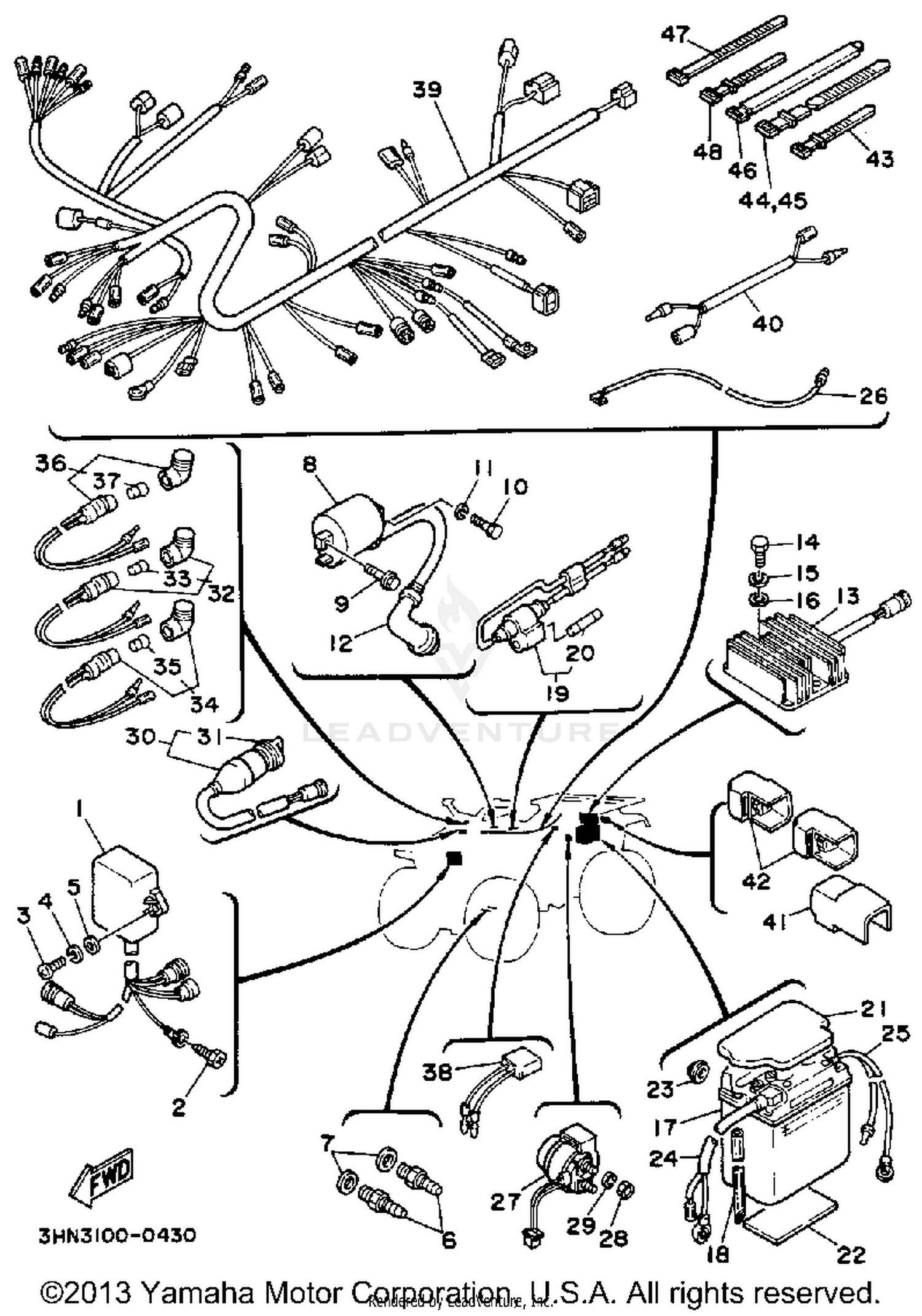

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
C.D.I. UNIT ASSEMBLY
3HN-85540-10-00
|
$567.99 | ||
|
Unavailable |
|||
|
#2
SCREW, HEXAGON
90153-06044-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, PAN HEAD
98580-06020-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
WASHER, SPRING
92995-06100-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
92990-06600-00
|
$2.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
NEUTRAL SWITCH ASSY
3GB-82540-00-00
Superseded by 3GB-82540-01-00
|
$63.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
GASKET
90430-10171-00
|
$3.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
IGNITION COIL ASSY
3GD-82310-10-00
|
$166.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
90109-06723-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$4.06 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
WASHER, SPRING
92995-06100-00
|
$3.45 | ||
|
Unavailable |
|||
|
#12
PLUG CAP ASSY
371-82370-00-00
Superseded by 4VW-82370-00-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
RECTIFIER & REGULATOR ASSEMBLY
59V-81960-A0-00
|
$221.99 | ||
|
Unavailable |
|||
|
#14
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.76 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, SPRING
92995-06100-00
|
$3.45 | ||
|
Unavailable |
|||
|
#16
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.85 | ||
|
Unavailable |
|||
|
#17
CB14-A2 GS BATTERY
BTG-GM14A-Z4-A0
Superseded by CB1-4A200-00-00
|
$62.95 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIPE
90445-084E3-00
Superseded by 90445-084J0-00
|
$20.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
FUSE HOLDER ASSY
59V-82150-00-00
Superseded by 2NL-82150-00-00
|
$76.99 | ||
|
Unavailable |
|||
|
#20
FUSE 30A
705-82151-00-00
Superseded by 705-82151-01-00
|
$5.30 | ||
|
Available to order. Add to View Price |
|||
|
#21
COVER, BATTERY
24W-82129-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SEAT, BATTERY
51Y-82122-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
PAD, BATTERY
371-82121-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
WIRE, PLUS LEAD
3LD-82115-00-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
WIRE, MINUS LEAD
2HR-82116-00-00
|
$37.99 | ||
|
Unavailable |
|||
|
#26
WIRE, LEAD
3HN-82541-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#27
STARTER RELAY ASSY (MS5D-611)
4KD-81940-00-00
|
$125.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT
95380-06700-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, SPRING
92995-06100-00
|
$3.45 | ||
|
Unavailable |
|||
|
#30
MAIN SWITCH ASSY
2FJ-82510-02-00
Superseded by 2FJ-82510-09-00
|
$111.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
CAP, KEY
24W-82579-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
PILOT LIGHT ASSY
24W-83530-00-00
Superseded by 24W-83530-10-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
BULB (12V-3.4W)
123-83516-21-00
Superseded by 123-83516-21-XX
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#34
PILOT LIGHT ASSY
52G-83530-00-00
Superseded by 52G-83530-10-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
BULB (12V-3.4W)
123-83516-21-00
Superseded by 123-83516-21-XX
|
$4.75 | ||
|
Unavailable |
|||
|
#36
PILOT LIGHT ASSEMBLY
2HR-83530-00-00
Superseded by 3FA-83530-10-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
BULB (12V-3.4W)
123-83516-21-00
Superseded by 123-83516-21-XX
|
$4.75 | ||
|
Unavailable |
|||
|
#38
CHECKER, PILOT LAMP
38W-85774-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
WIRE HARNESS ASSEMBLY
3HN-82590-10-00
Superseded by 3HN-82590-11-00
|
$351.99 | ||
|
Unavailable |
|||
|
#40
WIRE, LEAD
59V-82541-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#41
RELAY ASSY (1UY-92)
1UY-81950-92-00
|
$83.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
RELAY ASSY (29U-93)
29U-81950-93-00
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
BAND, SWITCH CORD
437-83936-01-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
BAND, SWITCH CORD
437-83936-11-00
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
|
#45
BAND, SWITCH CORD
437-83936-11-00
|
$5.00 | ||
|
Unavailable |
|||
|
#46
BAND
341-26397-01-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#47
CLAMP
1UY-82591-00-00
|
$1.20 | ||
|
Unavailable |
|||
|
#48
BAND, SWITCH CORD
437-83936-01-00
|
$8.49 | ||
|
Unavailable |
|||
