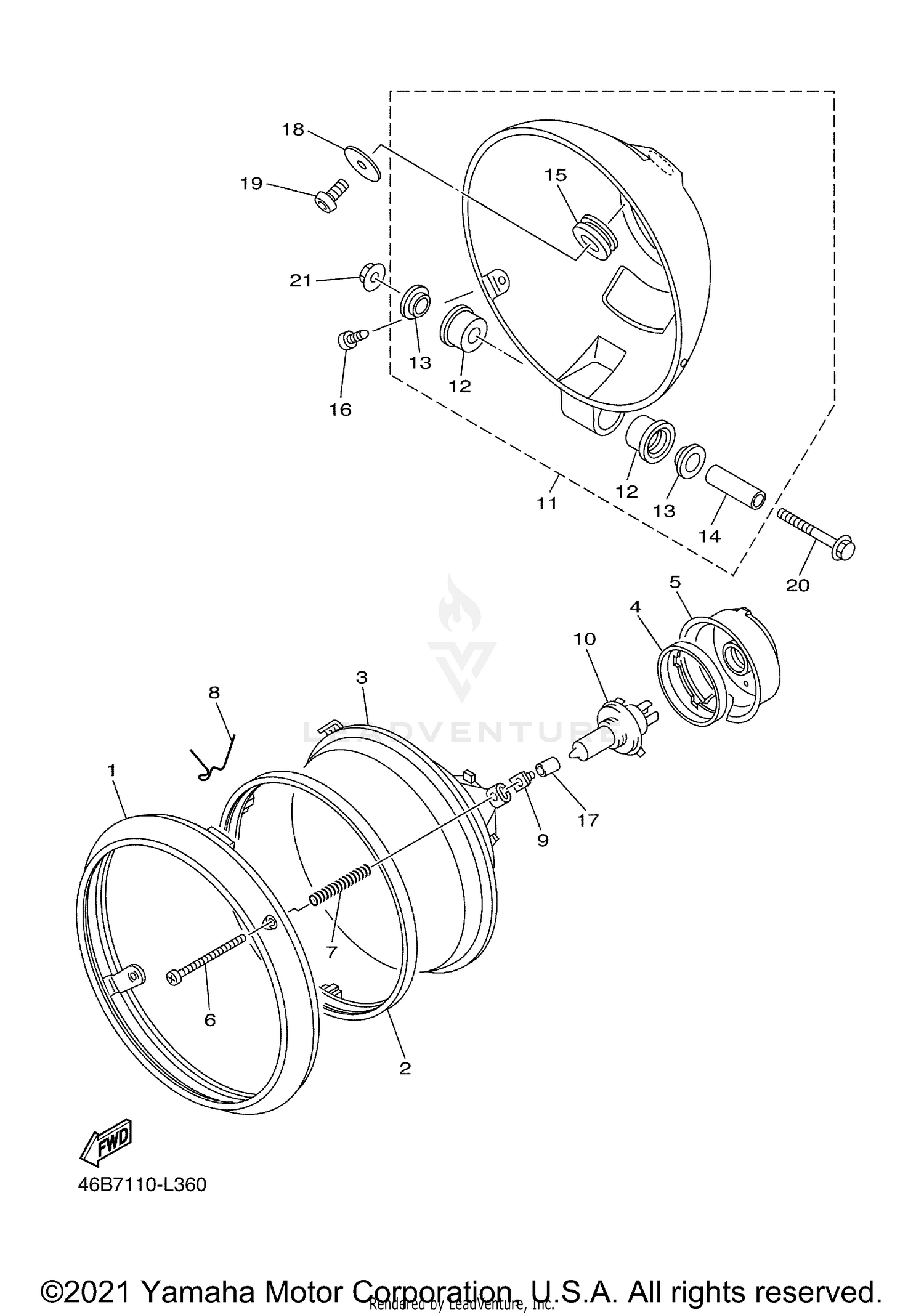

Headlight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RIM, HEADLIGHT
42X-84315-01-00
|
$132.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
RING, RETAINING
5Y3-84395-00-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
LENS ASSY
42X-84321-A0-00
|
$131.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SETTING PLATE, BULB
2F9-84375-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, SOCKET
2F9-84397-01-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, ADJUSTING
341-84331-60-00
Superseded by 90157-04001-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
SPRING, SCREW
1A0-84332-60-00
Superseded by 447-84332-60-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, SET
42X-84124-60-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, ADJUSTING
198-84334-60-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BULB, HEADLIGHT (12V-60/55W)
2F9-84314-00-00
Superseded by 8V0-84314-10-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BODY ASSY
2UJ-84330-00-00
Superseded by 42X-84330-01-00
|
$234.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
DAMPER, HEADLIGHT
42X-84345-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR, BODY FITTING
1FK-84338-00-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR, BODY FITTING
2UJ-84338-00-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#15
DAMPER, HEADLIGHT 1
42X-84366-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, PAN HEAD
90157-05084-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
CAP, 1
3HT-84385-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
90201-060A3-00
Superseded by 90201-06086-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, BUTTON HEAD
92012-06014-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE
95824-06045-00
Superseded by 95814-06045-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, FLANGE
95704-06500-00
Superseded by 95780-06500-00
|
$2.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
