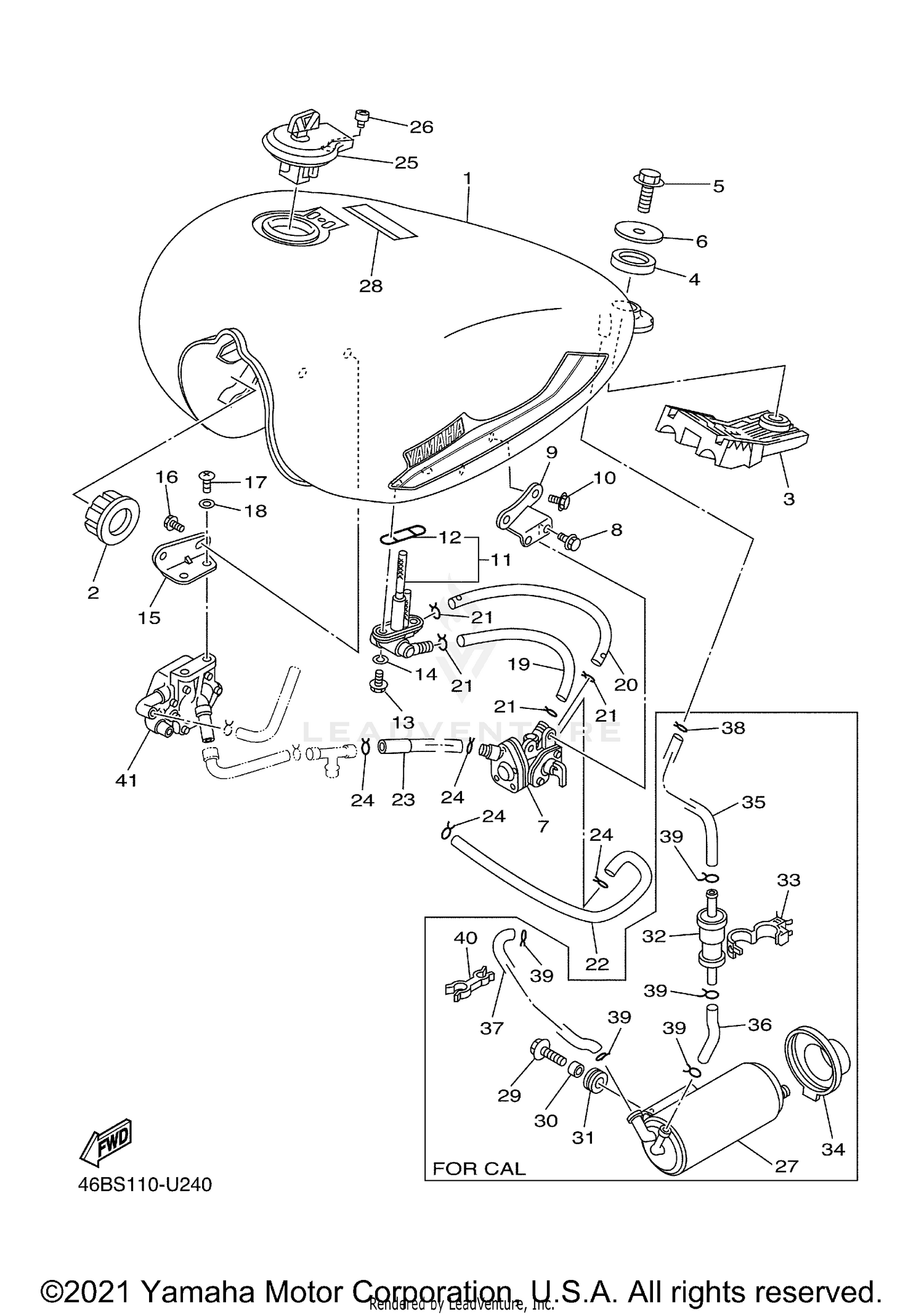

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
3LS-Y2410-T3-W7
|
$729.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
FUEL TANK COMP.
3BG-Y2410-02-W2
|
$700.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
DAMPER, LOCATING 1
4H7-24181-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
DAMPER, LOCATING 2
2UJ-24182-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
DAMPER, LOCATING 3
42X-24183-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, FLANGE
95807-08030-00
Superseded by 95817-08030-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
WASHER, PLATE
90201-08569-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
FUEL COCK ASSY 1
2UJ-24500-10-00
|
$150.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE (SMALL HEAD)
95024-06010-00
|
$5.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
BRACKET, FUEL COCK
2UJ-24544-01-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE (SMALL HEAD)
95024-06010-00
|
$5.00 | ||
|
Unavailable |
|||
|
#11
FILTER ASSY
2UJ-24560-10-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET
4X8-24512-10-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW
90149-06011-00
|
$2.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
WASHER, PLATE
90202-05193-00
Superseded by 90202-05187-00
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BRACKET, FUEL PUMP
2UJ-24491-01-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (SMALL HEAD)
95024-06010-00
|
$5.00 | ||
|
Unavailable |
|||
|
#17
SCREW,PAN
98507-06012-00
Superseded by 98517-06012-00
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
92907-06600-00
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
HOSE
90445-11057-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOSE
90445-11058-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
PIPE 2
2UJ-24312-10-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIPE 3
2UJ-24313-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$8.49 | ||
|
Unavailable |
|||
|
#25
CAP ASSY
20K-24602-10-00
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
CAP ASSY
4X7-24602-10-00
|
$138.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, HEX. SOCKET HEAD
91317-05010-00
|
$2.75 | ||
|
Unavailable |
|||
|
#27
CANISTER ASSEMBLY
3BG-24170-00-00
|
$291.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
LABEL, CAUTION
1TP-2118K-A2-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, WITH WASHER
90119-06118-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
COLLAR
90387-0602R-00
Superseded by 90387-0600V-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
GROMMET
90480-14323-00
Superseded by 90480-14329-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
ROLL OVER VALVE ASSY
5PX-24180-00-00
|
$62.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
CLAMP
90464-15192-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
COVER, CANISTER
2JU-2419E-00-00
|
$204.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
PIPE 10
3BG-24321-10-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
PIPE 11
3BG-24322-10-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
PIPE 12
3BG-24323-10-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#39
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$8.49 | ||
|
Unavailable |
|||
|
#40
CLAMP
90464-16119-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#41
FUEL PUMP ASSY
3DM-13910-11-00
|
$237.99 | ||
|
Available to order. Add to View Price |
|||
