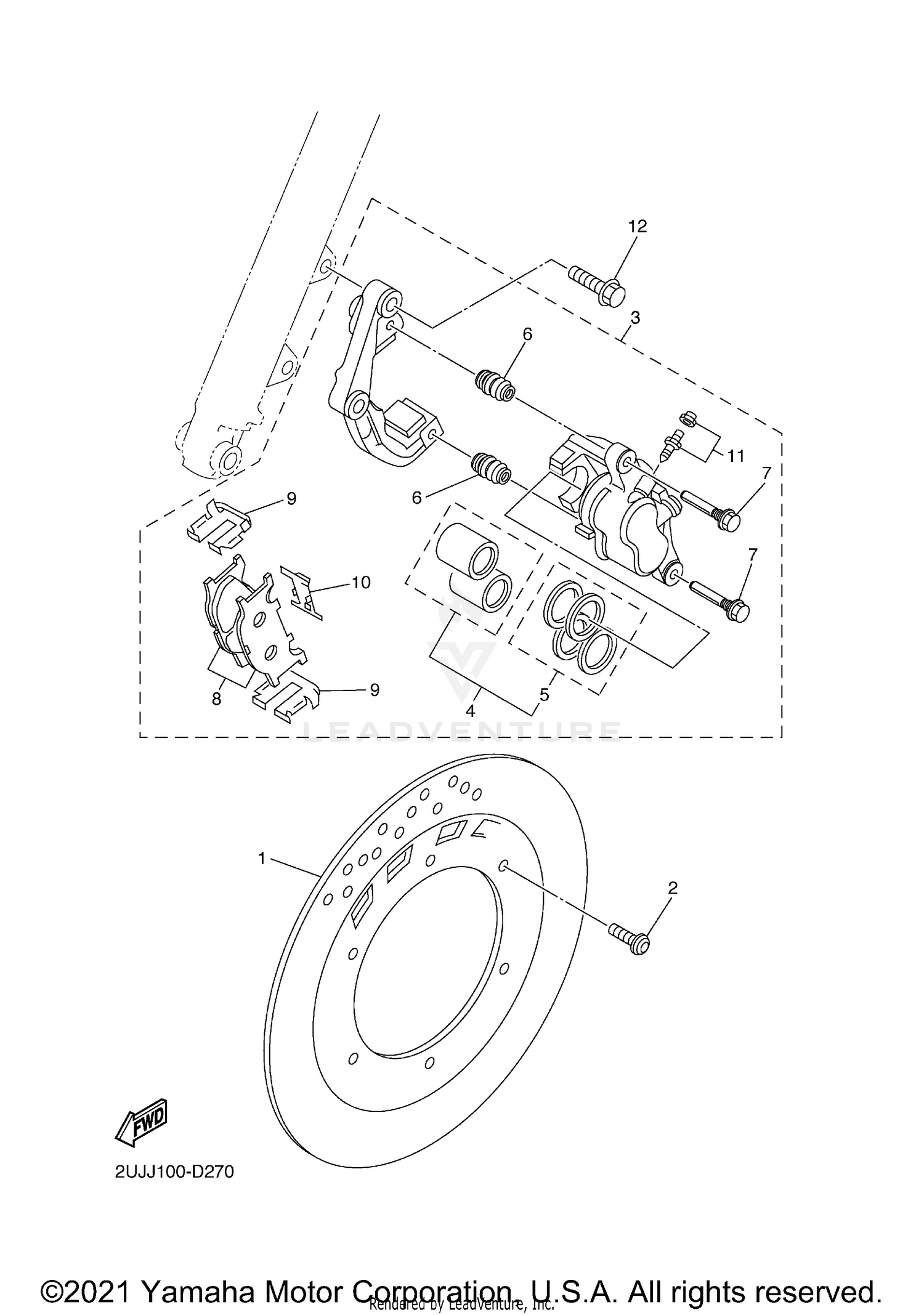

Front Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DISC, BRAKE (LEFT)
3LP-2582T-00-00
|
$399.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT,HEX. SOCKET BUT
90109-081F0-00
Superseded by 90111-08053-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
CALIPER ASSY (LEFT)
3BG-2580T-00-00
|
$387.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PISTON ASSY, CALIPER
5KS-W0057-00-00
Superseded by 5KS-25802-00-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CALIPER SEAL KIT
4FU-W0047-00-00
Superseded by 4HC-25803-50-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOOT 2
4TT-25937-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN, SLIDE
5JW-25914-10-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRAKE PAD KIT
4HM-W0045-00-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SUPPORT, PAD
4BP-25919-00-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, ANTI RATTLE
3YX-25929-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BLEED SCREW KIT
51L-W0048-00-00
Superseded by 15B-W0048-00-00
|
$21.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
BOLT, WASHER BASED
90105-10638-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
