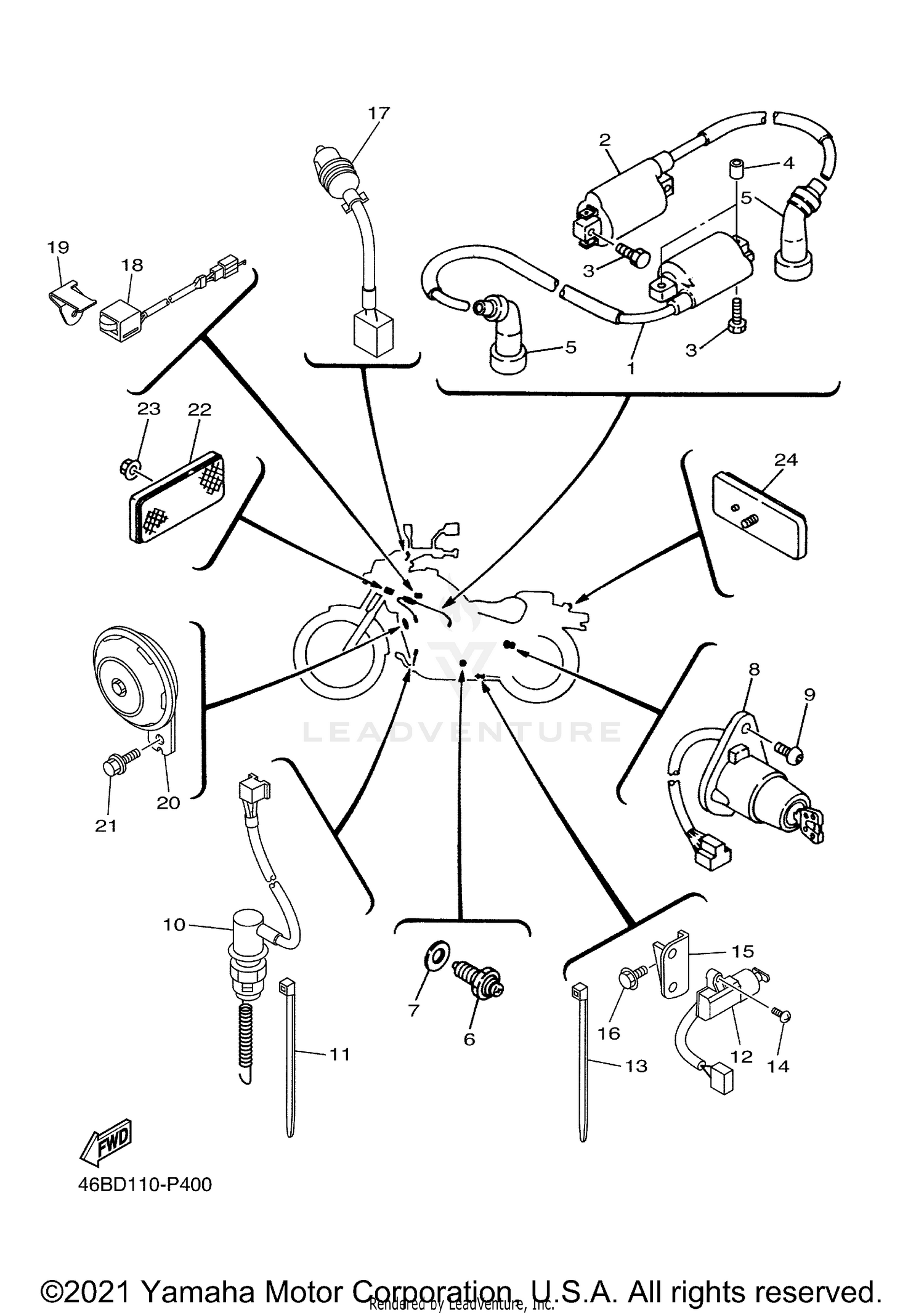

Electrical 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
IGNITION COIL ASSY
2UJ-82310-02-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
IGNITION COIL ASSY
2UJ-82320-01-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
97007-05020-00
Superseded by 97027-05020-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOSE (L200)
90445-070K7-00
Superseded by 90445-07176-00
|
$7.70 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLUG CAP ASSY
1UY-82370-20-00
Superseded by 3NS-82370-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
NEUTRAL SWITCH ASSY
4KM-82540-00-00
Superseded by 4GY-82540-10-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET
90430-10148-00
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
MAIN SWITCH ASSY
46B-82510-00-00
|
$237.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW
90149-06228-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
STOP SWITCH ASSY
5PW-82530-00-00
Superseded by 5PW-82530-01-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP
90464-16061-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SWITCH, SIDE STAND
3LD-82566-60-00
Superseded by 3LD-82566-61-00
|
$56.99 | ||
|
Unavailable |
|||
|
#13
CLAMP
90464-16061-00
|
$9.49 | ||
|
Unavailable |
|||
|
#14
SCREW, PAN HEAD
90157-05079-00
Superseded by 98507-05014-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
PANEL, SWITCH
2UJ-82565-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT,FLANGE
95827-06010-00
Superseded by 95817-06010-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
FRONT STOP SWITCH ASSY
19D-83980-10-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
THERMO SWITCH ASSY
5FU-82560-40-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
PANEL, SWITCH
3BG-82571-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
HORN
1HX-83371-11-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT,FLANGE
95807-06010-00
Superseded by 95817-06010-00
|
$5.49 | ||
|
Unavailable |
|||
|
#22
REFLECTOR ASSY
11H-85110-01-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, FLANGE
95707-05500-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
REAR REFLECTOR ASSY
3Y6-85130-02-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
