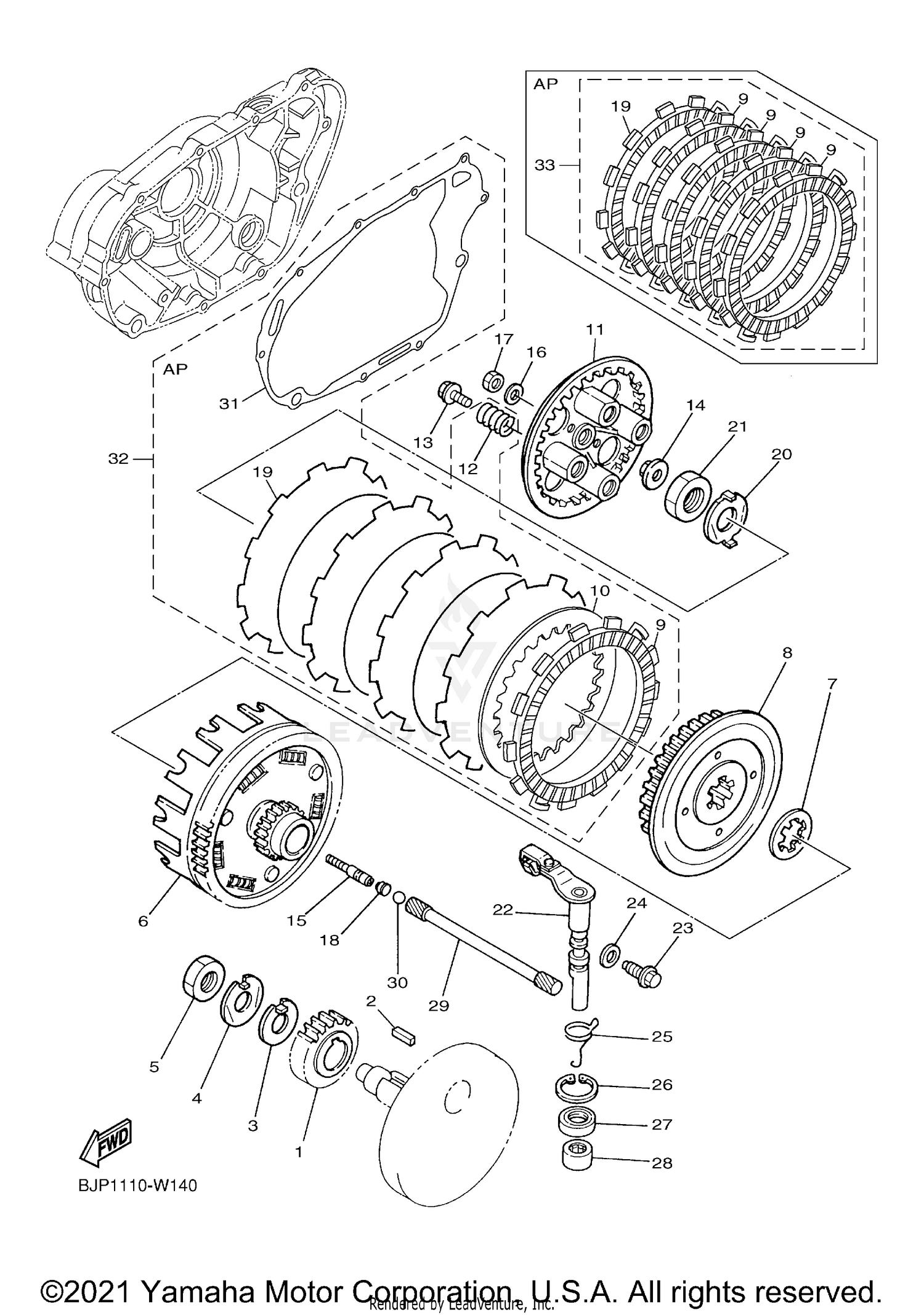

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, PRIMARY DRIVE (23T)
3Y6-16111-03-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
KEY, STRAIGHT
90282-07023-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
WASHER, LOCK
90215-16156-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, LOCK
90215-16222-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
NUT
90170-16256-00
Superseded by 90170-16343-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
PRIMARY DRIVEN GEAR COMP.
2UJ-16150-00-00
|
$355.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, THRUST 1
30X-16154-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOSS, CLUTCH
30X-16371-00-00
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, FRICTION 2
5Y1-16331-01-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, CLUTCH 1
3J2-16324-00-00
Superseded by 3J2-16324-10-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE, PRESSURE 1
30X-16351-02-00
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING, COMPRESSION
90501-26148-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, WITH WASHER
90159-06016-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLATE, PUSH
1W1-16358-01-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
ROD, PUSH 1
4DN-16356-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER
92907-06200-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT
95307-06600-00
Superseded by 95317-06600-00
|
$3.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
SEAL, ROD PUSH
3YX-1635A-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLATE, FRICTION
31A-16321-01-00
Superseded by 4H7-16321-02-00
|
$25.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
WASHER, LOCK
90215-16320-00
|
$13.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
NUT
90170-16326-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
PUSH LEVER ASSEMBLY
2UJ-16380-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW
90149-08067-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
GASKET
90430-08119-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
SPRING, TORSION
90508-14433-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
CIRCLIP
93420-28055-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
OIL SEAL, SD TYPE
93102-14209-00
|
$12.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
BEARING
93315-31428-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
ROD, PUSH 2
2UJ-16357-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
BALL
93511-32017-00
Superseded by 93511-32027-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
GASKET, CRANKCASE COVER 2
4RF-15461-01-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
CLUTCH PLATE KIT
BJP-W001G-00-00
|
$108.99 | ||
|
Unavailable |
|||
|
#33
FRICTION PLATE KIT
BJP-W001M-00-00
|
$59.99 | ||
|
Unavailable |
|||
