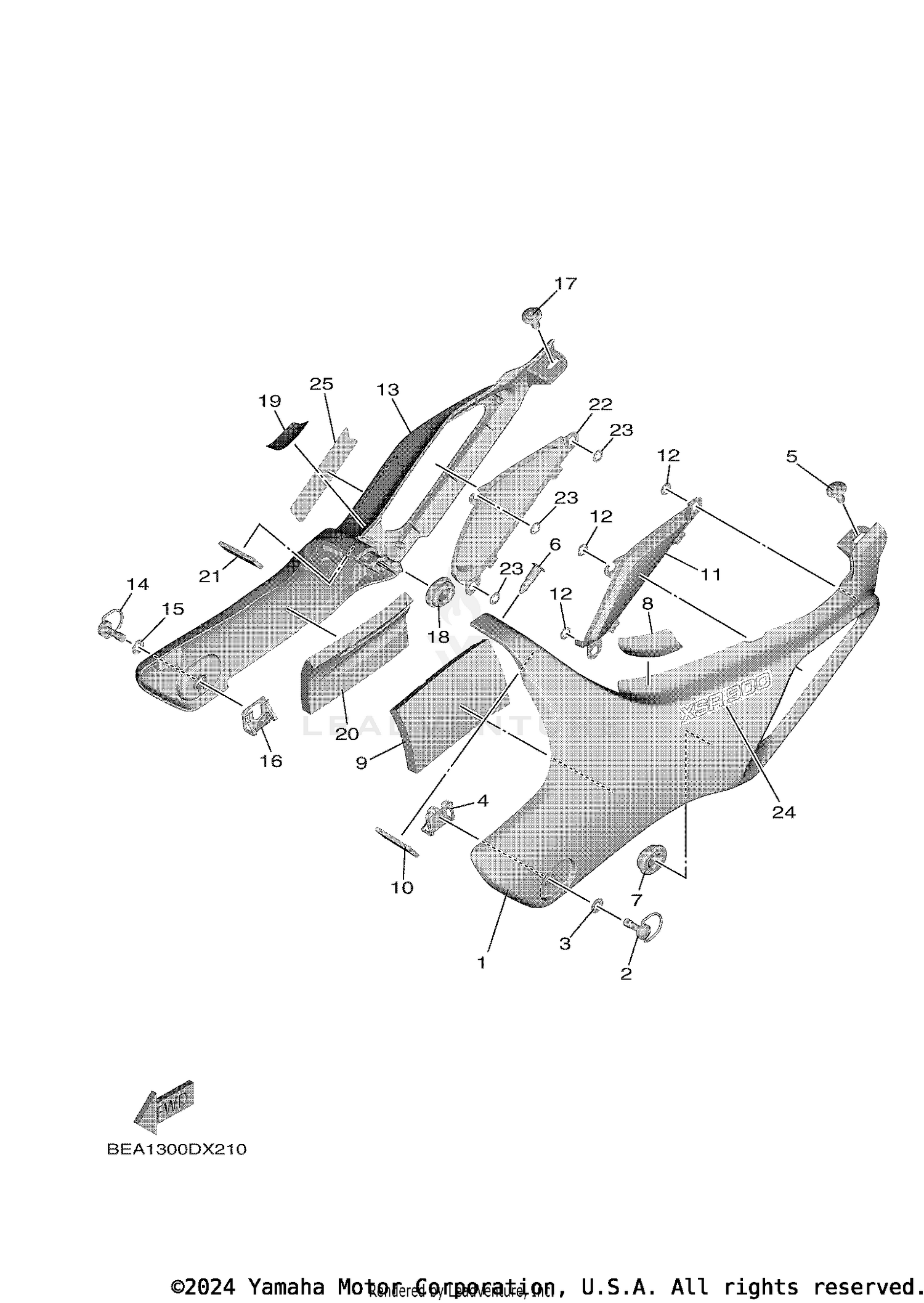

Side Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, SIDE 1
BEA-21711-00-P1
|
$141.99 | ||
|
Unavailable |
|||
|
#1
COVER, SIDE 1
BEA-21711-00-P2
|
$118.99 | ||
|
Unavailable |
|||
|
#2
HEAD
8HG-28386-00-00
|
$34.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
WASHER, SPECIAL 1
8HG-21757-00-00
|
$1.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
PLATE, SPRING
2CR-2177L-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
RIVET
90269-06046-00
Superseded by 90269-06001-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
RIVET
90269-07001-00
|
$1.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
GROMMET
90480-01558-00
|
$4.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
SEAL 1
BEA-21732-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#9
DAMPER, PLATE
90520-08010-00
|
$3.75 | ||
|
Unavailable |
|||
|
#10
PROTECTOR, FUEL TANK
2JX-24141-00-00
Superseded by 18A-21778-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
GRILL, AIR OUTLET 1
BEA-2837V-00-00
|
$36.99 | ||
|
Unavailable |
|||
|
#12
NUT, SPRING
90183-05M02-00
|
$0.50 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER, SIDE 2
BEA-21721-00-P1
|
$106.99 | ||
|
Unavailable |
|||
|
#13
COVER, SIDE 2
BEA-21721-00-P2
|
$123.99 | ||
|
Unavailable |
|||
|
#14
HEAD
8HG-28386-00-00
|
$34.99 | ||
|
Unavailable |
|||
|
#15
WASHER, SPECIAL 1
8HG-21757-00-00
|
$1.15 | ||
|
Unavailable |
|||
|
#16
PLATE, SPRING
2CR-2177L-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#17
RIVET
90269-06046-00
Superseded by 90269-06001-00
|
$6.49 | ||
|
Unavailable |
|||
|
#18
GROMMET
90480-01558-00
|
$4.65 | ||
|
Unavailable |
|||
|
#19
SEAL 1
BEA-21732-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#20
DAMPER, PLATE
90520-08010-00
|
$3.75 | ||
|
Unavailable |
|||
|
#21
PROTECTOR, FUEL TANK
2JX-24141-00-00
Superseded by 18A-21778-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#22
GRILL, AIR OUTLET 2
BEA-2837W-00-00
|
$33.99 | ||
|
Unavailable |
|||
|
#23
NUT, SPRING
90183-05M02-00
|
$0.50 | ||
|
Unavailable |
|||
|
#24
EMBLEM
BEA-21737-20-00
|
$9.49 | ||
|
Unavailable |
|||
|
#24
EMBLEM
BEA-21737-30-00
|
$9.49 | ||
|
Unavailable |
|||
|
#25
EMBLEM
BEA-21737-30-00
|
$9.49 | ||
|
Unavailable |
|||
|
#25
EMBLEM
BEA-21737-20-00
|
$9.49 | ||
|
Unavailable |
|||
