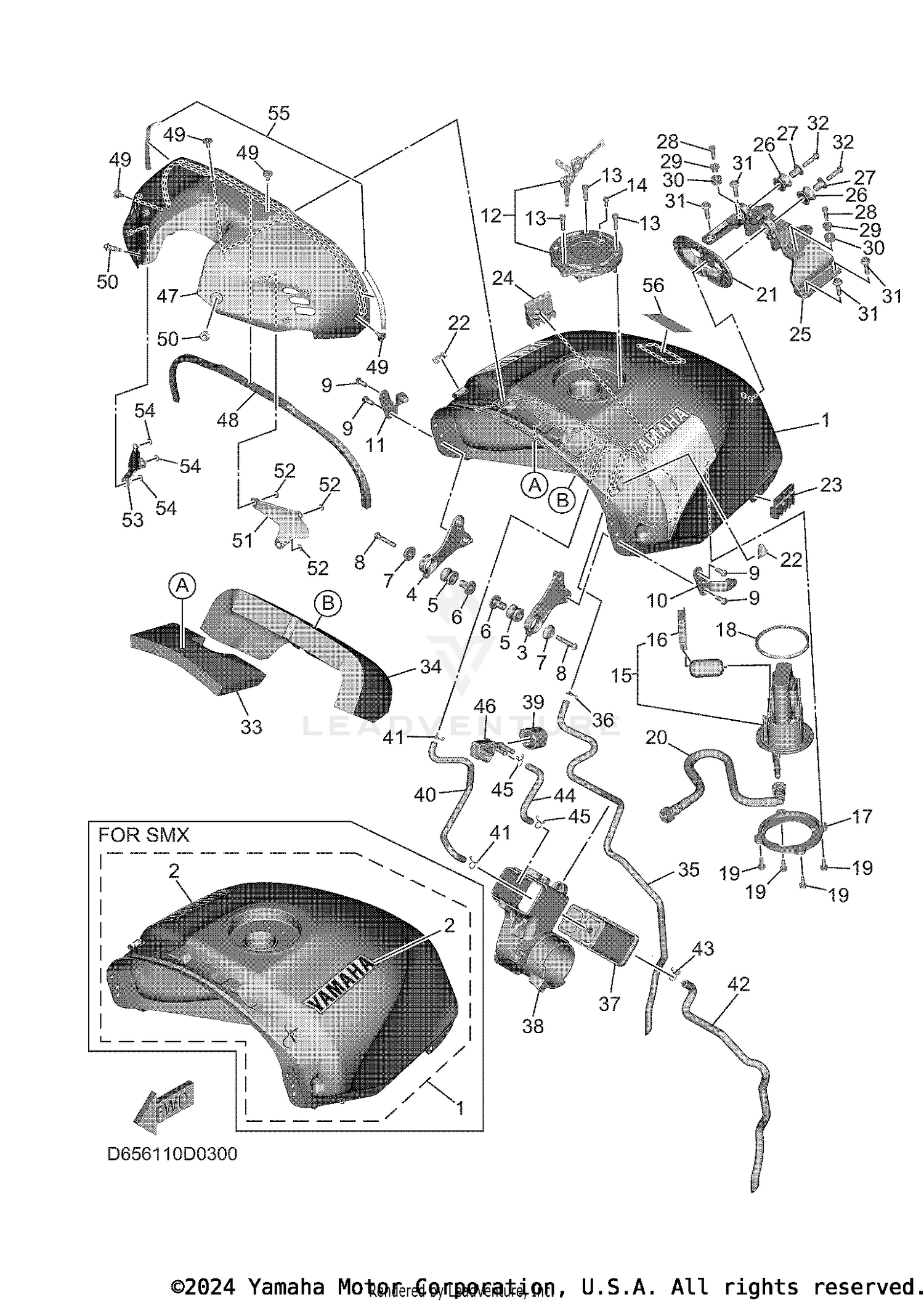

Fuel Tank 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
BEA-Y2410-00-06
|
$902.99 | ||
|
Unavailable |
|||
|
#1
FUEL TANK COMP.
BEA-Y2410-00-09
|
$893.99 | ||
|
Unavailable |
|||
|
#2
EMBLEM, YAMAHA
99225-00140-00
Superseded by 99245-00140-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BRACKET, FUEL TANK 1
BEA-24191-00-00
|
$62.99 | ||
|
Unavailable |
|||
|
#4
BRACKET, FUEL TANK 2
BEA-24192-00-00
|
$62.99 | ||
|
Unavailable |
|||
|
#5
GROMMET
90480-18008-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR
90387-06266-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR
BEA-2412G-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#8
BOLT, BUTTON HEAD
92017-06035-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, BUTTON HEAD
92017-06014-00
|
$4.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
PLATE, FITTING
BEA-2411F-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#11
HOOK TANK FITTING
BEA-2411L-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#12
CAP ASSY
2CR-24602-01-00
|
$245.99 | ||
|
Unavailable |
|||
|
#13
BOLT, HEXAGON SOCKET HEAD
90110-05112-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, HEXAGON SOCKET HEAD
91312-05010-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
FUEL PUMP COMP.
BEA-13907-10-00
|
$277.99 | ||
|
Unavailable |
|||
|
#16
. .SENDER UNIT ASSY, FUEL METER
BEA-85752-00-00
|
$81.99 | ||
|
Unavailable |
|||
|
#17
BRACKET, FUEL PUMP
1RC-24491-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
O-RING
1RC-24486-00-00
|
$33.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BOLT, HEXAGON SOCKET HEAD
90110-05028-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
PIPE, FUEL 1
B7N-13971-00-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
DAMPER, LOCATING 1
BEA-24181-00-00
|
$63.99 | ||
|
Unavailable |
|||
|
#22
DAMPER
BEA-24665-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#23
DAMPER, LOCATING 4
BMG-24184-00-00
|
$18.99 | ||
|
Unavailable |
|||
|
#24
DAMPER, LOCATING 5
BMG-24185-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#25
BRACKET, TANK FITTING
BEA-2413Y-00-00
|
$88.99 | ||
|
Unavailable |
|||
|
#26
GROMMET
3D7-24339-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
COLLAR
90387-06136-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, HEXAGON
97027-05020-00
|
$3.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
COLLAR
90387-05065-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#30
GROMMET
90480-10258-00
|
$2.80 | ||
|
Unavailable |
|||
|
#31
BOLT, HEXAGON SOCKET HEAD
90110-06172-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, BUTTON HEAD
92012-06025-00
|
$3.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
DAMPER, PLATE 2
BMG-2414J-00-00
|
$4.90 | ||
|
Unavailable |
|||
|
#34
DAMPER, PLATE 1
BMG-2414H-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#35
PIPE 5
BME-24315-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#36
CLIP
90467-090A2-00
|
$4.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
CANISTER ASSY
B7N-24170-00-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
DAMPER, LOCATING 3
BME-24183-00-00
|
$67.99 | ||
|
Unavailable |
|||
|
#39
BAND 1
BME-24398-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#40
PIPE 3
BMG-24313-10-00
|
|||
|
Unavailable |
|||
|
#41
CLIP
90467-090A2-00
|
$4.75 | ||
|
Unavailable |
|||
|
#42
PIPE 6
BME-24316-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#43
CLIP
90467-10041-00
Superseded by 90467-100A1-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#44
PIPE 7
BME-24317-10-00
|
$9.49 | ||
|
Unavailable |
|||
|
#45
CLIP
90467-090A2-00
|
$4.75 | ||
|
Unavailable |
|||
|
#46
SOLENOID VALVE ASS
B7N-86120-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
COVER, TOP
BEA-2171A-00-P1
|
$169.99 | ||
|
Unavailable |
|||
|
#47
COVER, TOP
BEA-2171A-00-GE
|
$143.99 | ||
|
Unavailable |
|||
|
#48
DAMPER, PLATE
90520-15021-00
|
$9.49 | ||
|
Unavailable |
|||
|
#49
BOLT
90109-05020-00
|
$3.45 | ||
|
Unavailable |
|||
|
#50
RIVET
90269-07001-00
|
$1.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#51
GRILL, AIR INTAKE 1
BEA-2837N-00-00
|
$43.99 | ||
|
Unavailable |
|||
|
#52
NUT, SPRING
90183-05M02-00
|
$0.50 | ||
|
Available to order. Add to View Price |
|||
|
#53
GRILL, AIR INTAKE 2
BEA-2837R-00-00
|
$43.99 | ||
|
Unavailable |
|||
|
#54
NUT, SPRING
90183-05M02-00
|
$0.50 | ||
|
Unavailable |
|||
|
#55
GRAPHIC SET 1
BEA-24230-20-00
|
$17.49 | ||
|
Unavailable |
|||
|
#56
LABEL, WARNING GENER
29P-2816R-01-00
|
$3.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
