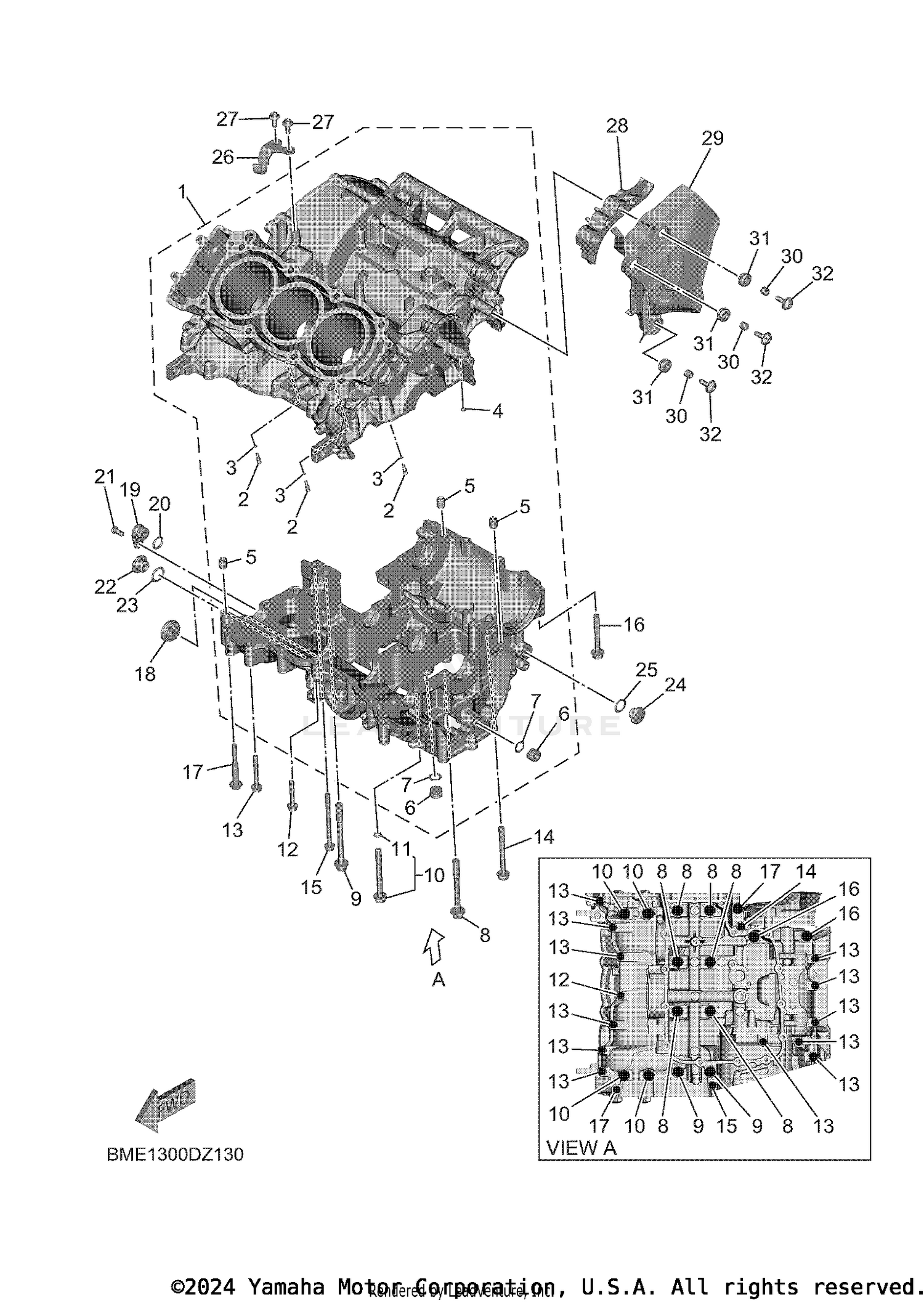

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE ASSY
B7N-15100-39-00
|
$2,647.99 | ||
|
Unavailable |
|||
|
#2
NOZZLE 3
5EB-15155-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
O-RING
93210-04092-00
|
$4.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
NOZZLE 1
B7N-15138-00-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN, DOWEL
99530-10014-00
Superseded by 99530-10114-00
|
$2.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
. .PLUG
BME-15189-00-00
|
$10.49 | ||
|
Unavailable |
|||
|
#7
O-RING
93210-12790-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
BOLT, WITH WASHER
90119-09013-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, WITH WASHER
90119-09010-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, CRANKCASE JOURNAL
23P-15156-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING
93210-07540-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
BOLT, FLANGE
95812-06040-00
Superseded by 95817-06040-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
95812-06050-00
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE
95812-06065-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE
90105-06202-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
95812-08060-00
Superseded by 95817-08060-00
|
$4.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BOLT
90109-06100-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
GAUGE, LEVEL
2H7-15361-00-00
|
$105.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
JOINT
2CR-15319-02-00
|
$32.99 | ||
|
Unavailable |
|||
|
#20
O-RING
93210-13657-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW
90149-06068-00
|
$4.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
PLUG
36Y-15189-01-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-RING
93210-16325-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
PLUG, STRAIGHT SCREW
90340-14011-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
O-RING
93210-14369-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
HOLDER, CLUTCH CAB
B7N-15441-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, HEXAGON SOCKET HEAD
90110-06431-00
Superseded by 90110-06107-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#28
GUIDE, INLET
B7N-15377-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
COVER, CHAIN CASE
BME-15418-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#30
COLLAR
90387-06286-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#31
GROMMET
90480-13018-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLTHEX. SOCKET BUTTON
90111-06188-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
