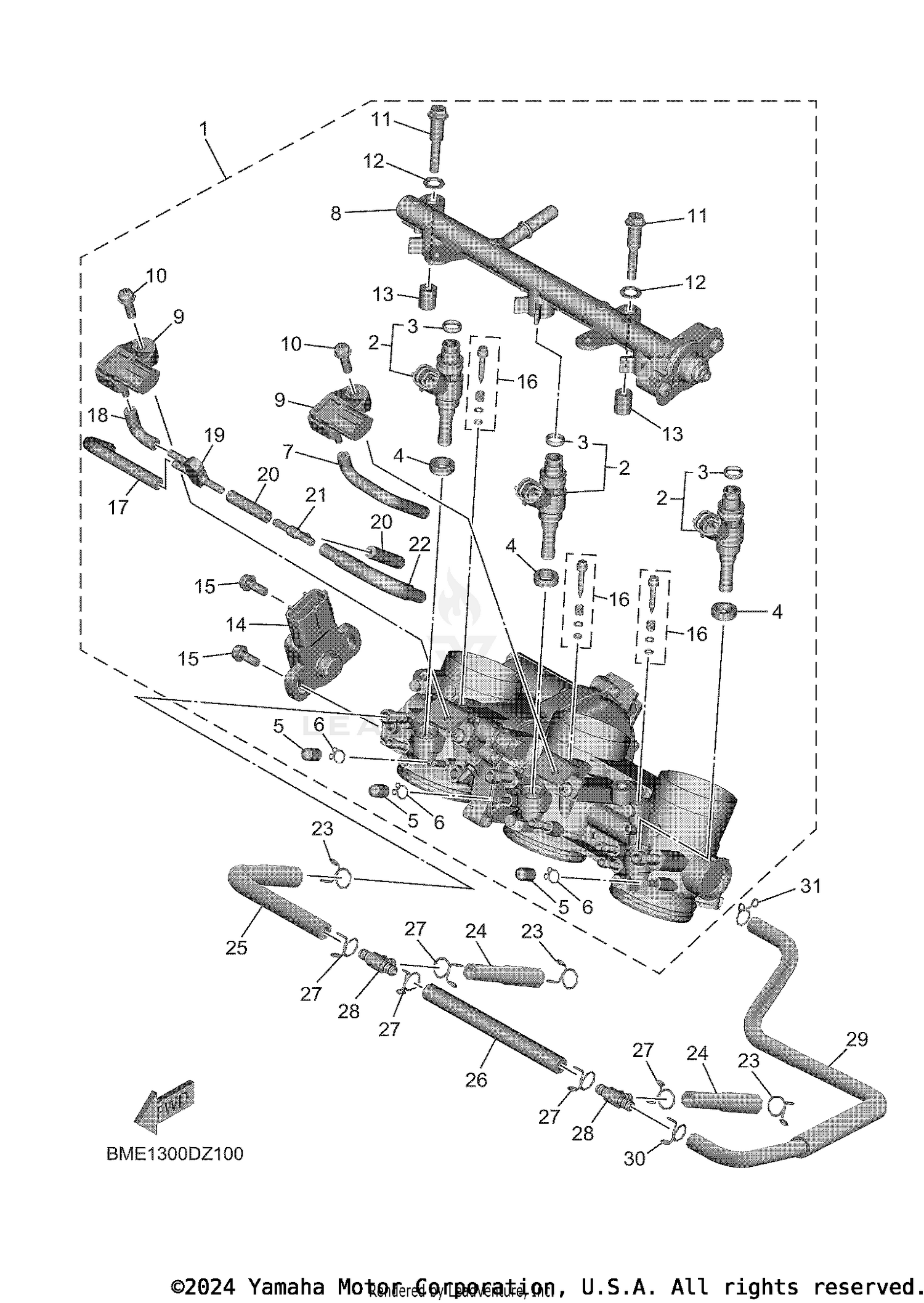

Intake 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
THROTTLE BODY ASSY
BME-13750-00-00
|
$1,317.99 | ||
|
Unavailable |
|||
|
#2
INJECTOR
B7N-13761-00-00
|
$98.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
O-RING
5PS-14147-00-00
|
$14.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
RUBBER, INJECTOR
8FP-13556-00-00
|
$15.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
CAP
895-14169-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLIP, PIPE
8A7-14139-00-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
HOSE, VACUUM SENSING 4
68V-13533-00-00
|
$11.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
PIPE INLET ASSEMBL
B7N-13930-00-00
|
$250.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SENSOR, PRESSURE
1WS-82380-00-00
|
$209.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
SCREW
2C0-14216-00-00
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT 1
8HG-13573-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER
8GL-13571-00-00
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR
8HG-14534-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
. .THROTTLE SENSOR ASSY
B3L-85885-01-00
|
$118.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
SCREW
8CC-14216-10-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
PILOT SCREW SET
2C0-14105-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIPE 1
5FL-14348-00-00
|
$21.40 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIPE
8FP-14349-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
NIPPLE
3XV-14251-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIPE 1
5FL-14348-10-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIPE, JOINT 1
68V-24376-00-00
|
$18.35 | ||
|
Available to order. Add to View Price |
|||
|
#22
HOSE, VACUUM SENSI
B7N-13542-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLIP
90467-11106-00
|
$4.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
PIPE
BME-14465-10-00
|
$6.49 | ||
|
Unavailable |
|||
|
#25
PIPE
BME-14466-10-00
|
$8.49 | ||
|
Unavailable |
|||
|
#26
HOSE
90445-10041-00
Superseded by 90445-10829-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLIP
90467-100A1-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
WAY 3
90413-06031-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
PIPE
BME-1443J-10-00
|
$19.49 | ||
|
Unavailable |
|||
|
#30
CLIP
90467-09103-00
Superseded by 90467-090A2-00
|
$4.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
CLIP
90467-090A2-00
|
$4.75 | ||
|
Unavailable |
|||
