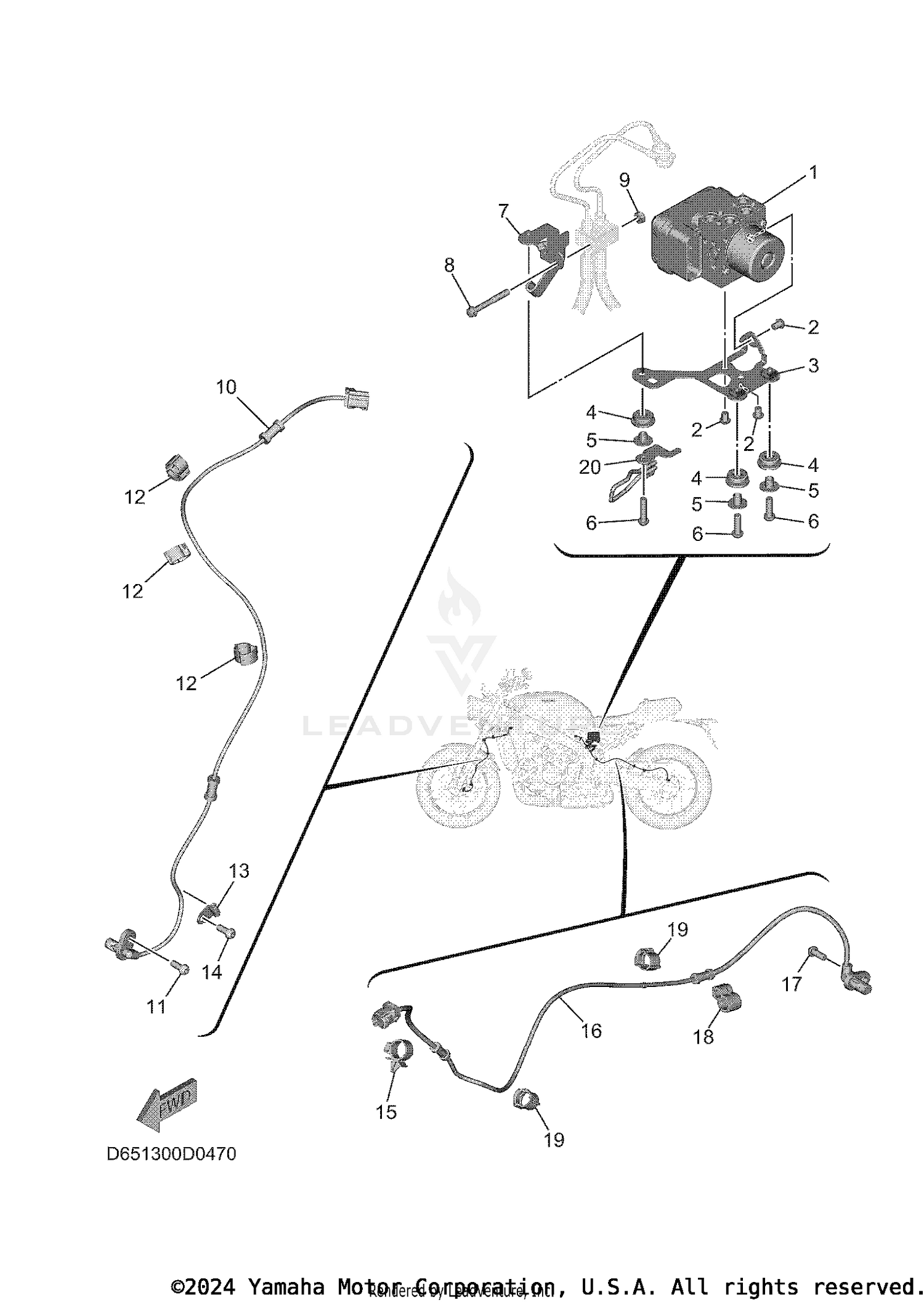

Electrical 3 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HYDRAULIC UNIT ASSY
BME-85930-08-00
|
$1,021.99 | ||
|
Unavailable |
|||
|
#2
BOLT, HEXAGON SOCK
90111-06204-00
|
$1.55 | ||
|
Unavailable |
|||
|
#3
BRACKET, UNIT
BMG-85991-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#4
GROMMET
90480-13567-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR
90387-06160-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, BUTTON HEAD
92012-06025-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET
BMG-85542-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#8
BOLT, FLANGE
95027-06045-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, U
95607-06100-00
Superseded by 95617-06100-00
|
$2.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
WHEEL SENSOR ASSY, FRONT
BME-85970-00-00
|
$113.99 | ||
|
Unavailable |
|||
|
#11
BOLT, BUTTON HEAD
92017-06014-00
|
$4.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
CLAMP
90464-14010-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOLDER, CABLE
2CR-23317-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, BUTTON HEAD
92017-06014-00
|
$4.60 | ||
|
Unavailable |
|||
|
#15
CLAMP
90464-16006-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WHEEL SENSOR ASSY, REAR
BMG-85980-00-00
|
$103.99 | ||
|
Unavailable |
|||
|
#17
BOLT, BUTTON HEAD
92014-06014-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLAMP
90464-10233-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
CLAMP
90464-14010-00
|
$3.65 | ||
|
Unavailable |
|||
|
#20
BRACKET, CABLE
BMG-85824-00-00
|
$19.49 | ||
|
Unavailable |
|||
