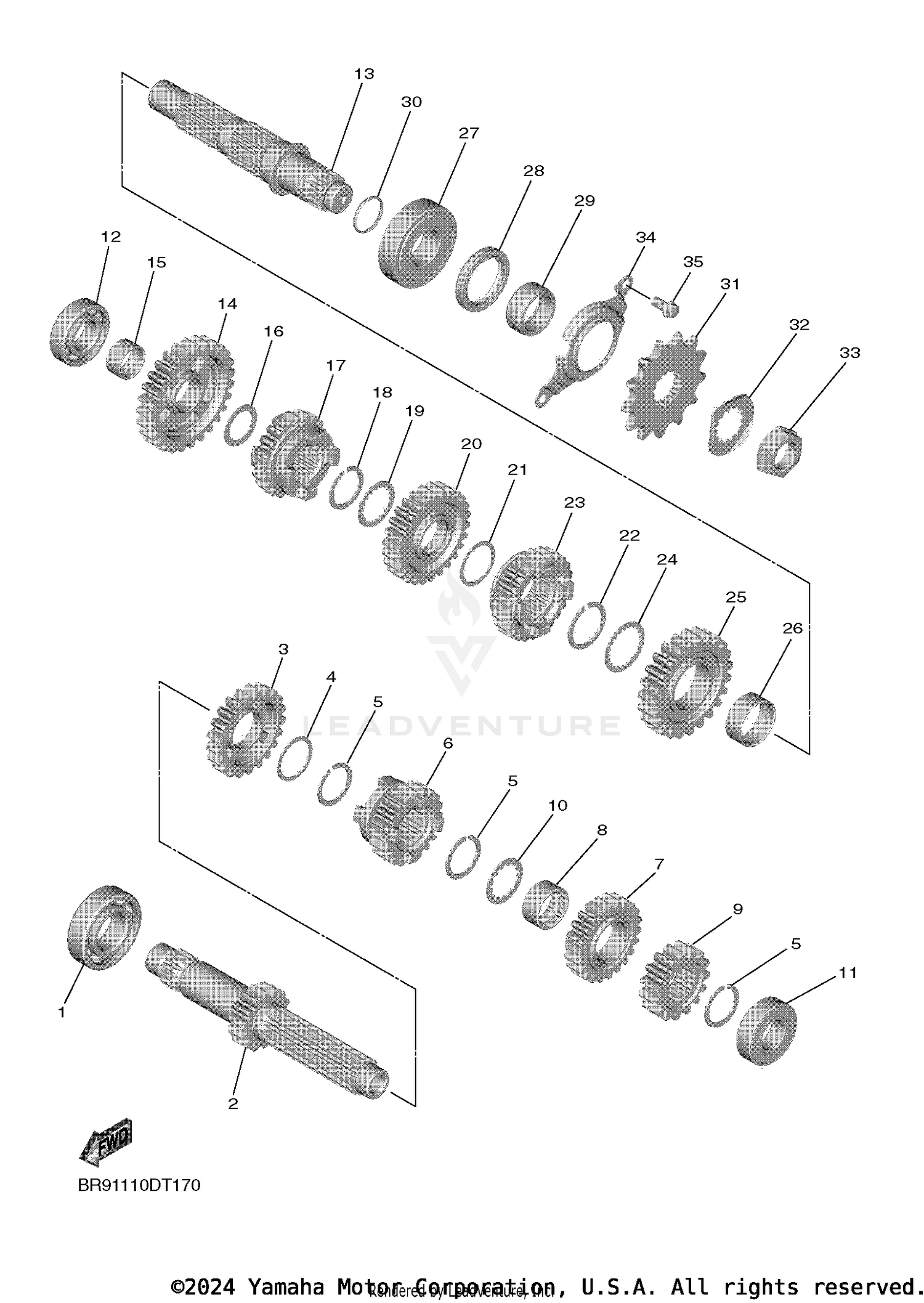

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BEARING
93306-20532-00
|
$72.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
AXLE, MAIN
B3J-17411-00-00
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, 5TH PINION
5TJ-17151-21-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE (T=1.0)
90201-253K0-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CIRCLIP
93440-25084-00
|
$4.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
GEAR, 3RD PINION
BEX-17131-00-00
|
$207.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
GEAR, 4TH PINION
5TJ-17141-30-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR
90387-21005-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR, 2ND PINION
5TJ-17121-30-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER
90209-21332-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING
93306-00447-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING
93306-00426-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
DRIVE AXLE ASSY
BR9-17402-00-00
|
$170.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
GEAR, 1ST WHEEL (29T)
5TJ-17211-20-00
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR
90387-20028-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
90201-203E7-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
GEAR, 5TH WHEEL
B3J-17251-00-00
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
CIRCLIP
93440-25084-00
|
$4.45 | ||
|
Unavailable |
|||
|
#19
WASHER
90209-22008-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
GEAR, 3RD WHEEL
B3J-17231-10-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE (T=1.0)
90201-253K0-00
|
$9.49 | ||
|
Unavailable |
|||
|
#22
CIRCLIP
93440-28062-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
GEAR, 4TH WHEEL
B3J-17241-10-00
|
$143.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER
90209-26348-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
GEAR, 2ND WHEEL
5TJ-17221-30-00
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
COLLAR
90387-28012-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BEARING
93306-205A5-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
OIL SEAL
93102-32014-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
COLLAR
90387-25037-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
O-RING
93210-22164-00
Superseded by 93210-22298-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
SPROCKET, DRIVE (13T)
9383E-13233-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, LOCK
90215-21003-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
NUT
90179-20001-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
PLATE, COVER
1SL-17471-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, FLANGE DEEP RECESS
90105-06226-00
Superseded by 95E32-06012-00
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
