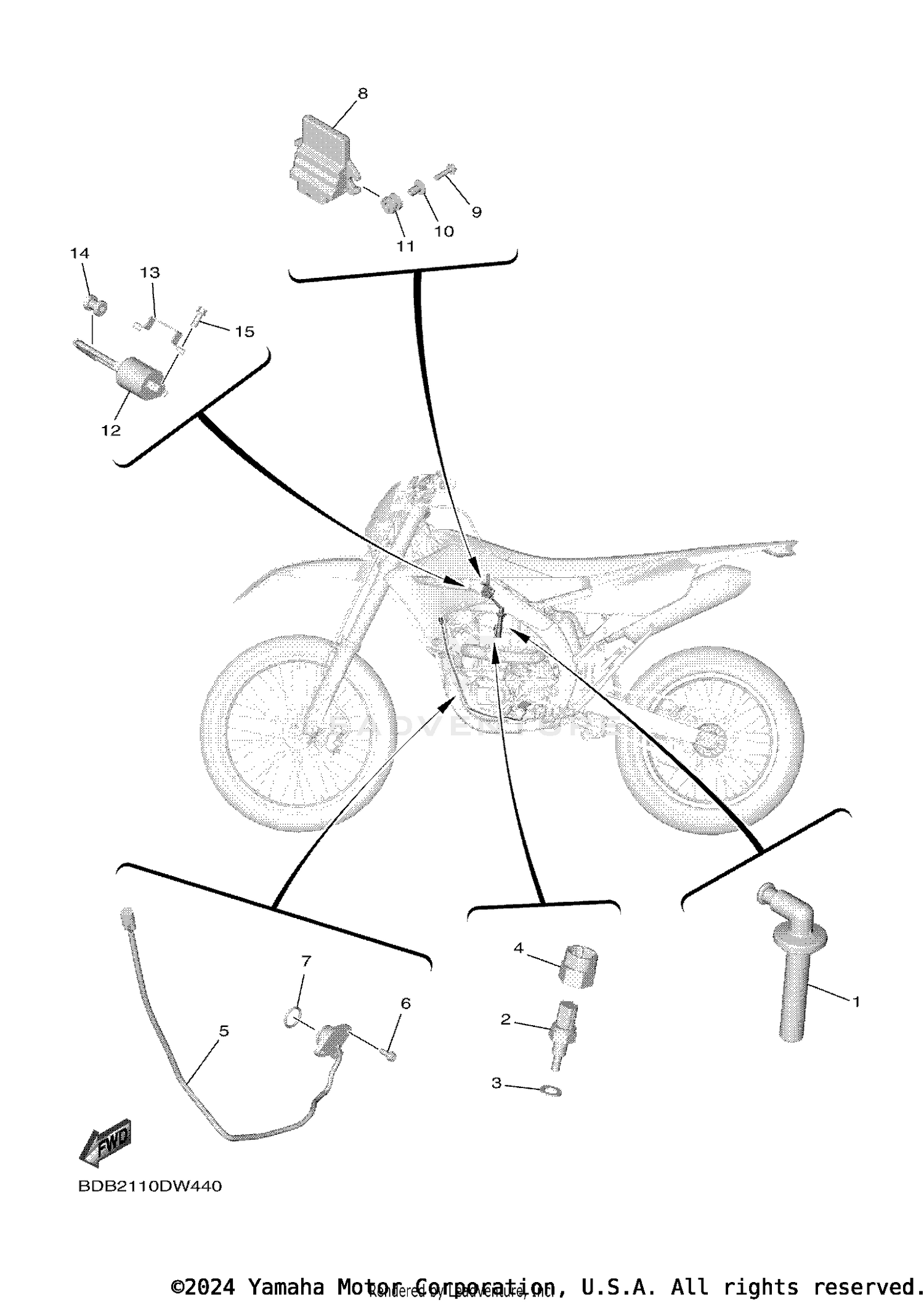

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PLUG CAP ASSY
B2W-82370-00-00
|
$150.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
THERMO UNIT
4P9-83591-00-00
Superseded by 52B-H3591-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET
90430-10004-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOLDER, LEVER UNDER
B2W-82915-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
NEUTRAL SWITCH ASSY
B11-82540-00-00
Superseded by B11-82540-01-00
|
$65.99 | ||
|
Unavailable |
|||
|
#6
BOLT, HEXAGON SOCKET HEAD
90110-05062-00
Superseded by 90110-05028-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
O-RING
93210-21001-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
ENGINE CONTROL UNIT ASSY
BDB-8591A-10-00
|
$432.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE
90105-05005-00
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR
90387-05048-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
GROMMET
90480-13029-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
IGNITION COIL ASSY
BR9-82310-02-00
Superseded by BR9-82310-03-00
|
$58.99 | ||
|
Unavailable |
|||
|
#13
CORE, SIDE
BR9-8231U-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
GROMMET
90480-11015-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE DEEP RECESS
95E32-06016-00
|
$0.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
