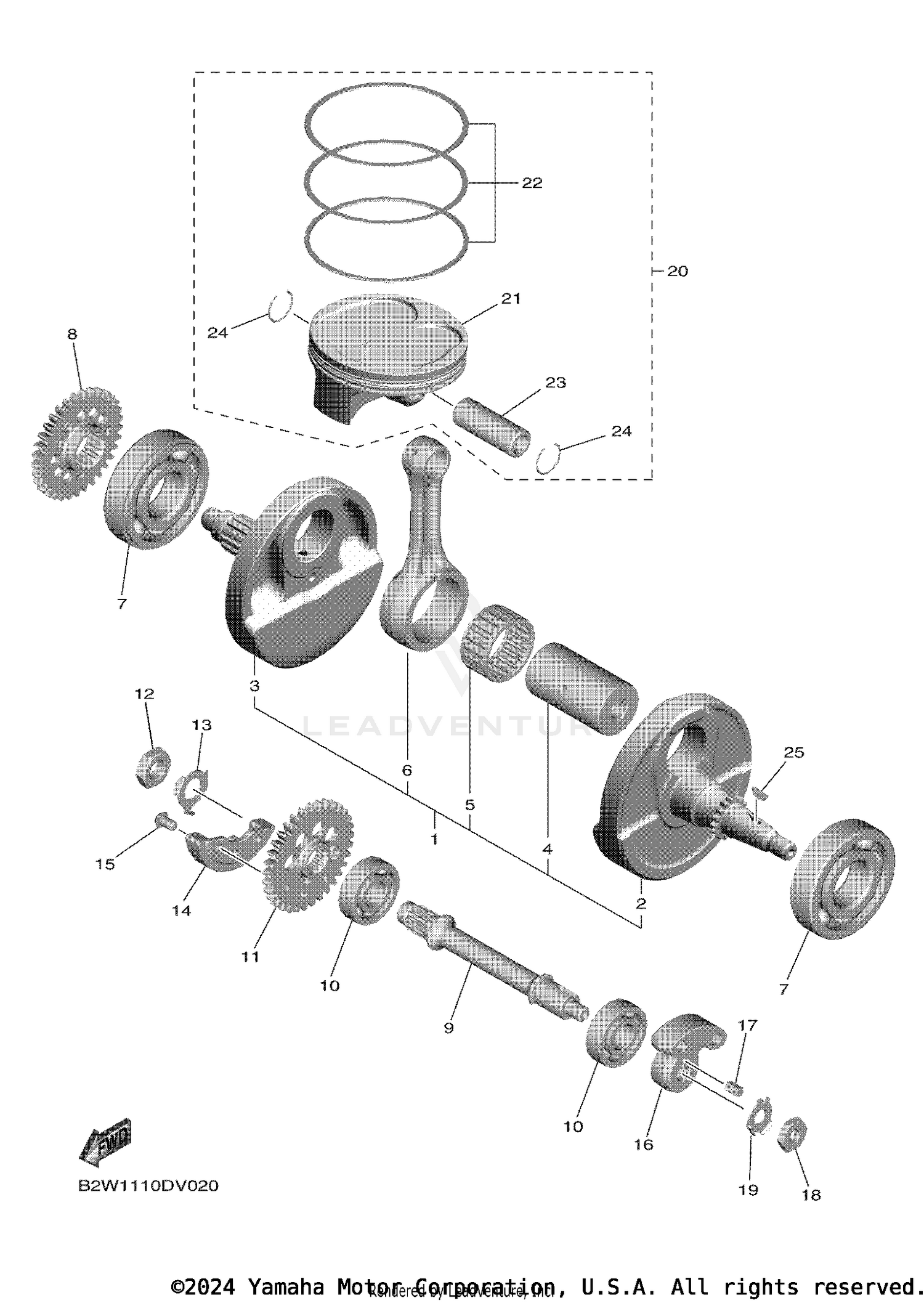

Crankshaft Piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT ASSY
BDB-11400-00-00
|
$642.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CRANK 1
BR9-11412-10-00
|
$270.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CRANK 2
BR9-11422-00-00
|
$300.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, CRANK 1
5TG-11681-01-00
|
$90.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
BEARING
93310-63499-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
ROD, CONNECTING
B2W-11651-10-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING
93306-30633-00
|
$110.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, DRIVE
2S2-11536-00-00
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHAFT 1
BR9-11455-00-00
|
$194.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING
93306-20335-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GEAR, BALANCE WEIGHT
2S2-11531-10-00
|
$185.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
90170-14171-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
WASHER, LOCK
90215-14287-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
WEIGHT 1
33D-11454-00-00
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW
90149-06193-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#16
WEIGHT 2
33D-11464-00-00
|
$95.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
KEY, STRAIGHT
90282-05034-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
90170-10013-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, LOCK
90215-10009-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
PISTON ASSY
B2W-116A0-00-00
|
$178.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
PISTON (STD)
B2W-11631-00-00
|
$126.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
PISTON RING SET (S
B2W-11603-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIN, PISTON
BR9-11633-00-00
Superseded by BR9-11633-10-00
|
$69.99 | ||
|
Unavailable |
|||
|
#24
CIRCLIP, INNER
93450-19052-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
KEY, WOODRUFF
90280-03006-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
