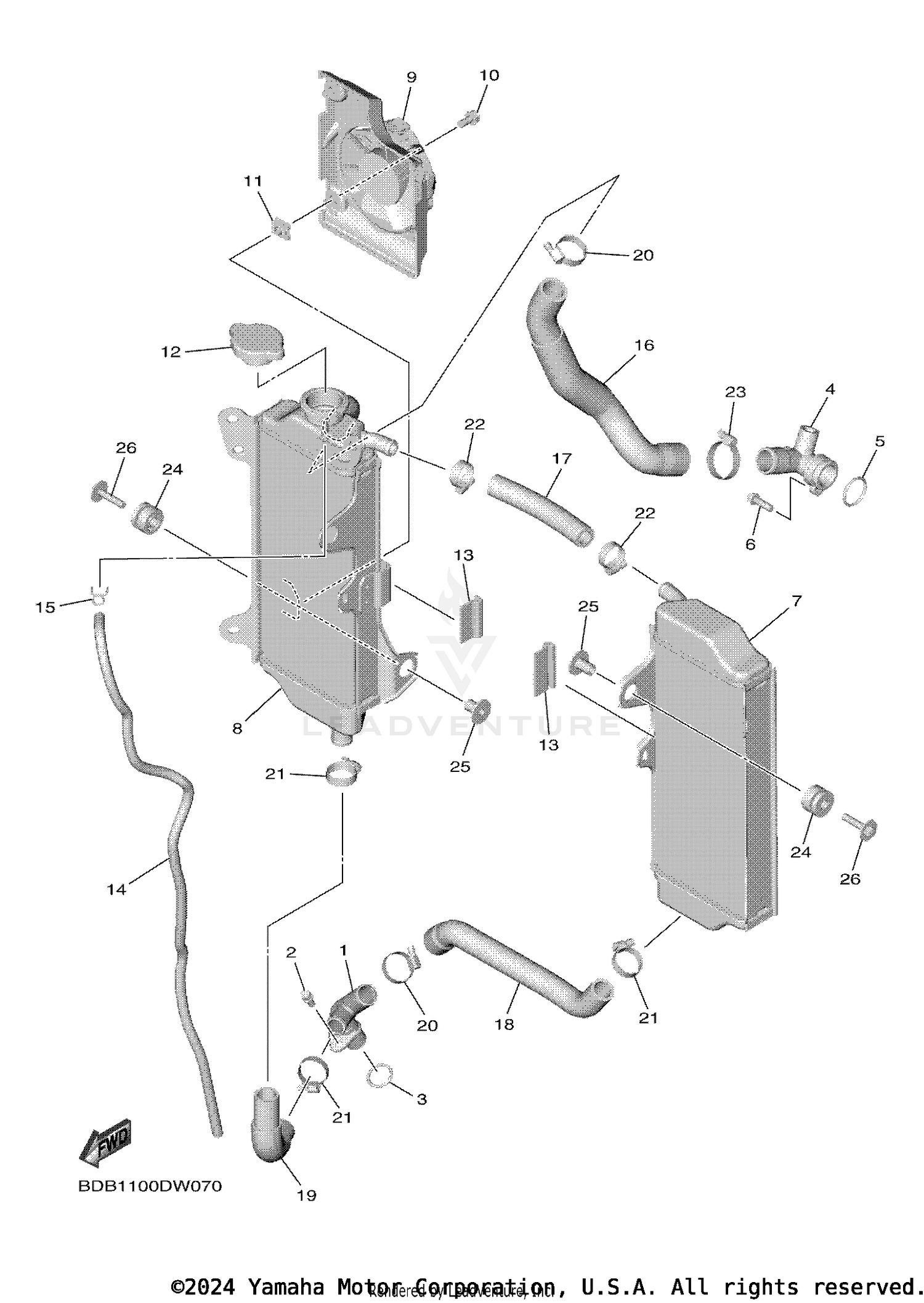

Radiator Hose Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE 2
BR9-12482-00-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, FLANGE DEEP RECESS
95E32-06012-00
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#3
O-RING
93210-16500-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
JOINT
B2W-12446-00-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
O-RING
93210-24253-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE DEEP RE
95E32-06020-00
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#7
RADIATOR ASSY
BR9-1240A-00-00
|
$253.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
RADIATOR COMP
B3J-12461-00-00
|
$299.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BLOWER ASSY
B3J-12405-00-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
2GB-12615-00-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT 1
5SL-12671-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
CAP, RADIATOR
5SL-12462-00-00
Superseded by 5SL-12462-01-00
|
$35.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
DAMPER, RADIATOR
33D-12465-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
TUBE, FLEXIBLE VINYL
91A20-05065-00
Superseded by 91A20-05080-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLIP
90467-090A2-00
|
$4.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
HOSE 1
B3J-12576-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOSE 2
BR9-12577-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOSE 3
BR9-12578-00-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOSE 4
B3J-12579-00-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
HOSE CLAMP ASSY
90450-28001-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOSE CLAMP ASSY
90450-25001-00
Superseded by 90450-22M14-00
|
$16.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
HOSE CLAMP ASSY
90450-22001-00
Superseded by 90450-18M09-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
HOSE CLAMP ASSY
90450-32003-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
GROMMET
90480-15012-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
COLLAR
90387-06065-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, WITH WASHER
90119-06262-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
