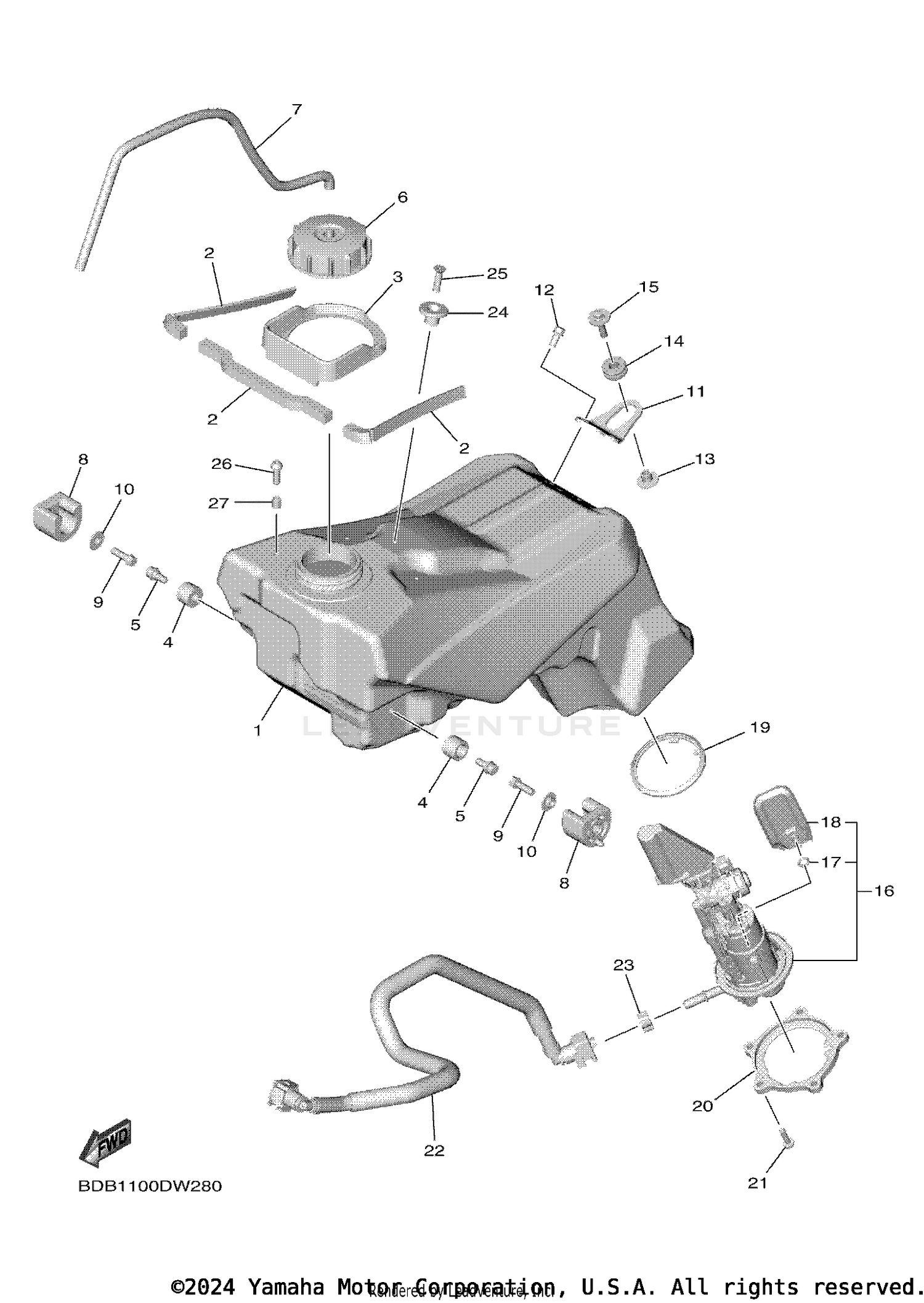

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
B7R-24110-11-00
|
$1,142.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
DAMPER, PLATE 6
2D1-2414R-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
MOLD, FUEL TANK
BR9-24188-01-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOSS
B3J-2417G-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, HEXAGON SOCKET HEAD
91312-06016-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
CAP ASSY
BR9-24610-00-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOSE (L580)
90445-09008-00
Superseded by 90445-098B3-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRACKET, FUEL TANK 1
BR9-24191-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE DEEP RE
95E32-06020-00
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR
90387-06170-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOLDER
BR9-2419A-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE DEEP RECESS
95E32-06012-00
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR
90387-066Y6-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
GROMMET
90480-10289-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, WITH WASHER
90119-06271-00
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#16
FUEL PUMP COMP.
B3J-13907-01-00
Superseded by B3J-13907-02-00
|
$454.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
GASKET
3C1-24512-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
. .FILTER
B3J-13915-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SEAL
B3J-2414G-00-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BRACKET, FUEL PUMP
B3J-24491-00-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, HEXAGON SOCKET HEAD
90110-05058-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIPE, FUEL 1
B3J-13971-01-00
Superseded by B3J-13971-02-00
|
$96.99 | ||
|
Unavailable |
|||
|
#23
CLAMP 1
33D-24135-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BRACKET, SEAT
4EW-2412F-00-00
|
$15.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
SCREW, COUNTERSUNK
90151-06005-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
BOLT, HEX. SOCKET BUTTON
90111-06171-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#27
COLLAR
90387-06284-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
