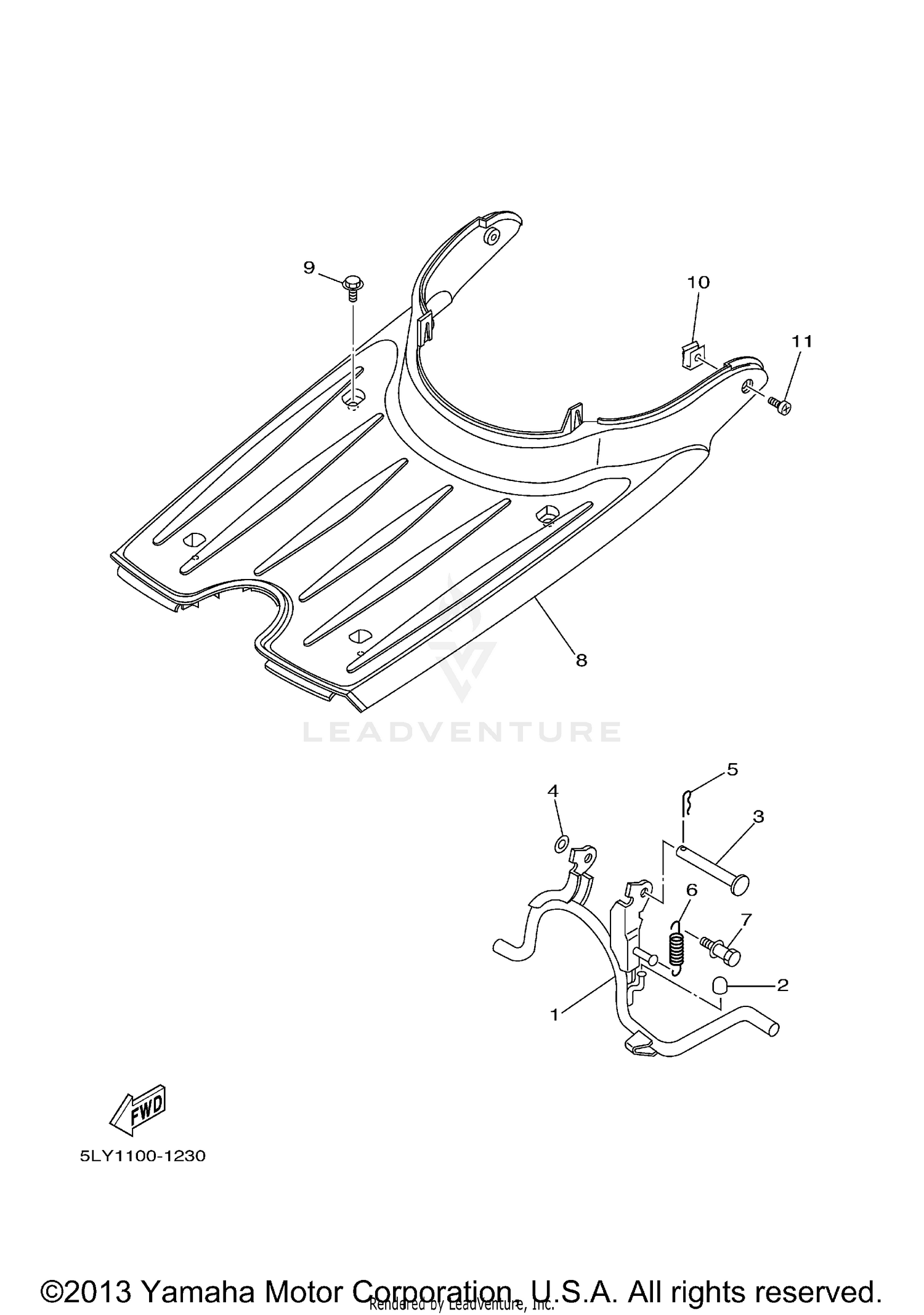

Stand. Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAND, MAIN
5GD-27111-00-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
STOPPER, MAIN STAND
3VR-27114-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, CLEVIS
90240-10137-00
|
$4.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
WASHER, PLATE
90202-10120-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
CLIP
90468-12006-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
SPRING, TENSION
90506-32513-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOOK
5BM-27254-10-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOARD, FOOTREST
5AU-27481-02-00
|
$85.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, WITH WASHER
90119-06060-00
Superseded by 90119-06226-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, SPRING
90183-05042-00
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
SCREW, TAPPING
97780-50012-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
