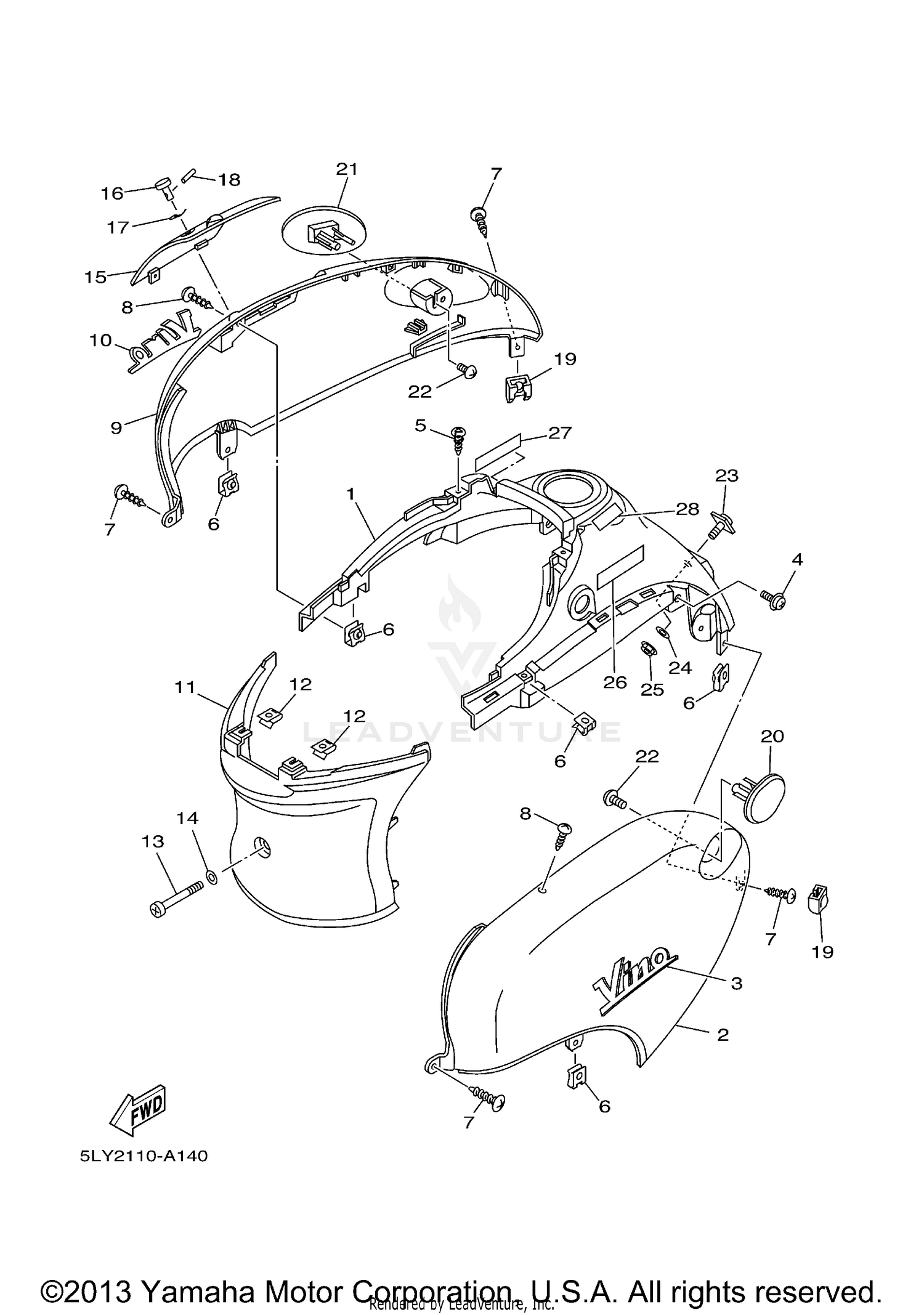

Side Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, SIDE 1
5LY-21711-00-00
Superseded by 5LY-21711-01-00
|
$128.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, SIDE 2
5AU-21721-00-P2
|
$121.99 | ||
|
Available to order. Add to View Price |
|||
|
#
COVER, SIDE 2
5AU-21721-00-P6
|
$121.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
EMBLEM 1
5AU-21781-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, WITH WASHER
90159-06078-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
SCREW, TAPPING
90163-05006-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, SPRING
90183-05042-00
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, TRUSS HEAD TAPPING
97707-50012-00
|
$4.63 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
SCREW, TRUSS HEAD TAPPING
97707-50016-00
|
$1.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
COVER, SIDE 3
5AU-21731-02-P0
|
$198.99 | ||
|
Available to order. Add to View Price |
|||
|
#
COVER, SIDE 3
5AU-21731-02-P6
|
$168.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
EMBLEM 2
5AU-21782-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER, SIDE 4
5AU-21741-00-00
|
$96.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, SPRING
90183-05042-00
|
$1.00 | ||
|
Unavailable |
|||
|
#13
SCREW, PAN HEAD
98504-06070-00
Superseded by 98580-06570-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
92903-06600-00
Superseded by 92990-06600-00
|
$2.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
LID, SIDE COVER
5AU-21716-00-P2
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#
LID, SIDE COVER
5AU-21716-00-P6
|
$16.49 | ||
|
Unavailable |
|||
|
#16
PIN
90249-06191-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, WAVE
90206-06090-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
PIN, SPRING
91690-25012-00
|
$1.80 | ||
|
Available to order. Add to View Price |
|||
|
#19
CAP
5AU-21875-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
PANEL 2
5LY-2172F-00-P2
|
$16.49 | ||
|
Unavailable |
|||
|
#
PANEL 2
5LY-2172F-00-P1
|
$16.49 | ||
|
Unavailable |
|||
|
#21
PANEL 3
5LY-2172G-00-P2
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#
PANEL 3
5LY-2172G-00-P1
|
$15.99 | ||
|
Unavailable |
|||
|
#22
SCREW, TRUSS HEAD TAPPING
97707-50012-00
|
$4.63 | ||
|
Unavailable |
|||
|
#23
BOLT, SIDE COVER
5LY-21712-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#24
WASHER
90209-04008-00
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, U FLANGE
95607-05200-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
LABEL, CAUTION
3JJ-28446-A0-00
Superseded by 3JJ-28446-A2-00
|
$4.95 | ||
|
Unavailable |
|||
|
#27
LABEL, TIRE
5LY-21668-A0-00
|
$2.95 | ||
|
Unavailable |
|||
|
#28
LABEL 1
5LY-24875-00-00
|
$2.60 | ||
|
Unavailable |
|||
