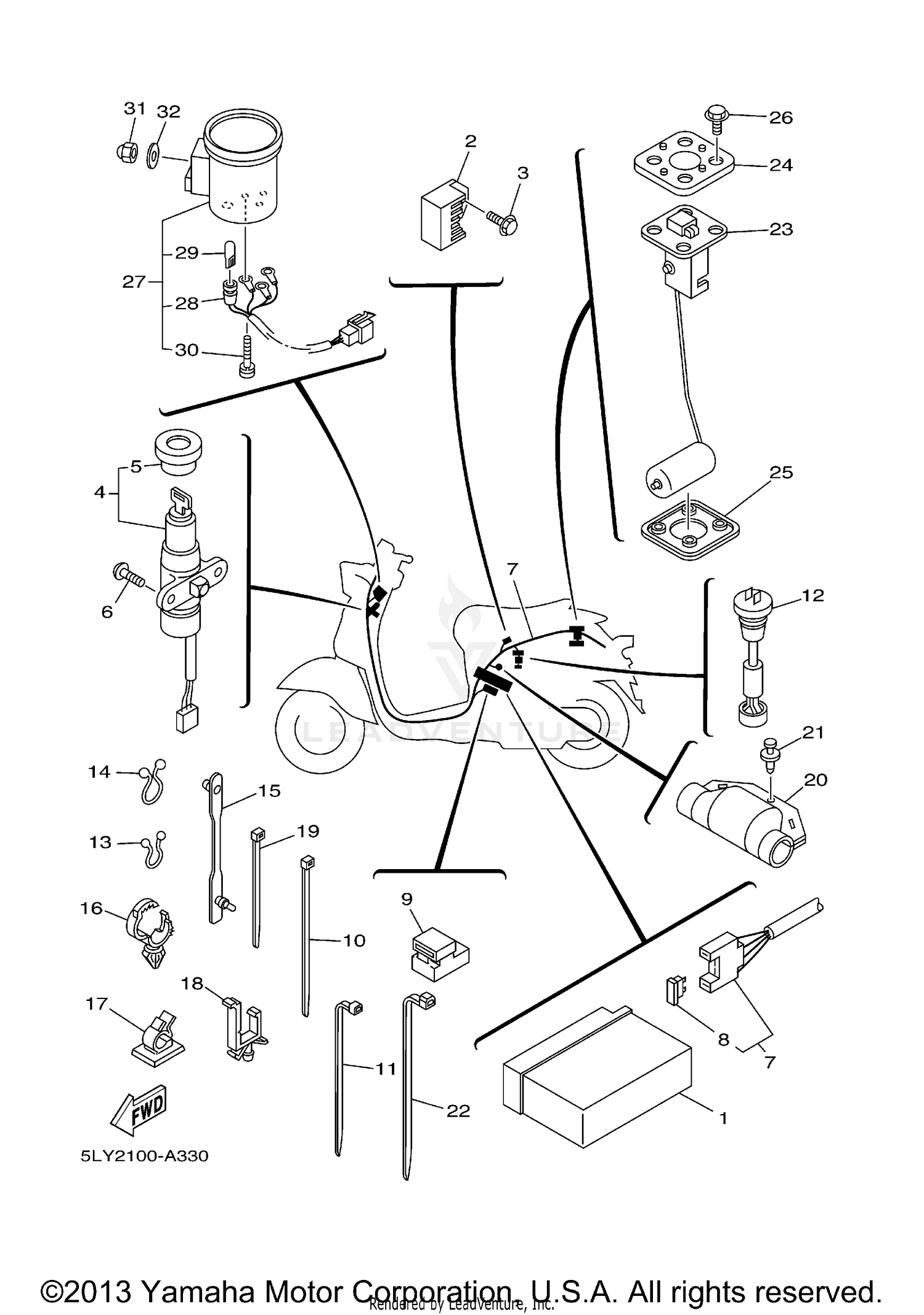

Electrical 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GT4B5 GS BATTERY -
4JS-82100-01-00
Superseded by GT4-B5000-00-00
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
RECTIFIER & REGULATOR ASSY
3LA-81960-01-00
|
$219.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, FLANGE
95027-06012-00
|
$4.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
MAIN SWITCH STEERING LOCK
5LY-82501-00-00
|
$149.99 | ||
|
Unavailable |
|||
|
#5
CAP, SWITCH
5AU-82552-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW
90149-06250-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WIRE HARNESS ASSY
5LY-82590-00-00
|
$193.99 | ||
|
Unavailable |
|||
|
#8
FUSE (7.5A-BL)
3YJ-82151-00-00
Superseded by 2KW-82151-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
RELAY ASSY (29U-93)
27V-81940-02-00
Superseded by 29U-81950-93-00
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BAND
90465-13152-00
Superseded by 1UA-82591-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP, HOSE
90460-15126-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
OIL LEVEL GAUGE ASSY
53L-85720-02-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP
90465-18147-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP
90464-16039-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP
90464-07121-00
|
$1.95 | ||
|
Unavailable |
|||
|
#16
CLAMP
90464-20181-00
|
$4.72 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLAMP
90464-25160-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLAMP
90464-16021-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLAMP 1
5Y9-12491-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
COVER
5KN-8252U-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
RIVET
90269-06081-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
CLAMP
90464-15195-00
|
$4.41 | ||
|
Available to order. Add to View Price |
|||
|
#23
SENDER UNIT ASSY, FUEL METER
4JP-85752-10-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
RETAINER
2JG-85757-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
GASKET, SENDER UNIT
4US-85753-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, WITH WASHER
90119-05071-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
FUEL METER ASSY
5AU-85750-10-00
|
$83.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
SOCKET CORD ASSY
5AU-83509-10-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
BULB (12V-1.4W, T6.5)
4NK-83517-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW, WITH WASHER
90159-03102-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#31
NUT, CROWN
90176-06055-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
WASHER, PLATE
90201-06557-00
|
$3.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
