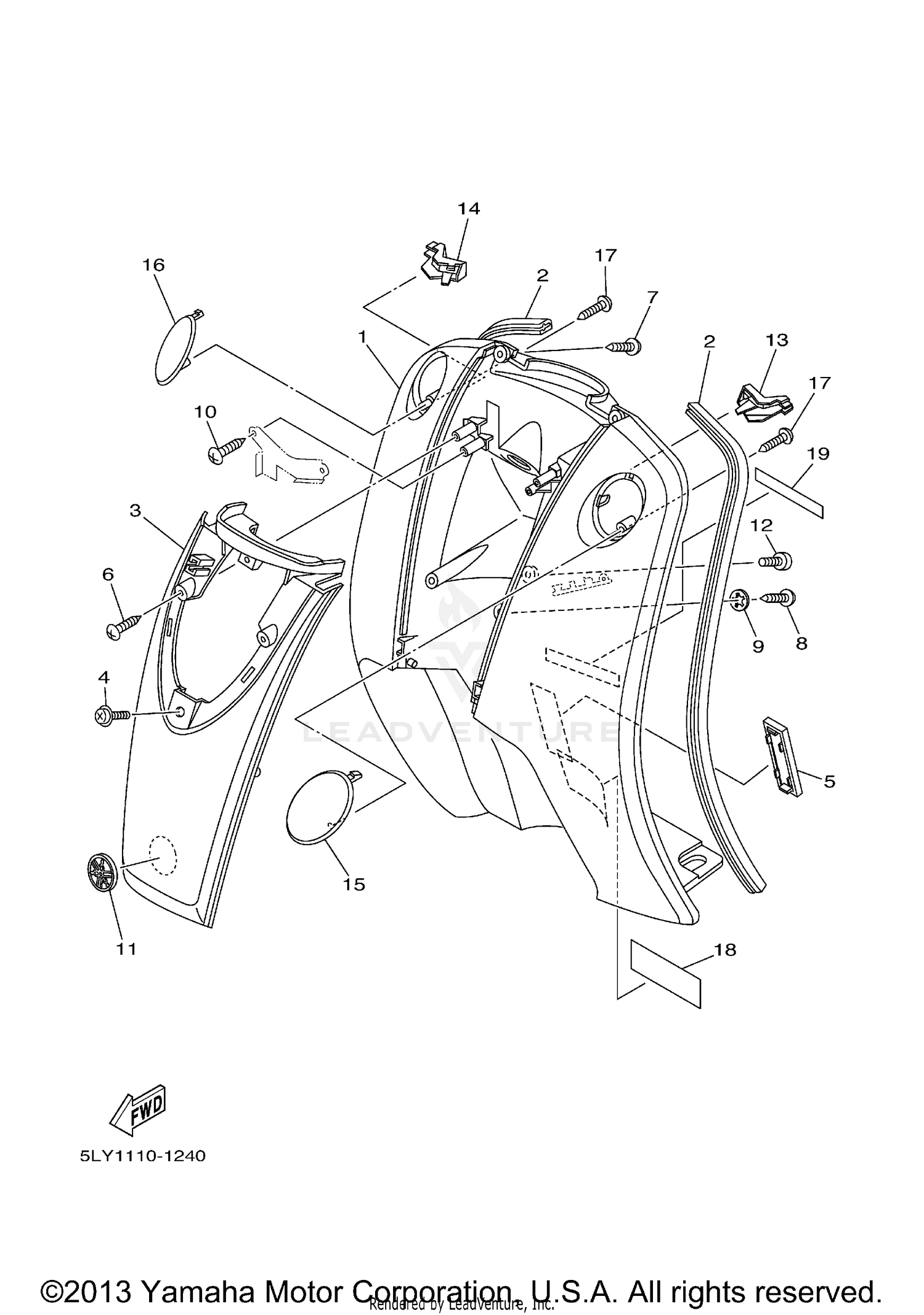

Leg Shield Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LEG SHIELD 1
5AU-28311-01-P2
|
$313.99 | ||
|
Available to order. Add to View Price |
|||
|
#
LEG SHIELD 1
5AU-28311-01-P4
|
$391.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
MOLE 1
5AU-28345-01-00
Superseded by 5AU-28345-09-00
|
$125.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PANEL, FRONT
5LY-23391-00-P2
|
$233.99 | ||
|
Unavailable |
|||
|
#
PANEL, FRONT
5LY-23391-00-P1
|
$240.99 | ||
|
Unavailable |
|||
|
#4
SCREW, WITH WASHER
90159-06178-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP
14T-28349-J0-00
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#
CAP
14T-28349-F0-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, TRUSS HEAD TAPPING
97707-50016-00
|
$1.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
SCREW, TRUSS HEAD TAPPING
97707-50016-00
|
$1.85 | ||
|
Unavailable |
|||
|
#8
SCREW, TRUSS HEAD TAPPING
97707-50012-00
|
$4.63 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
WASHER
90209-05347-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, TRUSS HEAD TAPPING
97707-50016-00
|
$1.85 | ||
|
Unavailable |
|||
|
#11
EMBLEM (TUNING FORK MARK)
5AU-2157B-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, BIND
98904-06012-00
Superseded by 98980-06012-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
COVER 1
5AU-2842M-00-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER 2
5AU-2842N-00-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER 1
5LY-2842M-00-P2
|
$27.99 | ||
|
Unavailable |
|||
|
#
COVER 1
5LY-2842M-00-P1
|
$27.99 | ||
|
Unavailable |
|||
|
#16
COVER 2
5LY-2842N-00-P2
|
$28.99 | ||
|
Unavailable |
|||
|
#
COVER 2
5LY-2842N-00-P1
|
$28.99 | ||
|
Unavailable |
|||
|
#17
SCREW, TRUSS HEAD TAPPING
97707-50012-00
|
$4.63 | ||
|
Unavailable |
|||
|
#18
LABEL, CAUTION
3SL-2118K-A0-00
|
$5.49 | ||
|
Unavailable |
|||
|
#19
PLATE, EPA
5LY-2179X-10-00
|
$6.99 | ||
|
Unavailable |
|||
