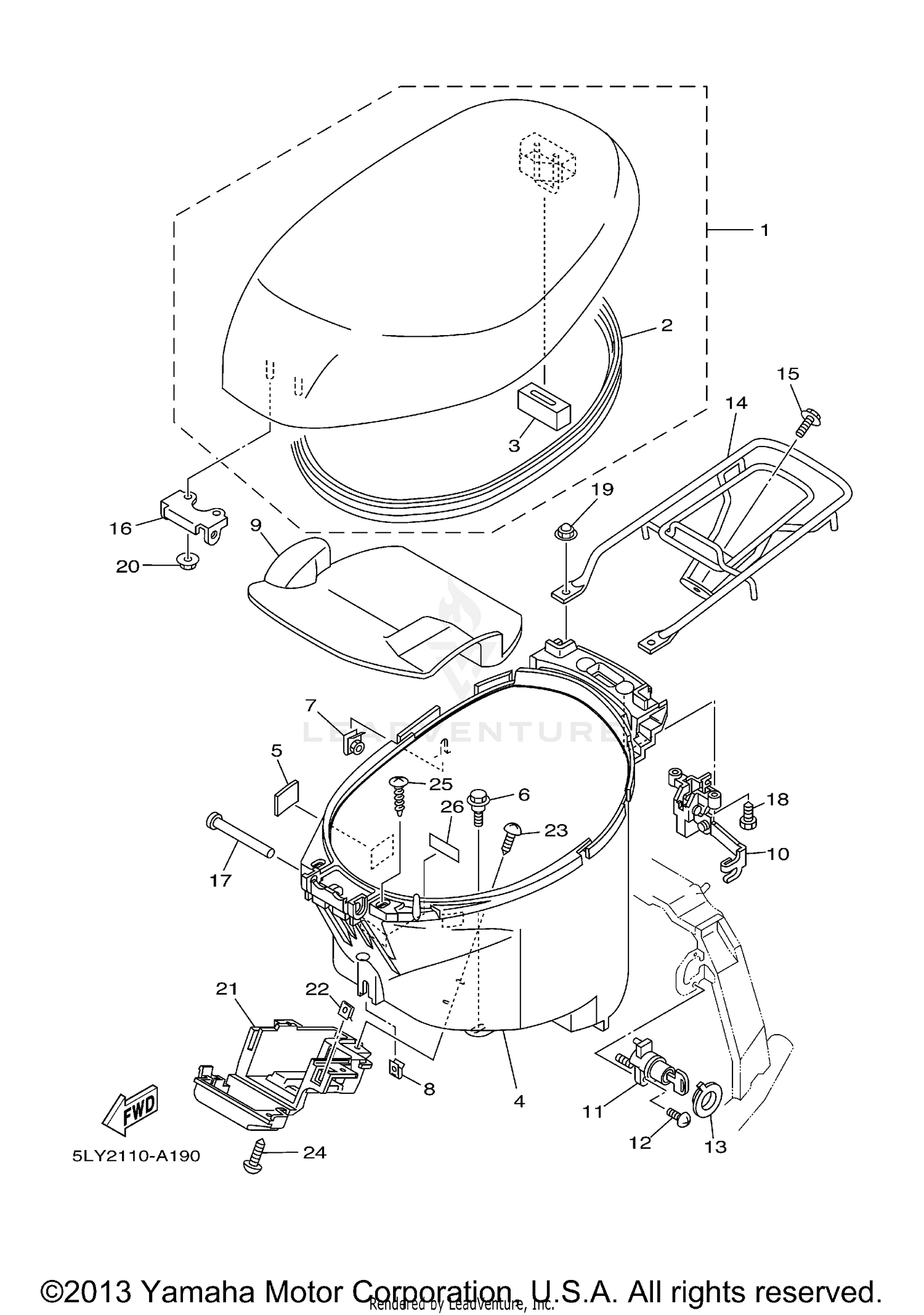

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SINGLE SEAT ASSY
5AU-24710-10-00
|
$276.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SEAL
4JP-2475M-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PAD, SEAT
5AU-24741-00-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOX 1
4JP-2473R-02-00
|
$151.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
DAMPER
4U5-24182-00-00
Superseded by 1YW-21638-00-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
90109-063F1-00
|
$3.10 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
NUT 1
25G-21535-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT 1
3VP-21535-00-00
Superseded by 25G-21535-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#9
DAMPER, SEAT
4JP-24747-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SEAT LOCK ASSY
5AU-24780-00-00
|
$51.99 | ||
|
Unavailable |
|||
|
#11
SEAT LOCK ASSY
5AU-W2470-00-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, PAN HEAD
98507-06014-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
CAP
5AU-2482H-01-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
CARRIER, REAR
5LY-24842-10-00
Superseded by 5LY-24842-11-00
|
$127.99 | ||
|
Unavailable |
|||
|
#15
BOLT, FLANGE
95807-08012-00
Superseded by 95817-08012-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
HINGE, SEAT
4JP-24726-11-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN
90241-10017-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
97007-06012-00
Superseded by 97017-06012-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, CROWN
90176-06055-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
NUT, FLANGE
95707-06500-00
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BOX, BATTERY
4JP-2177G-04-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, SPRING
90183-05042-00
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
SCREW, TAPPING
97707-60016-00
|
$1.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
SCREW, TRUSS HEAD TAPPING
97707-50012-00
|
$4.63 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
SCREW, TRUSS HEAD TAPPING
97707-50016-00
|
$1.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
LABEL, CAUTION
3LD-24877-A0-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
