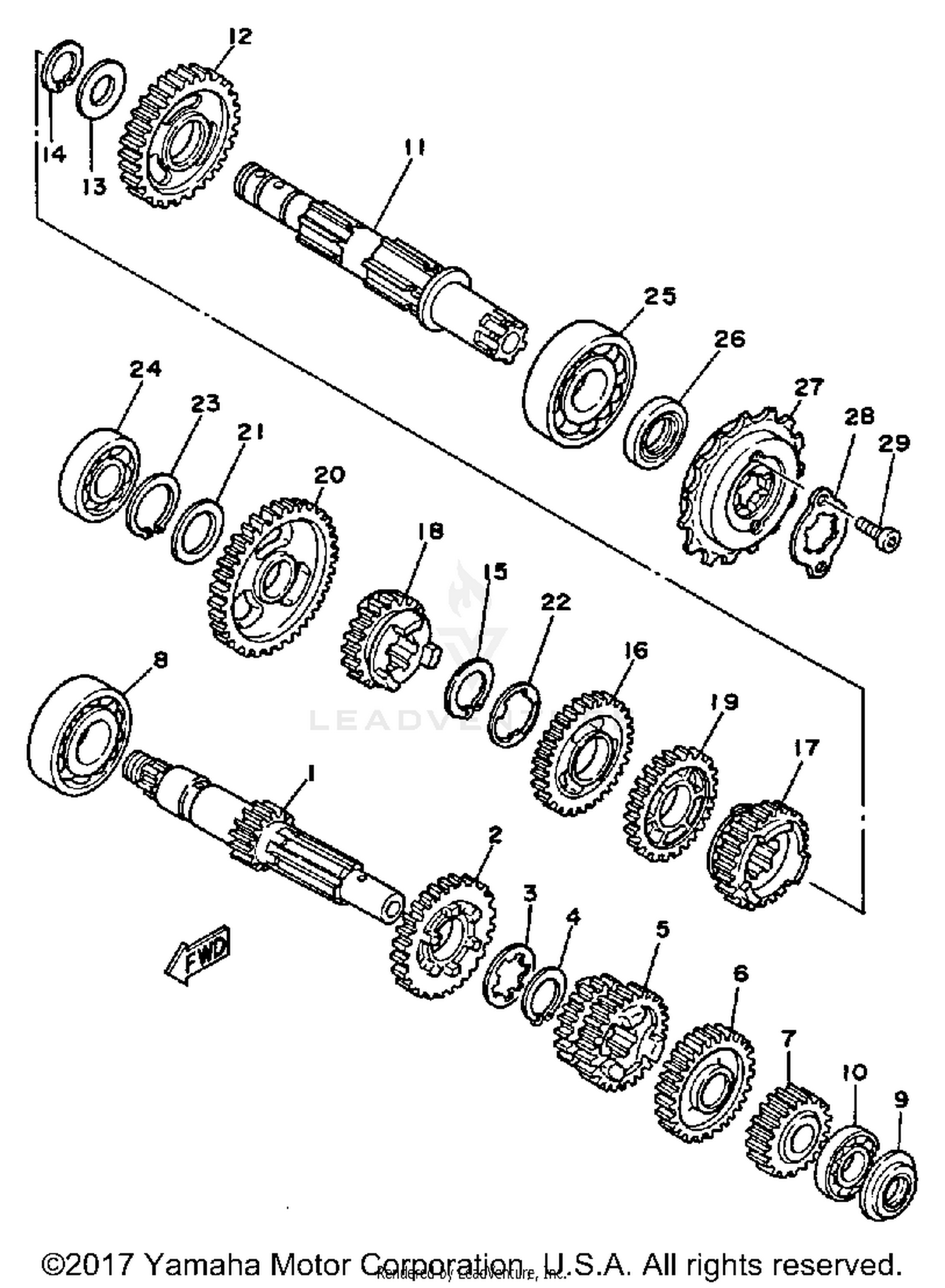

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AXLE, MAIN
51Y-17411-00-00
|
$173.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR, 6TH PINION (32T)
51Y-17161-00-00
|
$35.25 | ||
|
Unavailable |
|||
|
#3
WASHER
90209-18208-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP
93410-22039-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
GEAR, 3RD PINION (22T-25T)
30X-17131-00-00
|
$48.99 | ||
|
Unavailable |
|||
|
#6
GEAR, 5TH PINION (27T)
30X-17151-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#7
GEAR, 2ND PINION (16T)
51Y-17121-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING
93306-20427-00
Superseded by 93306-20447-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
OIL SEAL
93101-17093-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING
93306-00315-00
|
$36.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
DRIVE AXLE ASSEMBLY
30X-17402-00-00
|
$60.99 | ||
|
Unavailable |
|||
|
#12
GEAR, 2ND WHEEL (29T)
51Y-17221-00-00
|
$90.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER
90209-23241-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#14
CIRCLIP
93410-26067-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
CIRCLIP
93410-22039-00
|
$9.49 | ||
|
Unavailable |
|||
|
#16
GEAR, 3RD WHEEL
30X-17231-00-00
|
$37.99 | ||
|
Unavailable |
|||
|
#17
GEAR, 5TH WHEEL
30X-17251-01-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
GEAR, 6TH WHEEL
51Y-17261-00-00
|
$19.86 | ||
|
Unavailable |
|||
|
#19
GEAR, 4TH WHEEL
30X-17241-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
GEAR, 1ST WHEEL (37T)
51Y-17211-00-00
|
$90.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE
90201-177G4-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
WASHER
90209-18208-00
|
$9.49 | ||
|
Unavailable |
|||
|
#23
CIRCLIP
93410-17037-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING
93306-20332-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BEARING
93306-20447-00
|
$45.99 | ||
|
Unavailable |
|||
|
#26
OIL SEAL, SD-TYPE
93102-22306-00
|
$6.49 | ||
|
Unavailable |
|||
|
#27
SPROCKET, DRIVE 14T (51Y1746140
51Y-17460-00-00
|
$60.99 | ||
|
Unavailable |
|||
|
#28
HOLDER, SPROCKET
51Y-17456-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#29
BOLT
91316-06010-00
Superseded by 91317-06010-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
