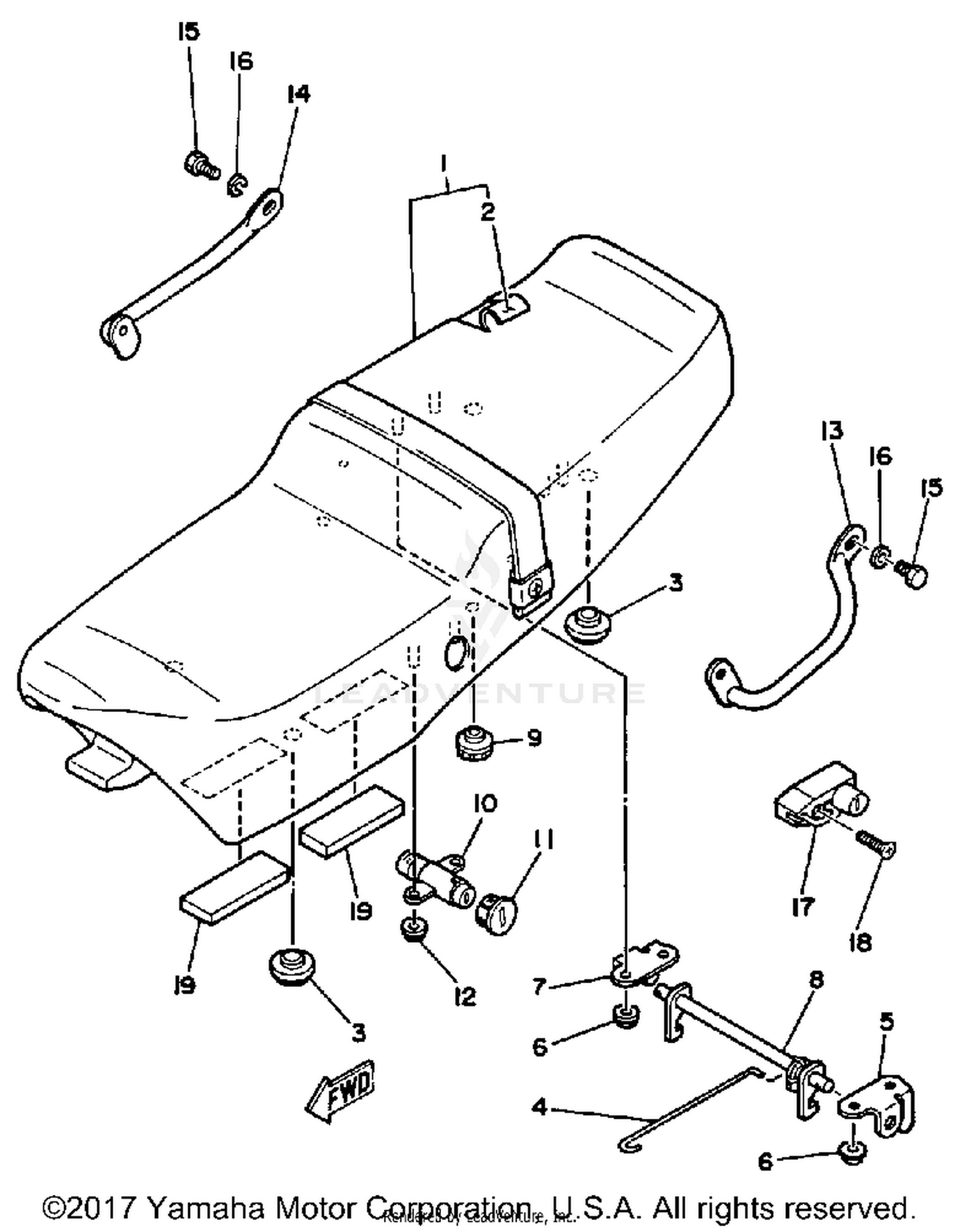

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DOUBLE SEAT ASSEMBLY
51Y-W2472-01-00
|
$183.99 | ||
|
Unavailable |
|||
|
#2
COVER, DOUBLE SEAT
51Y-24731-00-00
|
$151.99 | ||
|
Unavailable |
|||
|
#3
PAD, SEAT
116-24741-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
ROD, CONNECTING
51Y-2478F-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#5
BRACKET, SEAT
47X-24718-01-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, FLANGE
95701-06500-00
Superseded by 95780-06500-00
|
$2.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
BRACKET, SEAT
47X-24728-01-00
|
$14.49 | ||
|
Unavailable |
|||
|
#8
LEVER, SEAT
51Y-24776-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#9
PAD, SEAT
22W-24741-00-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
SEAT LOCK ASSEMBLY
51X-24705-00-00
Superseded by 47X-24705-00-00
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER
51Y-24796-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, FLANGE
95701-05500-00
Superseded by 95707-05500-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
HANDLE, STANDING
51Y-21165-00-00
|
$8.32 | ||
|
Unavailable |
|||
|
#14
STAY, REAR
51Y-21275-00-00
|
$7.90 | ||
|
Unavailable |
|||
|
#15
BOLT
97016-06016-00
Superseded by 97017-06016-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$1.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
HELMET HANGER ASSY
26H-21308-00-00
Superseded by 26H-21308-01-00
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, COUNTERSUNK
90149-06150-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#19
DAMPER, SEAT
51Y-24723-00-00
|
$0.60 | ||
|
Unavailable |
|||
