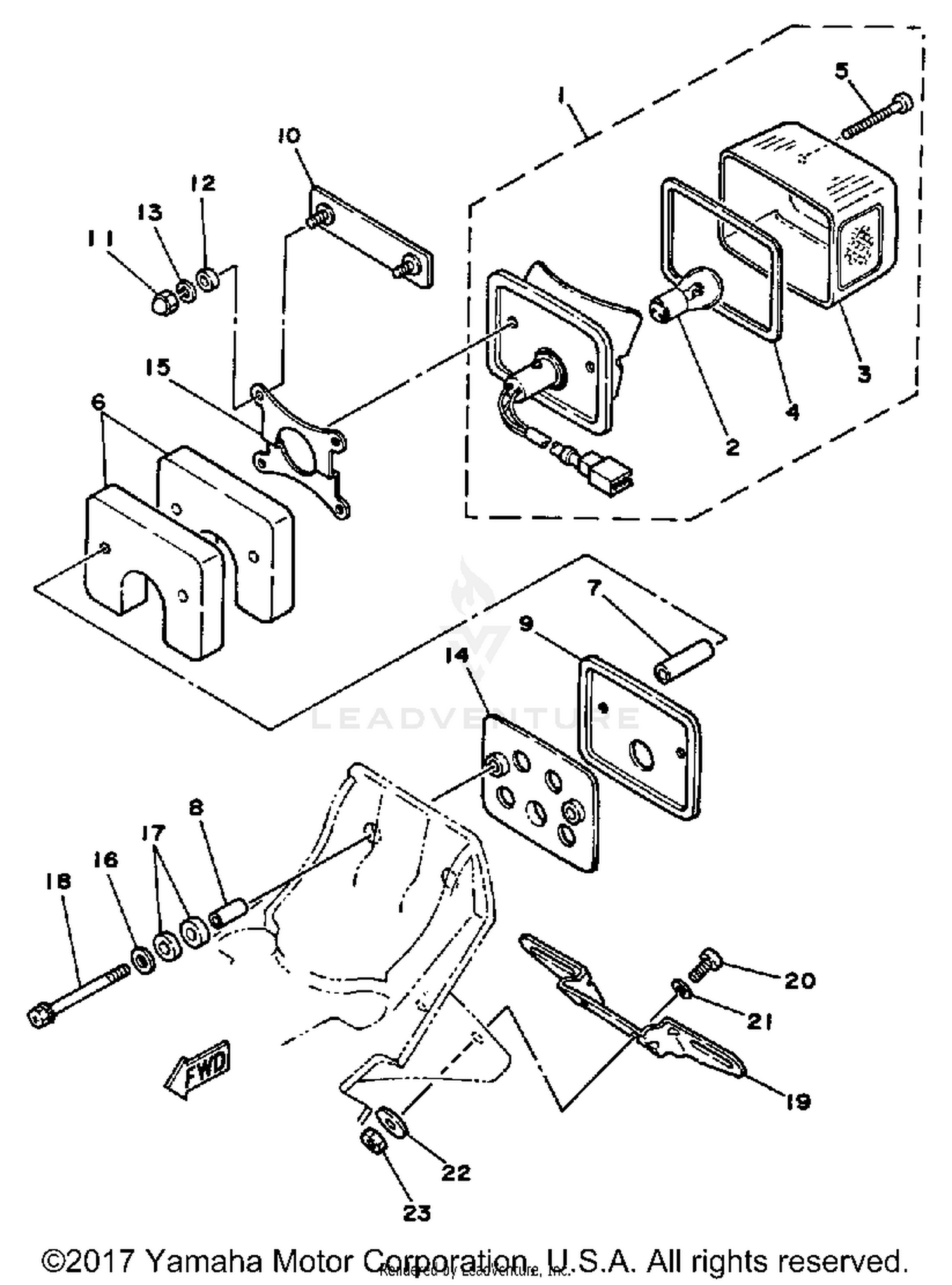

Taillight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TAILLIGHT UNIT ASSEMBLYASSY
4L3-84710-00-00
|
$71.99 | ||
|
Unavailable |
|||
|
#2
BULB (12V-27/8W)
256-84714-61-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
LENS, TAILLIGHT
1M1-84521-60-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, LENS
1M1-84523-60-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, ADJUSTING
1M1-84524-60-00
Superseded by 5BF-8433E-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
DAMPER
2NV-84753-00-00
|
$11.58 | ||
|
Unavailable |
|||
|
#7
COLLAR
90387-064G4-00
|
$3.18 | ||
|
Unavailable |
|||
|
#8
COLLAR
90387-061G0-00
|
$2.34 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRACKET, TAILLIGHT
2NV-84702-00-00
|
$18.49 | ||
|
Unavailable |
|||
|
#10
REAR REFLECTOR ASSY
1FK-85130-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT (CROWN)
95303-05800-00
|
$1.30 | ||
|
Unavailable |
|||
|
#12
COLLAR
90387-06022-00
Superseded by 90387-06106-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SPRING
92990-05100-00
|
$0.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
DAMPER
4L0-84753-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BRACKET, REAR STAY
2NV-21688-00-00
|
$15.70 | ||
|
Unavailable |
|||
|
#16
WASHER, PLATE
90201-062G3-00
Superseded by 90201-06049-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE
90201-083A0-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW WITH WASHER
90159-06140-00
|
$5.49 | ||
|
Unavailable |
|||
|
#19
BRCKT, NUMBER PLATENUMBER PLATE
2NV-8454E-00-00
|
$45.73 | ||
|
Unavailable |
|||
|
#20
BOLT
97016-06016-00
Superseded by 97017-06016-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$1.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
WASHER, PLATE
90201-06059-00
Superseded by 90201-06057-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT
95316-06600-00
Superseded by 95317-06600-00
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
