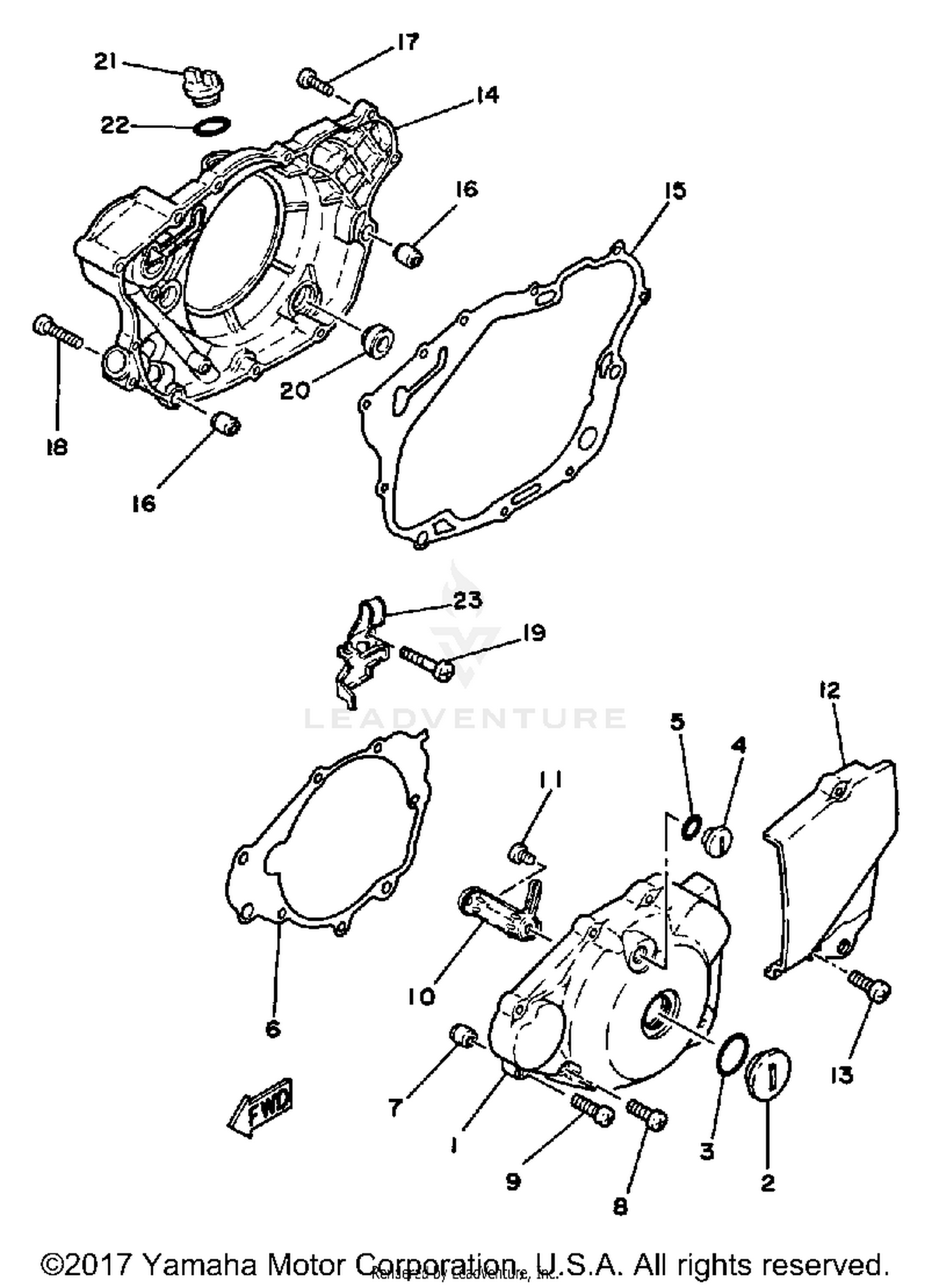

Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, CRANKCASE L
51Y-15411-01-00
|
$142.99 | ||
|
Unavailable |
|||
|
#2
PLUG, STRAIGHT SCREW
90340-32080-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
O-RING
93210-32172-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
PLUG, STRAIGHT SCREW
90340-14079-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
O-RING
93210-14369-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
GASKET, CRCS COVER
51Y-15451-00-00
Superseded by 51Y-15451-10-00
|
$13.49 | ||
|
Unavailable |
|||
|
#7
PIN, DOWEL
99510-12016-00
Superseded by 99530-12016-00
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, PAN HEAD
98506-06025-00
Superseded by 98517-06025-00
|
$4.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
SCREW, PAN HEAD
98506-06035-00
Superseded by 98507-06035-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP
90462-06146-00
|
$5.99 | ||
|
Unavailable |
|||
|
#11
SCREW, PAN HEAD
98580-06010-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER, CRANKCASE R
51Y-15421-00-00
|
$36.99 | ||
|
Unavailable |
|||
|
#13
SCREW, PAN HEAD
98506-06025-00
Superseded by 98517-06025-00
|
$4.05 | ||
|
Unavailable |
|||
|
#14
COVER, CRANKCASE 3
51Y-15431-01-00
|
$220.99 | ||
|
Unavailable |
|||
|
#15
GASKET, CRANKCASE CO
4EL-15461-00-00
Superseded by 4EL-15461-04-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN, DOWEL
99510-12016-00
Superseded by 99530-12016-00
|
$4.89 | ||
|
Unavailable |
|||
|
#17
SCREW, PAN HEAD
98506-06025-00
Superseded by 98517-06025-00
|
$4.05 | ||
|
Unavailable |
|||
|
#18
SCREW, PAN HEAD
98506-06035-00
Superseded by 98507-06035-00
|
$9.49 | ||
|
Unavailable |
|||
|
#19
SCREW, PAN HEAD
98506-06040-00
Superseded by 98507-06040-00
|
$3.22 | ||
|
Available to order. Add to View Price |
|||
|
#20
GAUGE, LEVEL
3Y1-15361-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
PLUG, OIL
1RG-15363-00-00
Superseded by 3Y1-15363-10-00
|
$19.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
O-RING
93210-19123-00
|
$8.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
CLAMP
90465-08158-00
Superseded by 90465-08060-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
