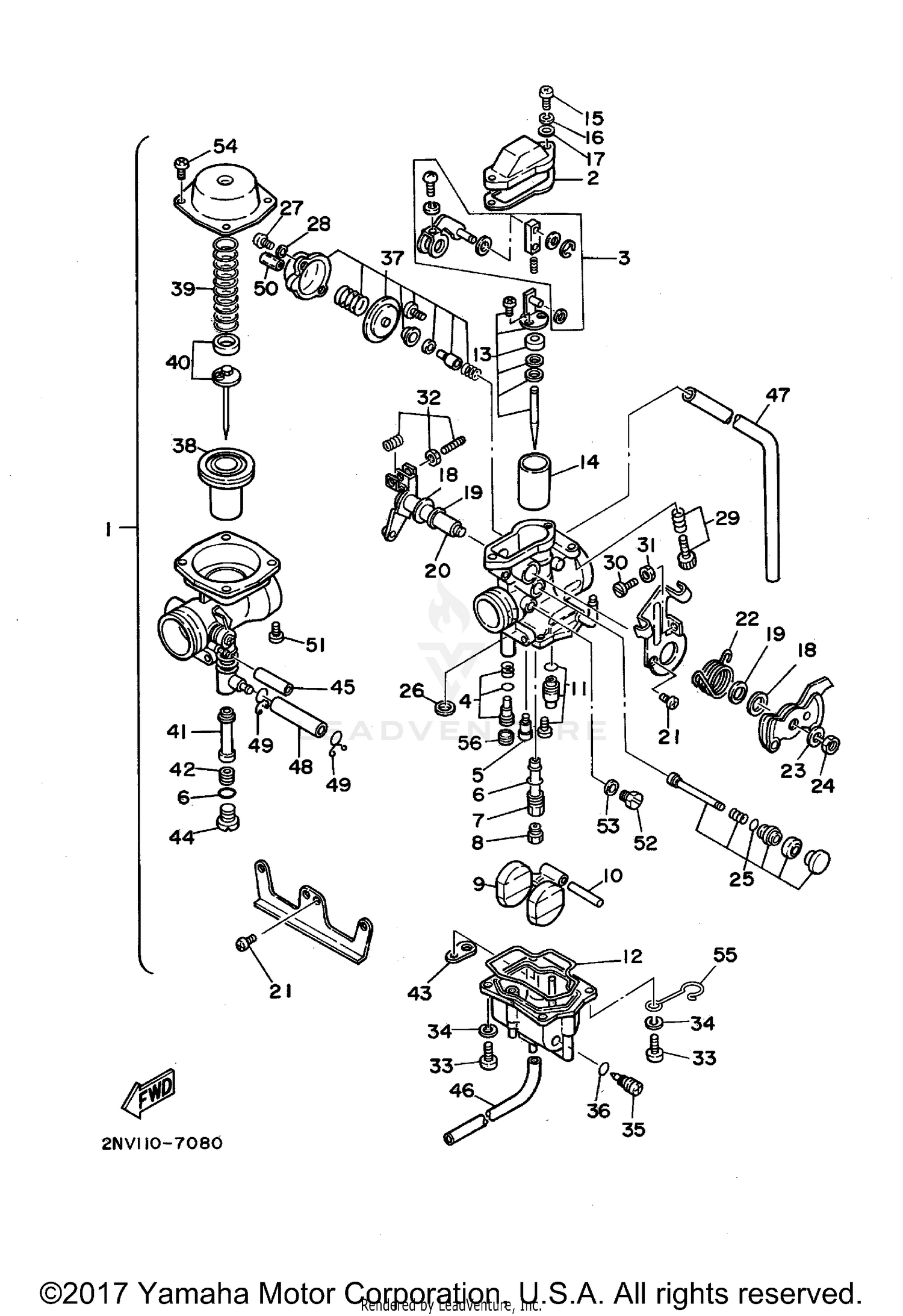

Carburetor Srx250t Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSEMBLY 1
2NV-14301-02-00
|
$620.99 | ||
|
Unavailable |
|||
|
#2
GASKET
30X-14198-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BRACKET 1
1LN-14291-00-00
|
$62.99 | ||
|
Unavailable |
|||
|
#4
PILOT SCREW SET (30X-14105-00
51Y-14105-00-00
|
$14.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
JET, PILOT (#38)
43F-14342-19-00
|
$35.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
GASKET
360-24512-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NOZZLE, MAIN
51Y-14341-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#8
NOZZLE,MAIN #122
288-14343-61-00
Superseded by 288-14355-61-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
FLOAT
2JN-14385-00-00
Superseded by 25N-14385-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, FLOAT
6E5-14386-01-00
|
$5.65 | ||
|
Available to order. Add to View Price |
|||
|
#11
NEEDLE VALVE SET
2JN-14107-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET, FLOAT CHAMBER
30X-14384-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
NEEDLE SET
2NV-1490J-10-00
|
$14.78 | ||
|
Unavailable |
|||
|
#14
VALVE, THROTTLE 1
51Y-14312-35-00
|
$17.97 | ||
|
Unavailable |
|||
|
#15
SCREW, PAN HEAD
98511-04016-00
Superseded by 98517-04016-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
WASHER, PLATE
92901-04600-00
Superseded by 92990-04600-00
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLAIN
5Y1-14357-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLATE, STAY
5Y1-14572-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
THROTTLE SHAFT ASSEMBLYASSY
2NV-14930-00-00
|
$64.99 | ||
|
Unavailable |
|||
|
#21
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPRING, THROTTLE VALVE
30X-14131-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, SPRING
5Y1-14356-00-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT
5Y1-14358-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
PLUNGER, STARTER
51Y-14371-00-00
Superseded by 51Y-14371-01-00
|
$130.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
GASKET
5Y1-14536-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW, PAN HEAD
98580-04010-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.95 | ||
|
Unavailable |
|||
|
#29
THROTTLE SCREW SET
3WP-14103-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW
30X-14216-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#31
NUT
30X-14358-00-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#32
STOP SCREW SET
30X-1490K-00-00
|
$18.49 | ||
|
Unavailable |
|||
|
#33
SCREW,PANHEAD
98511-04012-00
Superseded by 98517-04012-00
|
$4.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.95 | ||
|
Unavailable |
|||
|
#35
PLUG, SCREW
5Y1-14115-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
O-RING
5Y1-14397-00-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
DIAPHRAGM SET 1
5Y1-1490A-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
VALVE ASSEMBLY
30X-14340-01-00
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
SPRING
30X-14286-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
NEEDLE SET
2NV-1490J-00-00
|
$15.84 | ||
|
Unavailable |
|||
|
#41
NOZZLE, MAIN 2
2NV-14355-00-00
|
$11.23 | ||
|
Unavailable |
|||
|
#42
JET, MAIN (#80)
30X-14343-40-00
|
$4.95 | ||
|
Unavailable |
|||
|
#43
PLATE
5Y1-14146-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
VALVE, DRAIN (30X-14394-00)
1RG-14394-00-00
|
$46.99 | ||
|
Unavailable |
|||
|
#45
PIPE
5Y1-14349-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
PIPE
51Y-14396-00-00
|
$1.78 | ||
|
Unavailable |
|||
|
#47
PIPE
51Y-14197-00-00
|
$1.78 | ||
|
Unavailable |
|||
|
#48
PIPE
30X-14148-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#49
CLIP
5Y1-14159-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
PIPE
30X-14149-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#51
SCREW, PAN HEAD
98580-04010-00
|
$9.49 | ||
|
Unavailable |
|||
|
#52
SCREW
5H0-14991-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#53
GASKET
5H0-14126-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#54
SCREW, PAN HEAD
98580-04008-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#55
PLATE
42U-14146-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#56
CAP
5Y1-14118-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
