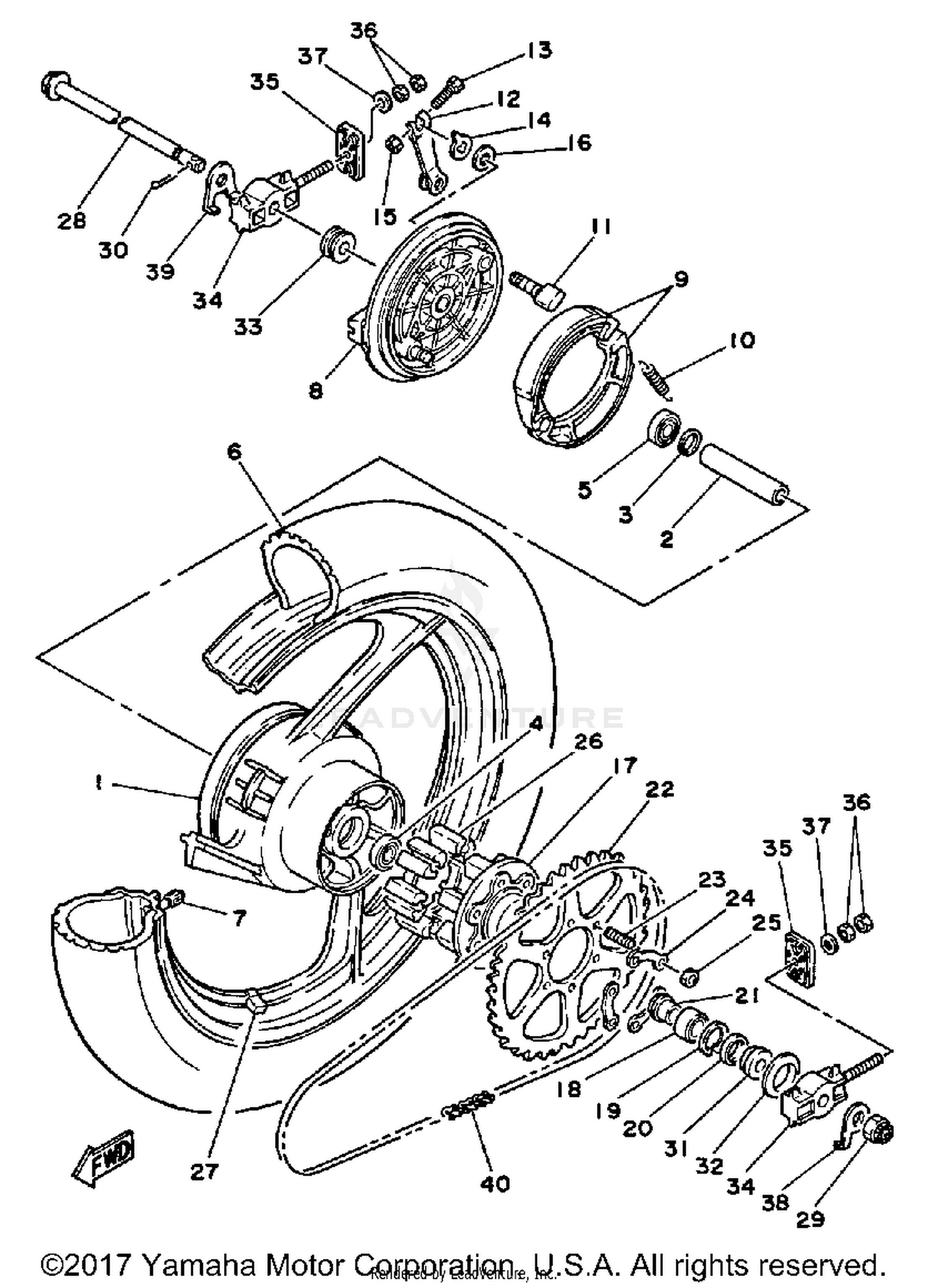

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WHEEL, CAST REAR
2NV-25338-00-FH
|
$560.99 | ||
|
Unavailable |
|||
|
#2
INACTIVE PART NUMBER
90560-15266-00
|
$4.50 | ||
|
Unavailable |
|||
|
#3
FLANGE, SPACER 2
146-25116-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
93306-20209-00
Superseded by 93306-20205-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING
93306-20226-00
|
$42.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
100-90\18 565 BS (100/90-18 56S
94110-185W1-00
|
$69.50 | ||
|
Unavailable |
|||
|
#7
VALVE, RIM (TR412)
93900-00030-00
|
$18.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
PLATE, BRAKE SHOE
51Y-25321-01-FH
|
$46.27 | ||
|
Unavailable |
|||
|
#9
BRAKE SHOE KIT
5Y1-W2536-00-00
Superseded by 3GW-W253A-00-00
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, TENSION
90507-20002-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAMSHAFT
5Y1-25151-00-00
|
$26.99 | ||
|
Unavailable |
|||
|
#12
LEVER, CAMSHAFT
1E7-25355-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
90101-06278-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLATE, INDICATOR
3Y6-2533A-01-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, HEXAGON
95380-06600-00
|
$4.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
SHIM, CAMSHAFT
148-25353-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLUTCH, HUB
3Y1-25366-00-98
|
$110.99 | ||
|
Unavailable |
|||
|
#18
BEARING (B6204)
93306-20421-00
Superseded by 93306-20461-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
CIRCLIP
99009-47500-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
OIL SEAL
93102-28022-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
COLLAR, WHEEL
51Y-25377-00-00
|
$10.99 | ||
|
Unavailable |
|||
|
#22
SPROCKET, DRVN 43TDRIVEN (43T)
51Y-25443-10-00
|
$36.99 | ||
|
Unavailable |
|||
|
#23
BOLT, STUD
90116-08218-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
WASHER, LOCK
90215-08160-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
NUT
90170-08258-00
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#26
DAMPER
3Y1-25364-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
BALANCER, WHEEL (10G)
1A1-25399-00-00
Superseded by 5MT-25398-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#
BALANCER, WHEEL (10G)
1A1-25398-01-00
Superseded by 5MT-25398-00-00
|
$18.99 | ||
|
Unavailable |
|||
|
#
BALANCER, WHEEL (10G)
2M0-25399-00-00
Superseded by 5MT-25398-00-00
|
$18.99 | ||
|
Unavailable |
|||
|
#28
AXLE, WHEEL
51L-25381-01-00
|
$10.92 | ||
|
Unavailable |
|||
|
#29
NUT, CASTLE
90171-14020-00
Superseded by 90171-14056-00
|
$14.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
COLLAR, WHEEL
51Y-25383-00-00
|
$3.76 | ||
|
Unavailable |
|||
|
#32
COLLAR, WHEEL
3Y1-25383-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
COLLAR
90387-155L8-00
|
$7.99 | ||
|
Unavailable |
|||
|
#34
PULLER, CHAIN 1
51L-25388-00-00
Superseded by 51L-25388-01-00
|
$31.99 | ||
|
Unavailable |
|||
|
#35
END 1
51L-22174-00-00
|
$19.49 | ||
|
Unavailable |
|||
|
#36
NUT
95333-08600-00
|
$3.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
PLATE, INDICATOR
51L-2533A-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#39
PLATE, INDICATOR 2
51L-2533E-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#40
CHAIN,DRV
94580-93106-00
Superseded by 9Y581-08105-00
|
$204.99 | ||
|
Available to order. Add to View Price |
|||
