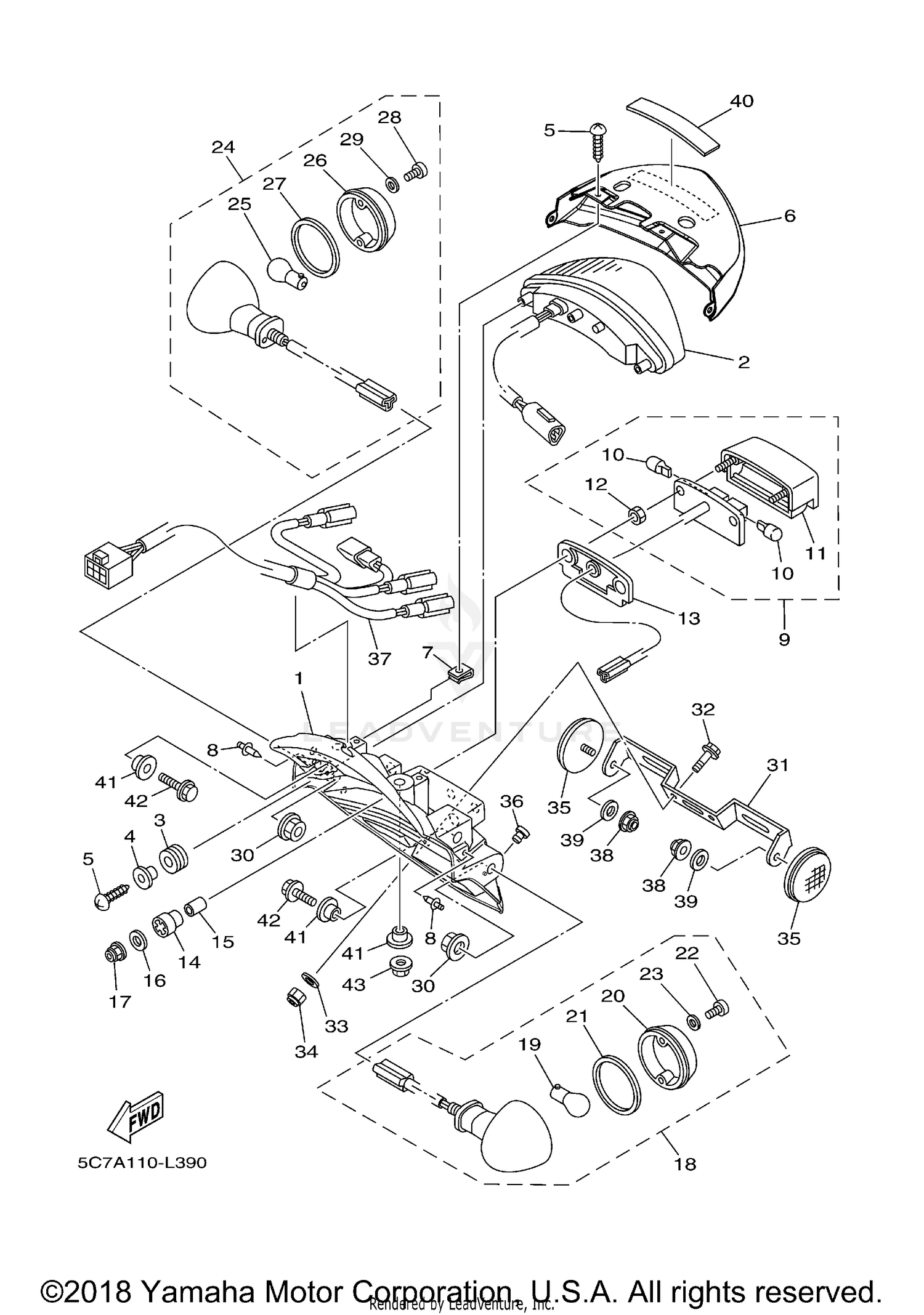

Taillight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BASE, TAILLIGHT
5C7-84711-00-00
|
$168.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
TAILLIGHT UNIT ASSY
5C7-84710-00-00
|
$208.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
DAMPER
5PX-84553-00-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR
5PX-84557-00-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, TRUSS HEAD TAPPING
97702-50012-00
Superseded by 97707-50012-00
|
$4.63 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
COVER, TAILLIGHT
5C7-84716-01-00
|
$209.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, SPRING
90183-05042-00
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
RIVET
90269-06012-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
LICENSE LIGHT UNIT ASSY
5C7-84745-00-00
|
$125.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BULB (12V-2CP)
5PX-84744-00-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#11
BODY, LICENSE LIGHT
5PX-84749-00-00
|
$90.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, SPECIAL
5PX-84748-00-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#13
SEAT, BASE
5PX-84742-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
DAMPER
3F9-84553-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR
90387-06241-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
WASHER, PLATE
90201-05025-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
NUT, U
95602-05100-00
Superseded by 95617-05100-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
REAR FLASHER LIGHT ASSY 1
5C7-83330-00-00
|
$96.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BULB, FLASHER (12V-21W)
5VN-83331-00-00
|
$15.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
LENS, FLASHER
5PX-83312-10-00
|
$10.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
GASKET, FLASHER LENS
5PX-83313-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, TAPPING
97704-40625-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER
5PX-83348-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
REAR FLASHER LIGHT ASSY 2
5C7-83340-00-00
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BULB, FLASHER (12V-21W)
5VN-83331-00-00
|
$15.49 | ||
|
Unavailable |
|||
|
#26
LENS, FLASHER 2
5PX-83342-10-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
GASKET, FLASHER LENS
5PX-83313-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#28
SCREW, TAPPING
97704-40625-00
|
$9.49 | ||
|
Unavailable |
|||
|
#29
WASHER
5PX-83348-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#30
NUT, FLANGE
95702-12500-00
Superseded by 90179-12588-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
BRACKET, LICENSE
5C7-84751-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, FLANGE
95027-06014-00
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
WASHER PLAIN
90201-06380-00
|
$0.65 | ||
|
Available to order. Add to View Price |
|||
|
#34
NUT, U
95607-06100-00
Superseded by 95617-06100-00
|
$2.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
REFLECTOR, REAR 1
449-85131-02-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
PLUG
90338-06018-00
Superseded by 90338-07180-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
CORD, TAILLIGHT
5C7-84717-10-00
|
$83.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
NUT, S/L FLANGE
95607-05200-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
WASHER, PLATE
90201-051K1-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
DAMPER 3
1AE-2834E-00-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#41
COLLAR
90387-06153-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
BOLT, FLANGE
90105-06085-00
Superseded by 95817-06012-00
|
$1.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#43
NUT, U FLANGE
95602-06200-00
Superseded by 95604-06200-00
|
$2.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
