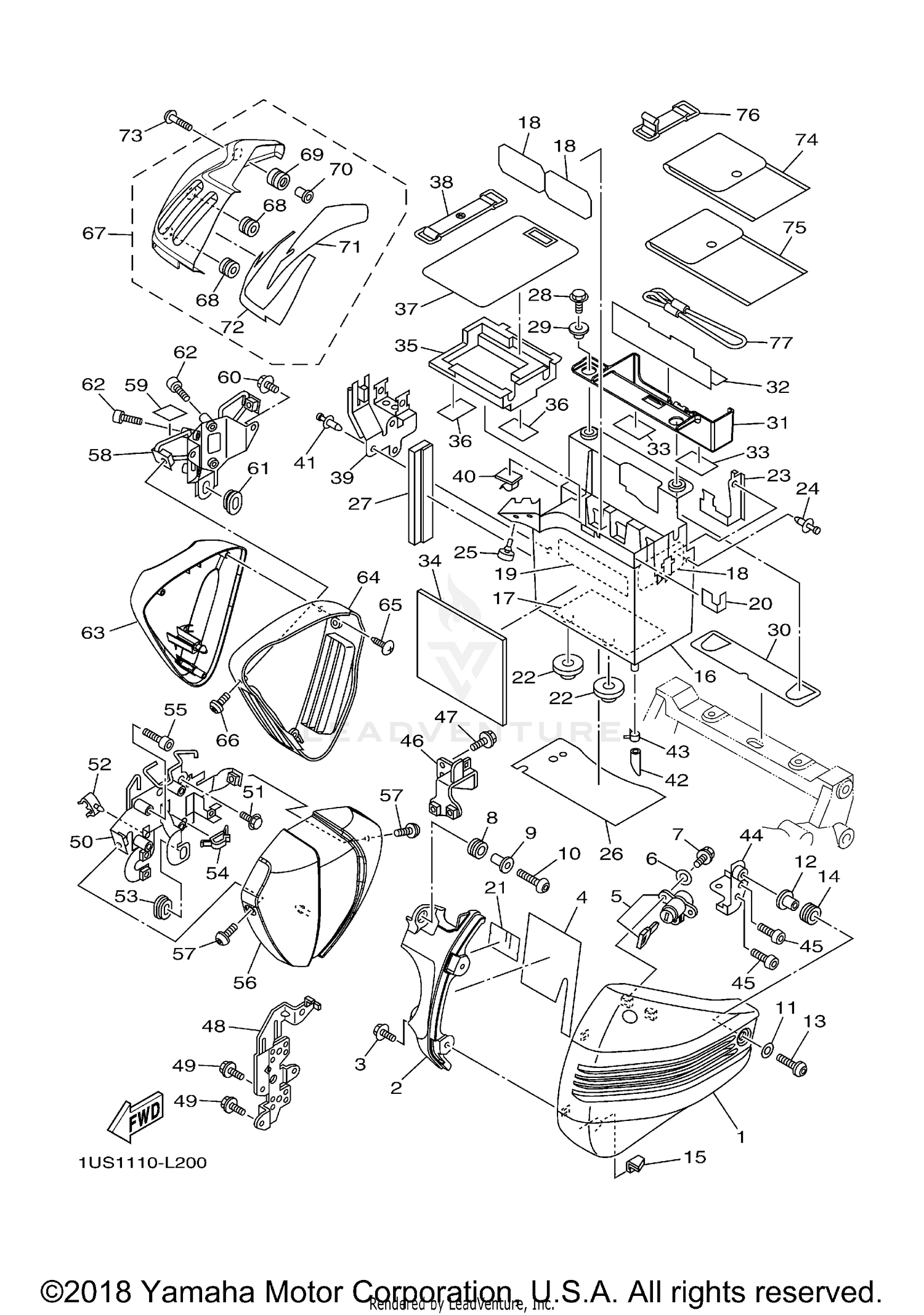

Side Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, SIDE 1
1D7-21711-00-PC
|
$211.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER 9
1D7-2117X-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, FLANGE
90105-06020-00
Superseded by 95817-06014-00
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
DAMPER
1D7-21746-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
ROTOR SET
5PX-W2470-00-00
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
90201-06034-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE
90105-06639-00
Superseded by 95024-06016-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
GROMMET
90480-14323-00
Superseded by 90480-14329-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
COLLAR
90387-066Y6-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, BUTTON HEAD
92014-06020-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
90201-06M01-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPACER
90560-06201-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW
90149-06023-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
GROMMET
90480-12007-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
GUIDE
5PX-2171H-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOX, BATTERY
1D7-2177G-02-00
|
$34.99 | ||
|
Unavailable |
|||
|
#17
DAMPER, LOCATING 2
5C7-21779-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
PROTECTOR
5PX-21652-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
DAMPER, LOCATING 1
5PX-21778-00-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#20
SEAL 4
5C7-2173N-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
SEAL 2
5C7-21735-00-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#22
GROMMET
90480-20384-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BRACKET 3
5C7-2172M-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
RIVET
90269-07077-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
DAMPER
1D7-2174X-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
DAMPER, LOCATING 4
1D7-2177N-01-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
DAMPER, LOCATING 1
1D7-21778-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE
95022-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#29
COLLAR
90387-06267-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
DAMPER
5C7-21747-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOX, TOOL
5C7-28173-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
DAMPER
5C7-2174Y-00-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#33
DAMPER
3YL-12232-00-00
Superseded by 5H0-8235Y-M0-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
SEAL 1
1D7-21732-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
COVER, BATTERY
5PX-82129-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
DAMPER
5JW-2139X-00-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#37
STAY SETTING
5VN-8412H-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
BAND, BATTERY
120-82131-00-00
Superseded by 7H3-82131-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
BRACKET 1
1D7-2172K-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
CLAMP
90464-25160-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
RIVET
90269-07077-00
|
$9.49 | ||
|
Unavailable |
|||
|
#42
HOSE
90445-11027-00
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#43
CLIP
90467-11090-00
Superseded by 90467-10135-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
BRACKET 1
1D7-2175T-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
BOLT, BUTTON HEAD
92012-06016-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
BRACKET 4
5C7-2172N-01-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
BOLT, FLANGE
95807-06014-00
Superseded by 95817-06014-00
|
$2.80 | ||
|
Unavailable |
|||
|
#48
STAY, SIDE COVER 2
5PX-2174E-01-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
BOLT, FLANGE
95022-06012-00
|
$3.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#50
BRACKET 3
5C7-2175V-00-00
|
$269.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
BOLT, FLANGE
95802-08035-00
Superseded by 95817-08035-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#52
CLAMP
90464-09130-00
|
$1.54 | ||
|
Available to order. Add to View Price |
|||
|
#53
GROMMET
90480-01558-00
|
$4.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#54
CLAMP
90464-14001-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#55
BOLT, HEXAGON SOCKET HEAD
90110-06213-00
Superseded by 90110-06114-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#56
COVER, SIDE 3
5C7-21731-01-00
|
$211.99 | ||
|
Available to order. Add to View Price |
|||
|
#57
SCREW
90149-06302-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#58
BRACKET 4
1D7-2175W-00-00
|
$120.99 | ||
|
Available to order. Add to View Price |
|||
|
#59
SEAL 3
5C7-2173M-00-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#60
BOLT, FLANGE
95022-06010-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#61
GROMMET
90480-01558-00
|
$4.65 | ||
|
Unavailable |
|||
|
#62
BOLT, HEXAGON SOCKET HEAD
90110-06213-00
Superseded by 90110-06114-00
|
$11.49 | ||
|
Unavailable |
|||
|
#63
COVER, SIDE 4
5C7-21741-01-00
|
$170.99 | ||
|
Available to order. Add to View Price |
|||
|
#64
BODY
1D7-2171D-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#65
SCREW, TAPPING
90167-05077-00
|
$4.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#66
SCREW
90149-06022-00
Superseded by 90149-06302-00
|
$6.49 | ||
|
Unavailable |
|||
|
#67
PLATE, COVER
5C7-17471-00-PH
|
$260.99 | ||
|
Available to order. Add to View Price |
|||
|
#68
GROMMET
90480-13007-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#69
GROMMET
90480-13006-00
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#70
COLLAR
90387-07007-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#71
SEAL, CRANKCASE
5C7-15379-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#72
SEAL
5C7-15663-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#73
BOLT, HEXAGON SOCKET HEAD
90111-06039-00
Superseded by 90110-06202-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#74
TOOL KIT
5C7-28100-00-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#75
TOOL KIT, 2
5C7-28110-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#76
BAND, BATTERY
3TJ-82131-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#77
HANGER, HELMET
4HC-21398-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
