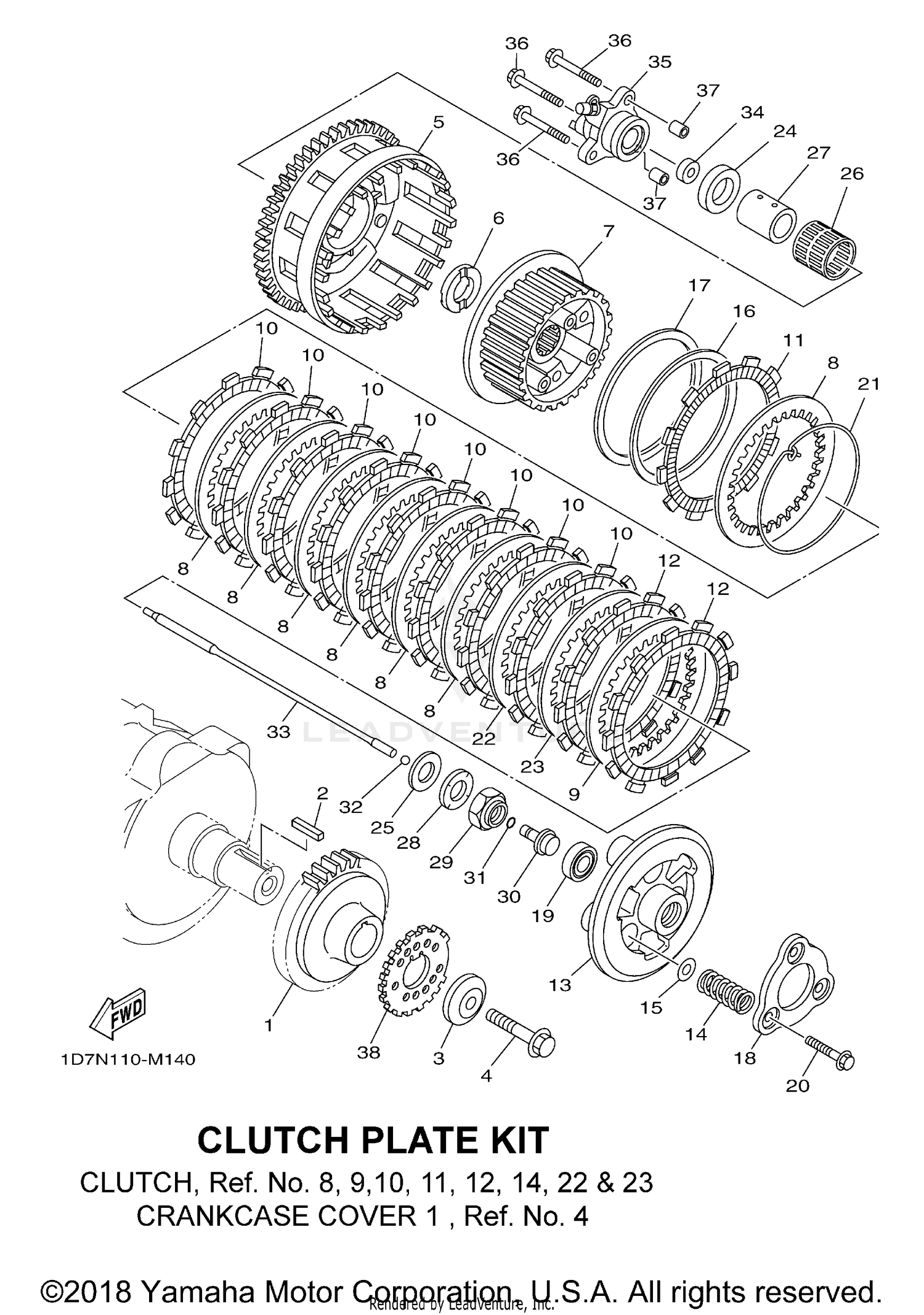

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, PRIMARY DRIVE
1D7-16111-00-00
|
$231.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
KEY, FEATHER
4WM-16193-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPACER 1
4WM-16181-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, FLANGE
90105-12059-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PRIMARY DRIVEN GEAR COMP.
1D7-16150-10-00
|
$504.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, THRUST 1
1D7-16154-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOSS, CLUTCH
1D7-16371-10-00
|
$150.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, CLUTCH 2
2H7-16325-00-00
Superseded by 2H7-16325-10-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, CLUTCH 2
1D7-16325-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, FRICTION
1D7-16321-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE, FRICTION 2
4XV-16331-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE, FRICTION 2
1PK-16331-00-00
|
$32.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
PLATE, PRESSURE 1
1D7-16351-10-00
|
$159.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, COMPRESSION
1D7-16173-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLATE, SEAT
1D7-16384-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING, CLUTCH BOSS
36Y-16383-00-00
|
$74.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
PLATE, SEAT
36Y-16384-00-00
|
$31.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
PLATE, PRESSURE 2
1D7-16352-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BEARING
93306-00304-00
Superseded by 93306-00315-00
|
$36.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
SCREW, SPRING
1D7-16337-00-00
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#21
RING, CLUTCH BOSS
2H7-16385-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
PLATE, CLUTCH 2
2H7-16325-00-00
Superseded by 2H7-16325-10-00
|
$12.99 | ||
|
Unavailable |
|||
|
#22
PLATE, CLUTCH 1
47X-16324-00-00
Superseded by 47X-16324-10-00
|
$30.99 | ||
|
Unavailable |
|||
|
#22
PLATE, CLUTCH 1
2H7-16324-00-00
Superseded by 2H7-16324-10-00
|
$23.99 | ||
|
Unavailable |
|||
|
#23
PLATE, CLUTCH 1
47X-16324-00-00
Superseded by 47X-16324-10-00
|
$30.99 | ||
|
Unavailable |
|||
|
#23
PLATE, CLUTCH 1
2H7-16324-00-00
Superseded by 2H7-16324-10-00
|
$23.99 | ||
|
Unavailable |
|||
|
#23
PLATE, CLUTCH 2
2H7-16325-00-00
Superseded by 2H7-16325-10-00
|
$12.99 | ||
|
Unavailable |
|||
|
#24
PLATE, THRUST 2
1D7-16164-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLATE
90201-22013-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
BEARING
93310-33559-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
COLLAR
90387-28006-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, CONICAL SPRING
90208-22003-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT
90179-22010-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
ROD, PUSH 1
4KG-16356-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
O-RING
93210-06632-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
BALL
93511-32017-00
Superseded by 93511-32027-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
ROD, PUSH 2
1D7-16357-00-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
OIL SEAL
93109-08061-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
PUSH LEVER COMP.
1D7-16381-00-00
|
$242.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, FLANGE
95814-06055-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#37
PIN, DOWEL
99530-08012-00
|
$6.60 | ||
|
Available to order. Add to View Price |
|||
|
#38
ROTOR
1D7-81673-01-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
CLUTCH PLATE KIT
1D7-W001G-00-00
|
$234.99 | ||
|
Available to order. Add to View Price |
|||
