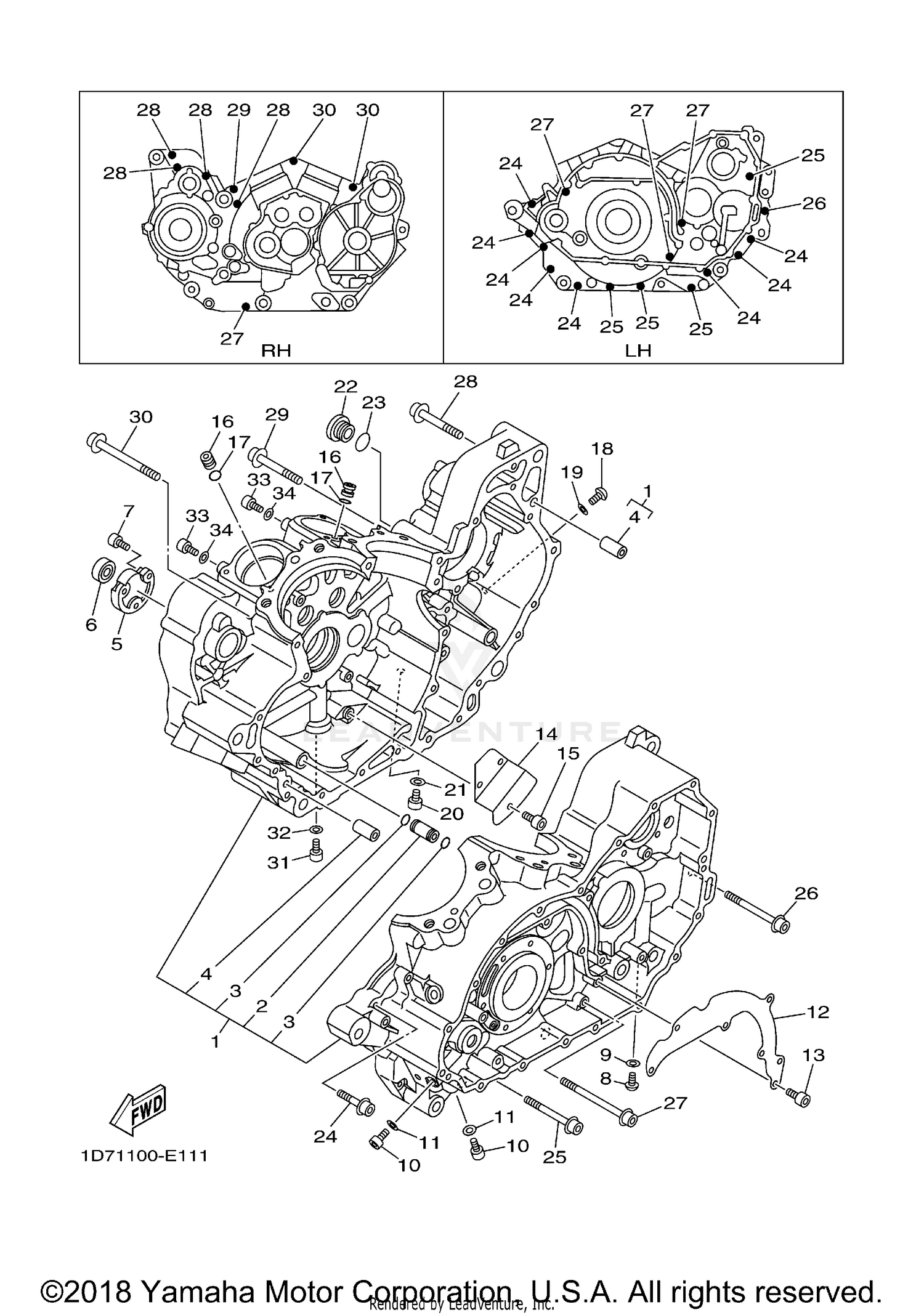

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE ASSY
1D7-15100-19-00
|
$1,463.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
NOZZLE 1
1D7-15138-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
O-RING
93210-10003-00
Superseded by 93210-10001-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, DOWEL
99530-10116-00
|
$4.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
HOUSING, BEARING 1
1D7-15163-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING
93306-00006-00
Superseded by 93306-00004-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, HEXAGON SOCKET HEAD
90110-06174-00
Superseded by 91314-06020-00
|
$2.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
SCREW
90149-06158-00
Superseded by 90149-06156-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET
90430-06014-00
|
$8.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BOLT,SOCKET
90110-08079-00
Superseded by 91314-08014-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET
90430-08119-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE
1D7-15191-00-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT (4MY)
90110-06161-00
Superseded by 91317-06016-00
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER, OIL PUMP
1D7-15412-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
90110-06168-00
Superseded by 91312-06014-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLUG
1D7-15189-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING
93210-07435-00
Superseded by 93210-07540-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW
90149-06158-00
Superseded by 90149-06156-00
|
$9.49 | ||
|
Unavailable |
|||
|
#19
GASKET
90430-06014-00
|
$8.60 | ||
|
Unavailable |
|||
|
#20
BOLT,SOCKET
90110-08079-00
Superseded by 91314-08014-00
|
$6.49 | ||
|
Unavailable |
|||
|
#21
GASKET
90430-08119-00
|
$7.49 | ||
|
Unavailable |
|||
|
#22
PLUG
4H7-15189-00-00
|
$33.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
O-RING
93210-20003-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, HEXAGON SOCKET HEAD
90110-06300-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, HEXAGON SOCKET HEAD
90110-06094-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, HEXAGON SOCKET HEAD
90110-06297-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, HEXAGON SOCKET HEAD
90110-06296-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, HEXAGON SOCKET HEAD
90110-06298-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, HEXAGON SOCKET HEAD
90110-08072-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, HEXAGON SOCKET HEAD
90110-08073-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT,SOCKET
90110-08079-00
Superseded by 91314-08014-00
|
$6.49 | ||
|
Unavailable |
|||
|
#32
GASKET
90430-08119-00
|
$7.49 | ||
|
Unavailable |
|||
|
#33
BOLT, HEXAGON SOCKET HEAD
91314-06010-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#34
GASKET
90430-06014-00
|
$8.60 | ||
|
Unavailable |
|||
