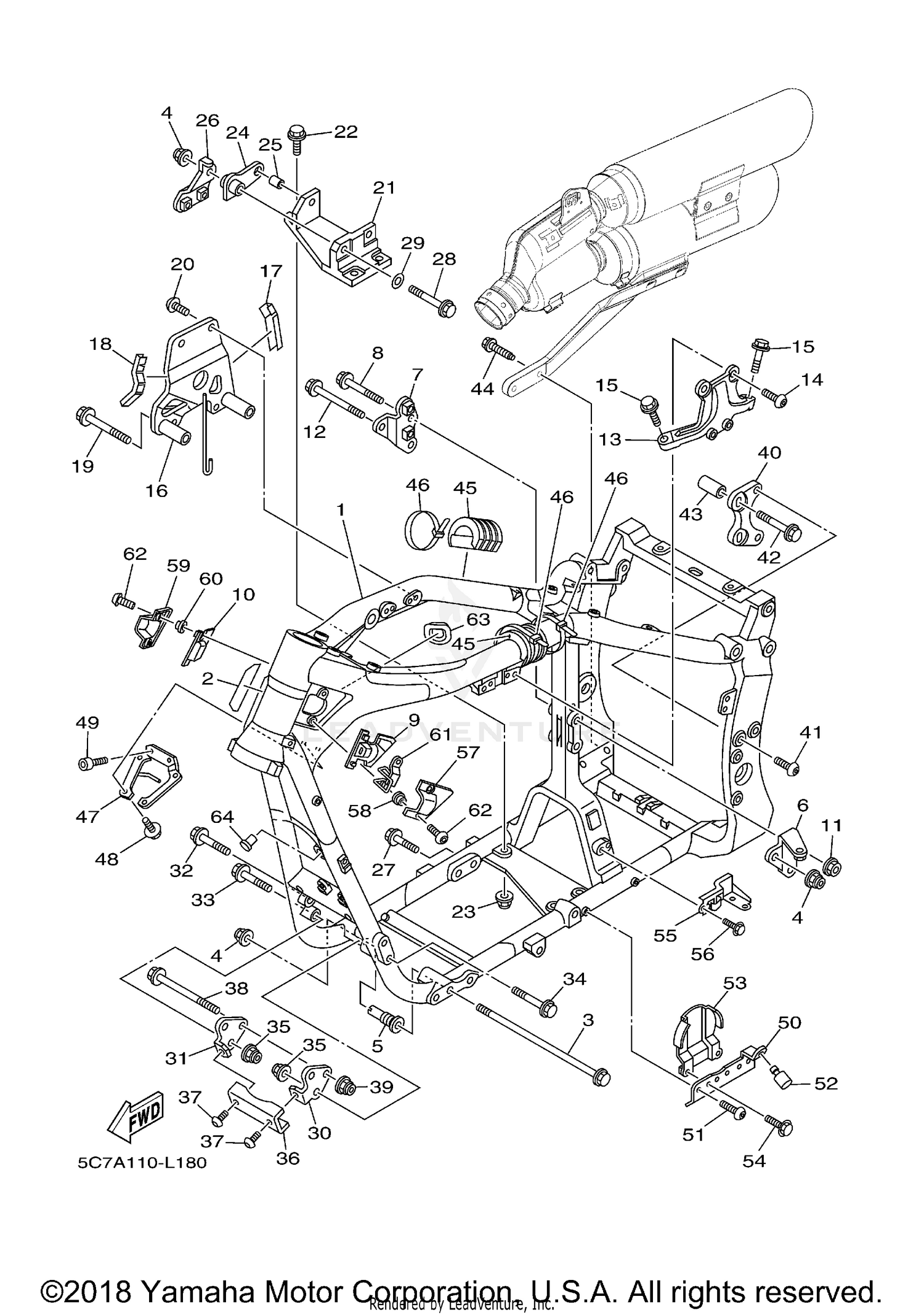

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME COMP.
5C7-21110-01-00
|
$3,943.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PROTECTOR, FUEL TANK
1D7-24141-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, FLANGE
90105-126A6-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT, SELF-LOCKING
95602-12200-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
BOLT, ENGINE ADJUSTING
5PX-21495-01-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
STAY, ENGINE 1
1D7-21315-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
STAY, ENGINE 2
5PX-21316-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE
90105-10170-00
Superseded by 90105-10737-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
DAMPER 2
5C7-2112C-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
DAMPER 3
5C7-2112D-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, S/L FLANGE
95602-10200-00
|
$2.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
BOLT, FLANGE
90105-12309-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
STAY, ENGINE 3
5C7-21317-00-00
|
$173.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, HEX. SOCKET BUTTON
90111-10003-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE
90105-12041-00
Superseded by 90105-12018-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
STAY, ENGINE 6
5C7-21319-10-00
|
$209.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SEAL
1D7-21669-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SEAL
5C7-21268-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
90105-12067-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, HEX. SOCKET BUTTON
90111-10030-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
STAY, ENGINE 4
1D7-21318-01-00
|
$278.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE
95812-10030-00
Superseded by 95817-10030-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, S/L FLANGE
95602-10200-00
|
$2.70 | ||
|
Unavailable |
|||
|
#24
STAY 1
1D7-2142G-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
COLLAR
90387-12033-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
STAY, ENGINE 7
1D7-21387-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE
95812-10045-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT
90101-12025-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, PLATE
90201-12045-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
STAY 2
1D7-2142H-01-00
|
$12.49 | ||
|
Unavailable |
|||
|
#31
STAY 3
1D7-2142J-01-00
|
$12.49 | ||
|
Unavailable |
|||
|
#32
BOLT, FLANGE
90105-10049-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, FLANGE
90105-10060-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, FLANGE
90105-10167-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
NUT, SELF-LOCKING
90185-10008-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
BRACKET, MEMBER 1
1D7-2115L-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT, BUTTON HEAD
90111-08039-00
Superseded by 92014-08020-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT, FLANGE
90105-12016-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
NUT, SELF-LOCKING
90185-12002-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
STAY 1
1D7-2137F-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
BOLT, HEX. SOCKET BUTTON
90111-10009-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
BOLT, FLANGE
95812-10075-00
Superseded by 90105-10447-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
COLLAR
1D7-21116-01-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
BOLT, FLANGE
90105-10165-00
Superseded by 90105-10166-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
DAMPER, LOCATING 3
5C7-24183-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
CLAMP
90464-80002-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#47
STAY 1
5C7-2116A-00-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
BOLT, FLANGE
95027-06014-00
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#49
BOLT, HEX. SOCKET HEAD
91317-06020-00
|
$2.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#50
BRACKET, HORN
5C7-21343-00-00
|
$110.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
BOLT, HEX. SOCKET BUTTON
90111-08031-00
Superseded by 90111-08002-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#52
STOPPER, MAIN STAND
1D7-27114-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#53
COVER, HORN
5C7-2317L-00-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#54
BOLT, FLANGE
90105-06050-00
Superseded by 95027-06012-00
|
$4.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#55
BRACKET, SWITCH
5C7-21453-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#56
BOLT, FLANGE
95022-06016-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#57
COVER, SIDE 5
5C7-2171E-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#58
COLLAR
90387-06210-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#59
COVER, SIDE 6
5C7-2171X-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#60
COLLAR
90387-06192-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#61
GUIDE
5C7-2171H-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#62
BOLT, BUTTON HEAD
90111-06007-00
Superseded by 92017-06016-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#63
GROMMET
5C7-21773-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#64
PLUG
90338-16148-00
|
$12.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
