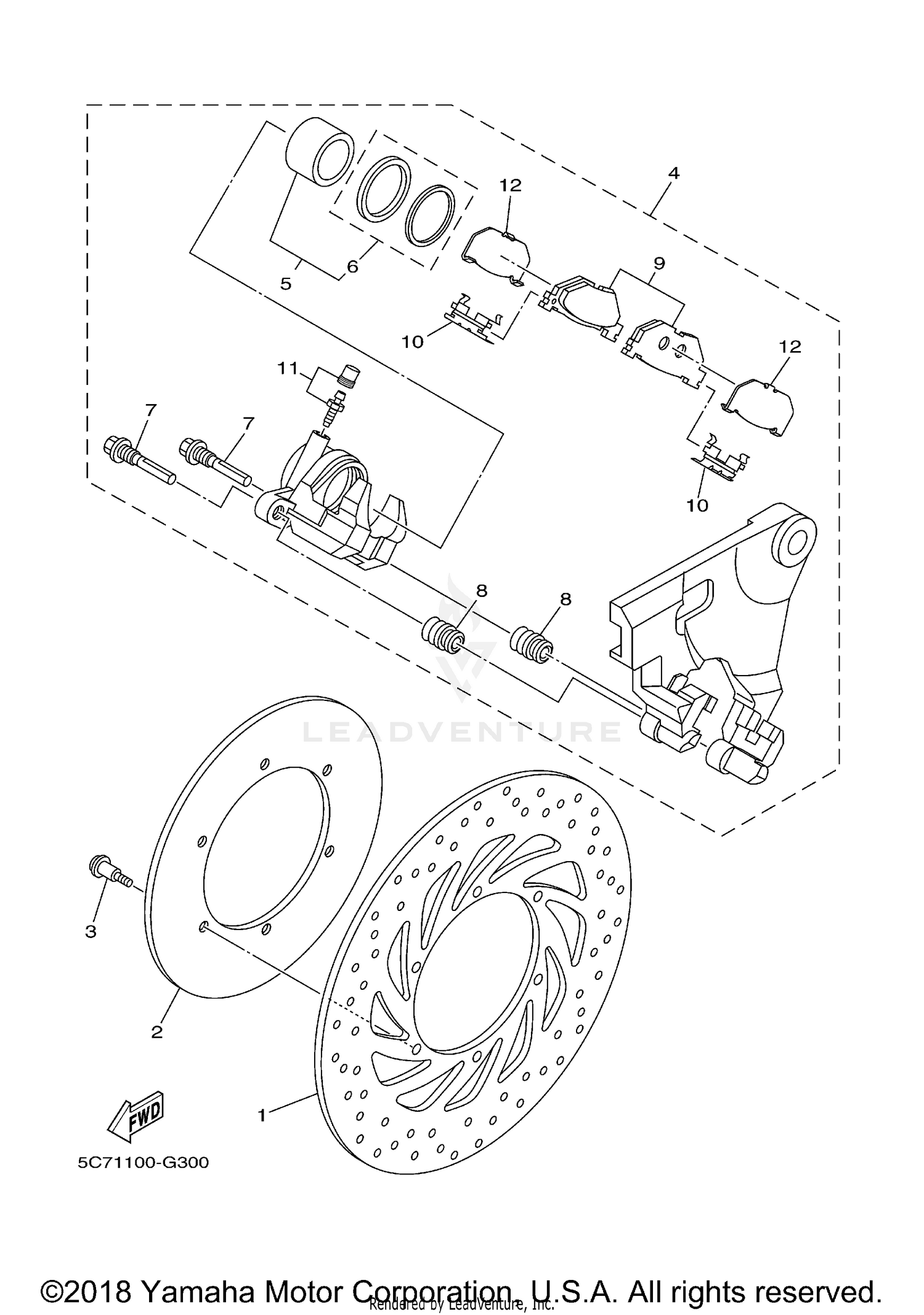

Rear Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DISC, REAR BRAKE 2
5C7-2582W-00-00
|
$220.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLATE, DISK
5C7-2581A-00-00
|
$334.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
90109-06049-00
Superseded by 90109-06050-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
CALIPER ASSY, REAR 2
5C7-2580W-10-00
Superseded by 5C7-2580W-20-00
|
$587.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PISTON ASSY, CALIPER
1D7-W0057-00-00
Superseded by 1D7-25802-00-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CALIPER SEAL KIT
5JW-W0047-00-00
Superseded by 5JW-25803-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN, SLIDE
3P6-25914-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOOT 2
4TT-25937-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRAKE PAD KIT 2
1D7-W0046-00-00
Superseded by 3D8-25806-00-00
|
$52.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
SUPPORT, PAD
1D7-25919-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BLEED SCREW KIT
15B-W0048-00-00
|
$21.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
SHIM, CALIPER
5GJ-25827-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
