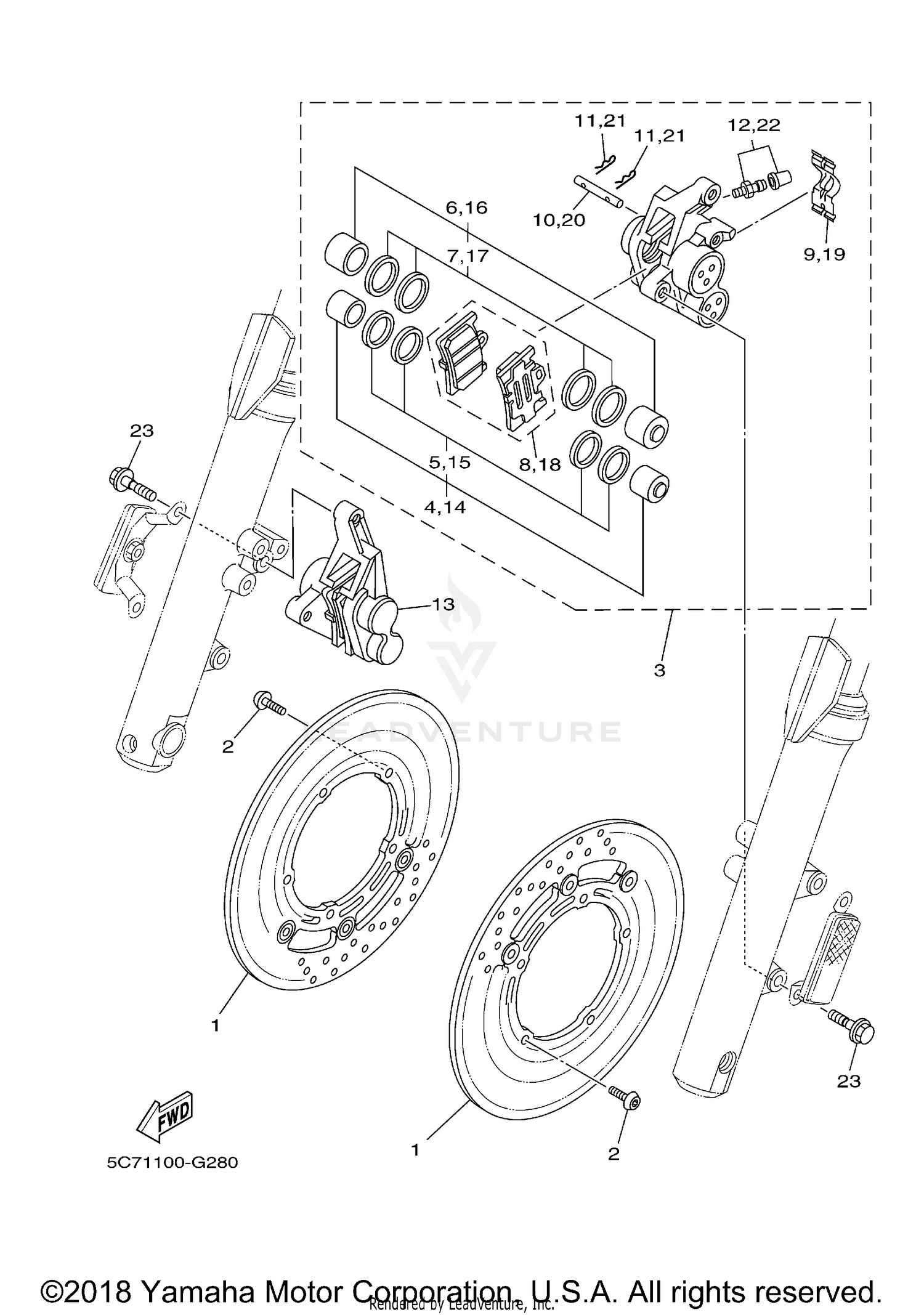

Front Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DISC BRAKE ASSY
5VX-2581T-10-00
|
$214.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW
90109-08006-00
Superseded by 90149-08052-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
CALIPER ASSY (LEFT)
1D7-2580T-00-00
|
$544.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PISTON ASSY, CALIPER
4SV-W0057-00-00
Superseded by 4SV-25802-00-00
|
$168.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CALIPER SEAL KIT
3MA-W0047-10-00
Superseded by 3MA-25803-10-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PISTON ASSY, CALIPER
4SV-W0057-10-00
Superseded by 4SV-25802-10-00
|
$212.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CALIPER SEAL KIT
3GM-W0047-10-00
Superseded by 3GM-25803-10-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRAKE PAD KIT
1D7-W0045-00-00
Superseded by 1D7-25805-00-00
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SUPPORT, PAD
4SV-25919-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, PAD
4SV-25924-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLIP
3GM-25925-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BLEED SCREW KIT
51H-W0048-00-00
Superseded by 1J3-W0048-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CALIPER ASSY (RIGHT)
1D7-2580U-00-00
|
$523.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PISTON ASSY, CALIPER
4SV-W0057-00-00
Superseded by 4SV-25802-00-00
|
$168.99 | ||
|
Unavailable |
|||
|
#15
CALIPER SEAL KIT
3MA-W0047-10-00
Superseded by 3MA-25803-10-00
|
$60.99 | ||
|
Unavailable |
|||
|
#16
PISTON ASSY, CALIPER
4SV-W0057-10-00
Superseded by 4SV-25802-10-00
|
$212.99 | ||
|
Unavailable |
|||
|
#17
CALIPER SEAL KIT
3GM-W0047-10-00
Superseded by 3GM-25803-10-00
|
$58.99 | ||
|
Unavailable |
|||
|
#18
BRAKE PAD KIT
1D7-W0045-00-00
Superseded by 1D7-25805-00-00
|
$91.99 | ||
|
Unavailable |
|||
|
#19
SUPPORT, PAD
4SV-25919-00-00
|
$38.99 | ||
|
Unavailable |
|||
|
#20
PIN, PAD
4SV-25924-00-00
|
$46.99 | ||
|
Unavailable |
|||
|
#21
CLIP
3GM-25925-00-00
|
$12.99 | ||
|
Unavailable |
|||
|
#22
BLEED SCREW KIT
51H-W0048-00-00
Superseded by 1J3-W0048-00-00
|
$33.99 | ||
|
Unavailable |
|||
|
#23
BOLT, WASHER BASED
90105-10638-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
