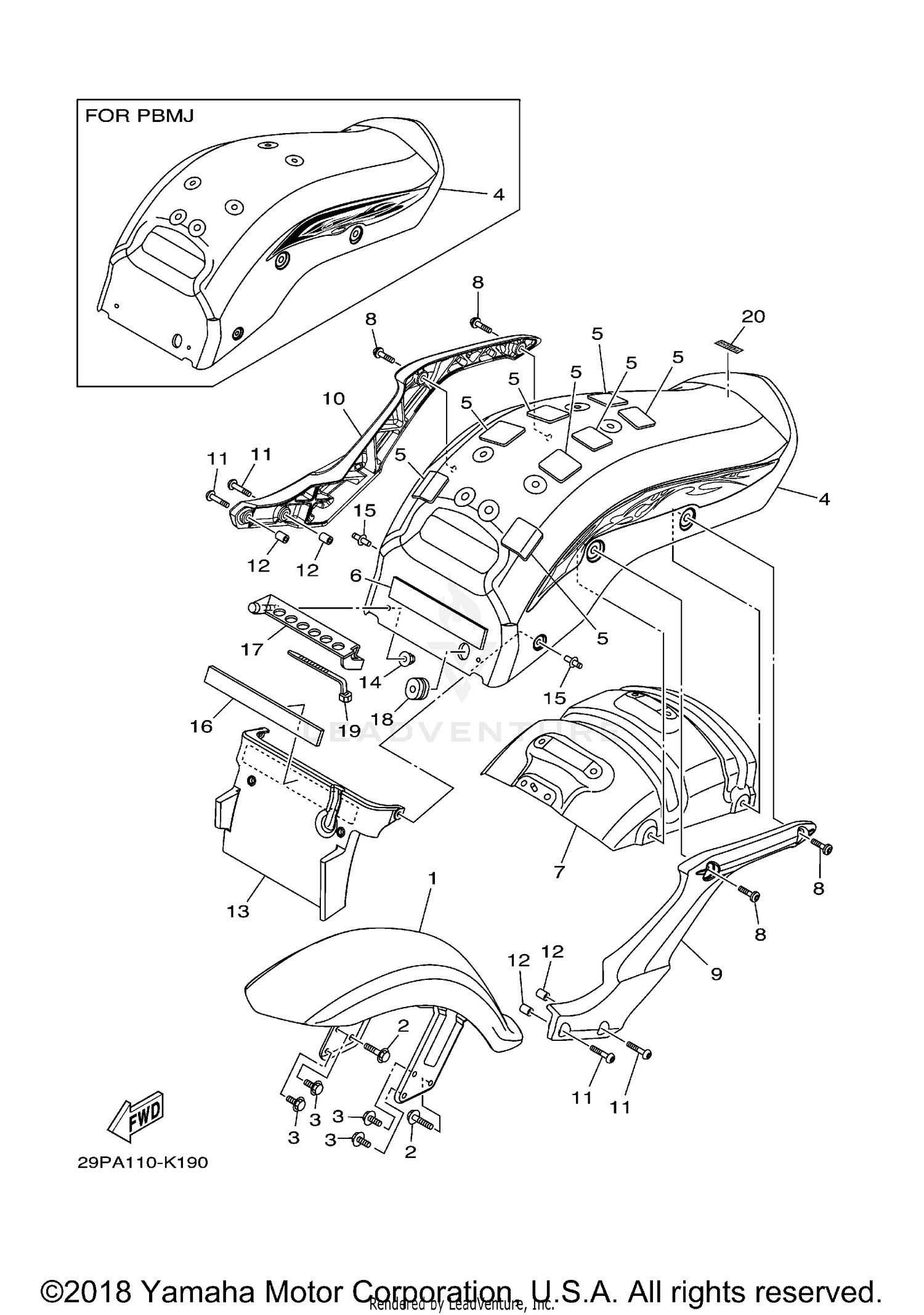

Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FENDER COMP.
5C7-YK215-01-P1
Superseded by 5C7-YK215-02-P1
|
$1,041.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
FRONT FENDER COMP.
5C7-YK215-01-P5
Superseded by 5C7-YK215-02-P5
|
$829.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, WITH WASHER
90119-08111-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, WITH WASHER
90119-08110-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
REAR FENDER COMP.
5C7-Y2161-80-P1
|
$1,094.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
REAR FENDER COMP.
5C7-Y2161-90-P5
|
$875.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SEAL
5PX-21669-01-00
|
$12.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
DAMPER
5C7-21649-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
STAY, REAR
5C7-21643-00-00
|
$290.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, HEXAGON SOCKET HEAD
90110-08071-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
STAY, FENDER 1
5C7-21613-01-00
|
$658.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
STAY, FENDER 2
5C7-21614-01-00
|
$652.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, HEX. SOCKET BUTTON
92014-10050-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, DOWEL A
99530-14016-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#13
GUARD, MUD
5C7-21629-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, U FLANGE
95602-06200-00
Superseded by 95604-06200-00
|
$2.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
RIVET
90269-07077-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
DAMPER 2
5C7-21639-00-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#17
BRACKET, REAR STAY
5C7-21688-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
GROMMET
90480-01015-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLAMP
90464-13077-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
EMBLEM, YAMAHA
1D6-2153E-00-00
Superseded by 3WF-2153E-71-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
