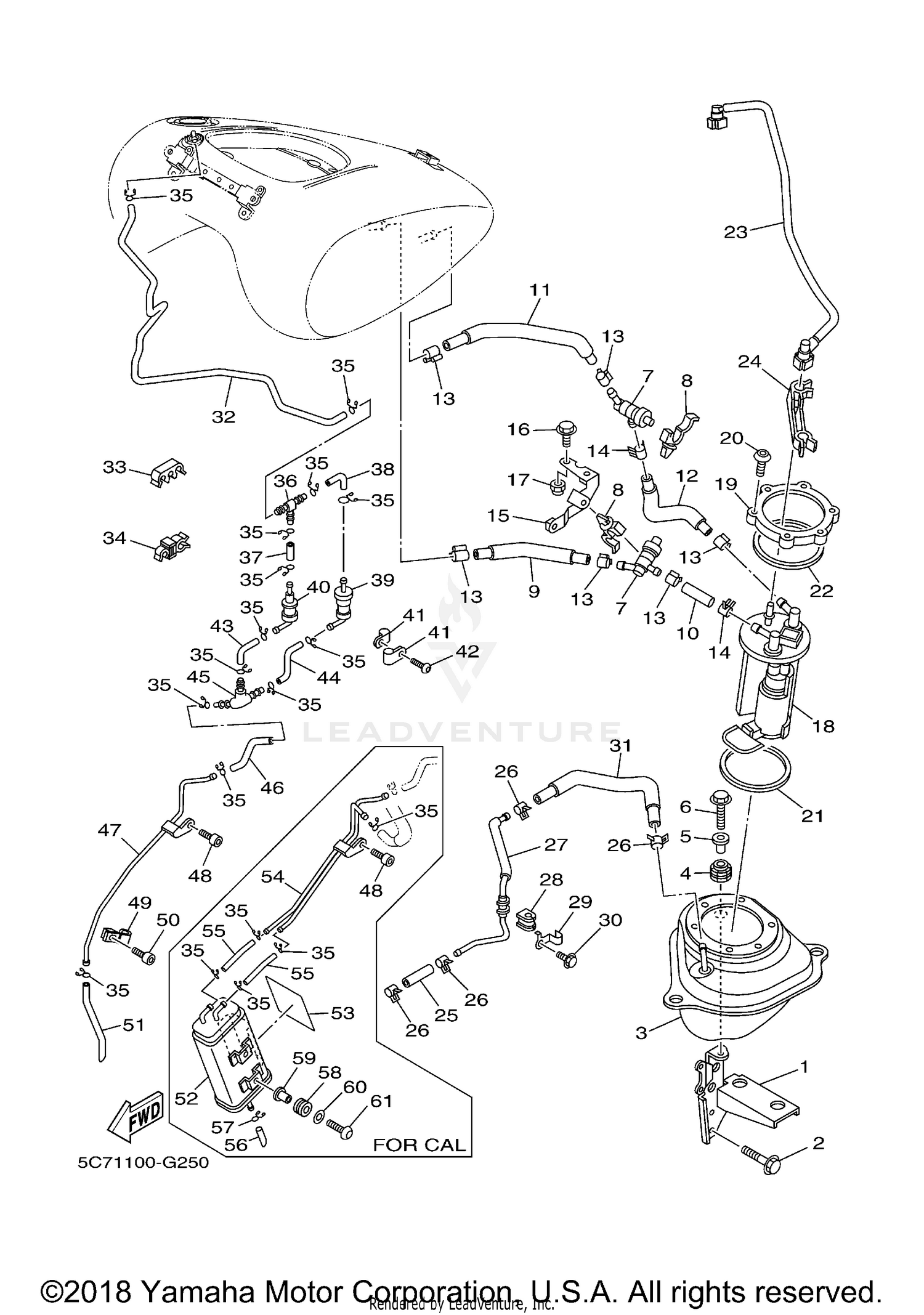

Fuel Tank 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAY, SIDE COVER 1
5C7-2172E-00-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, FLANGE
95027-08055-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
SUB FUEL TANK
1D7-24280-00-00
|
$481.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
DAMPER, LOCATING 5
1D7-24185-00-00
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR
90387-0700G-00
Superseded by 90387-0614M-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT,FLANGE
95817-06030-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#7
FUEL PIPE JOINT COMP. 2
1D7-24305-00-00
|
$168.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP
90464-20010-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIPE, FUEL 1
5C7-24311-00-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIPE 2
5C7-24312-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIPE 3
5C7-24313-00-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIPE 4
5C7-24314-00-00
|
$83.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLIP
5PX-2411M-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLIP
90467-16009-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BRACKET, CANISTOR
1D7-2419F-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, WITH WASHER
90119-05004-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT
95307-05800-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
FUEL PUMP COMP.
1D7-13907-00-00
Superseded by 1D7-13907-01-00
|
$819.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BRACKET, FUEL PUMP
5PX-24491-00-00
|
$83.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, HEX. SOCKET BUTTON
90111-05026-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
O-RING
5PX-24486-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
PLATE, DAMPER
5PX-24145-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIPE, FUEL 1
1D7-13971-00-00
|
$100.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLAMP
90464-15004-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIPE, FUEL 3
5C7-13973-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLIP
90467-13071-00
Superseded by 90467-13133-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
PIPE, FUEL
5C7-14295-00-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
GROMMET
5PX-14435-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
HOLDER
5PX-14261-00-00
Superseded by 5PX-14261-01-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, FLANGE
90105-06052-00
Superseded by 95022-06010-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
PIPE, FUEL 4
5C7-13974-00-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
PIPE 6
5C7-24316-10-00
|
$112.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
PIPE 6
5C7-24316-00-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
CLAMP
90464-11008-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#34
CLAMP
90464-09022-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#35
CLIP
90467-09002-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#35
CLIP
90467-09002-00
|
$2.70 | ||
|
Unavailable |
|||
|
#36
WAY 3
90413-06031-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
PIPE 7
5C7-24317-00-00
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#38
PIPE 10
5C7-24321-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
ROLL OVER VALVE ASSY
5RB-24180-00-00
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
ROLL OVER VALVE ASSY
5LV-24180-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
CLAMP
90461-15139-00
Superseded by 90464-15014-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#42
BOLT, BUTTON HEAD
92012-05014-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#43
PIPE 11
5C7-24322-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
PIPE 12
5C7-24323-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
WAY 3
90413-06002-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
PIPE 13
5C7-24324-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#47
PIPE 14
5C7-24325-00-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
BOLT, HEXAGON SOCKET HEAD
91314-06010-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#49
CLAMP, FUEL PIPE 1
5C7-24366-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
BOLT, HEXAGON SOCKET HEAD
91314-06010-00
|
$3.10 | ||
|
Unavailable |
|||
|
#51
PIPE 15
5C7-243A1-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#52
CANISTER ASSY
5C7-24170-00-00
|
$269.99 | ||
|
Available to order. Add to View Price |
|||
|
#53
PROTECTOR
5BM-21652-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#54
PIPE 16
5C7-243A2-00-00
|
$215.99 | ||
|
Available to order. Add to View Price |
|||
|
#55
PIPE 17
5C7-243A3-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#56
PIPE 14
3D8-24325-00-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#57
CLIP
90467-10041-00
Superseded by 90467-100A1-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#58
GROMMET
90480-13163-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#59
COLLAR
90387-062L2-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#60
WASHER, PLATE
90201-06023-00
Superseded by 90201-06057-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#61
BOLT
90111-06067-00
Superseded by 90111-06046-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
