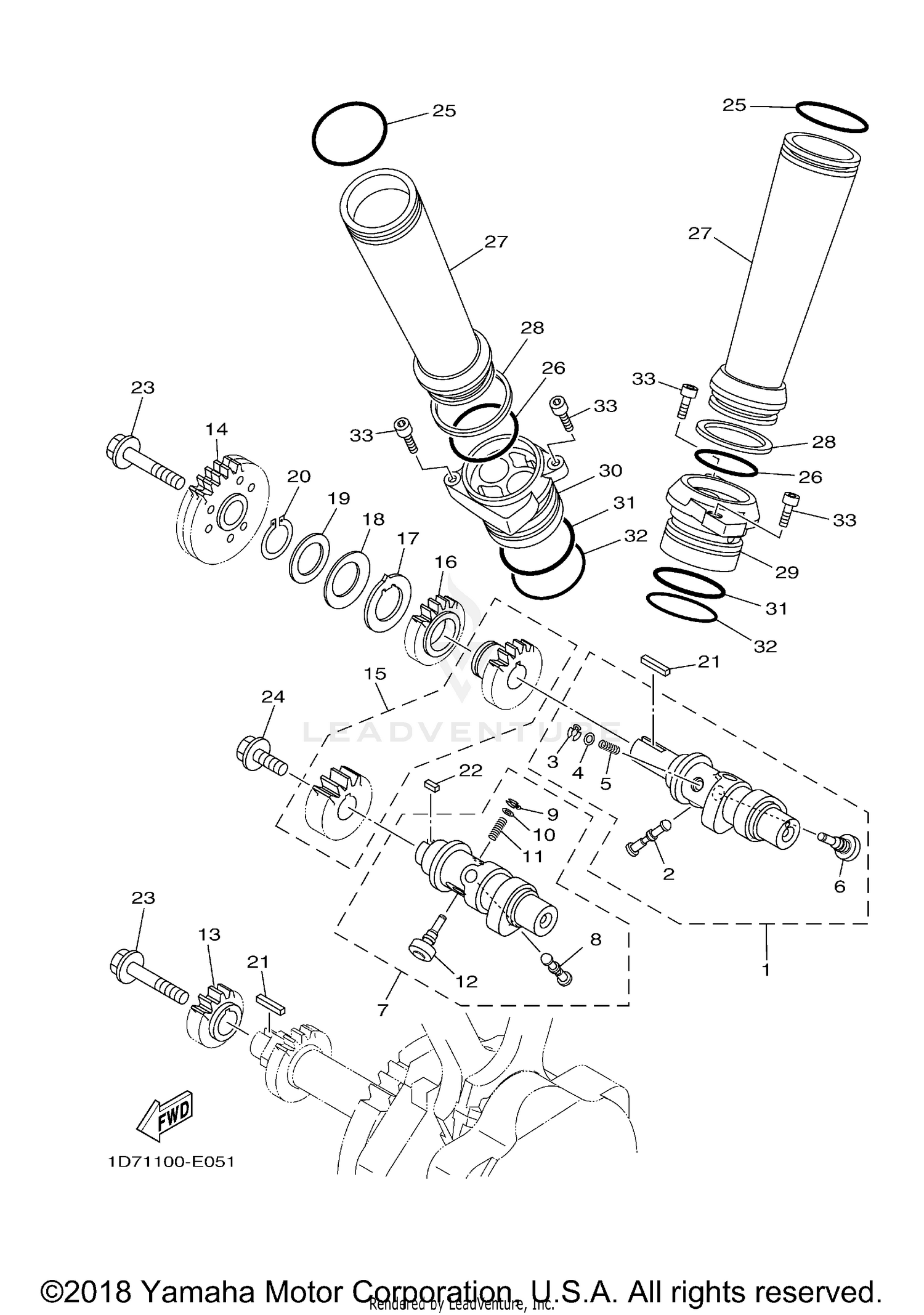

Camshaft Chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAMSHAFT ASSY 1
1D7-12170-03-00
|
$419.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIN, DECOMPRESSION
1D7-12276-03-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CIRCLIP
93430-04055-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
90201-05M04-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, DECOMPRESSION
1D7-12287-00-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#6
DECOMPRESSION ASSY
1D7-12280-00-00
|
$151.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAMSHAFT ASSY 2
1D7-12180-03-00
|
$555.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN, DECOMPRESSION
1D7-12276-03-00
|
$31.99 | ||
|
Unavailable |
|||
|
#9
CIRCLIP
93430-04055-00
|
$4.50 | ||
|
Unavailable |
|||
|
#10
WASHER, PLATE
90201-05M04-00
|
$2.55 | ||
|
Unavailable |
|||
|
#11
SPRING, DECOMPRESSION
1D7-12287-00-00
|
$1.60 | ||
|
Unavailable |
|||
|
#12
DECOMPRESSION ASSY
1D7-12280-00-00
|
$151.99 | ||
|
Unavailable |
|||
|
#13
GEAR, BREAKER DRIVE
1D7-11534-00-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
DRIVEN GEAR COMP.
1D7-Y115B-00-00
|
$262.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
DRIVE GEAR SET
1D7-W115A-00-00
|
$166.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
GEAR 2
4WM-11544-01-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER 1
1D7-11557-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPRING
4WM-12216-01-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
90201-283U6-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#20
CIRCLIP
99009-28400-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
KEY, STRAIGHT
90282-03002-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
KEY, STRAIGHT
90282-04001-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE
90105-10159-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, WASHER BASED
90105-10445-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
O-RING
93210-53638-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
O-RING
93210-472A9-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
GUIDE, PUSH ROD
1D7-12155-10-00
|
$302.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
CAP, TENSIONER CASE
5PX-12215-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
HOUSING
1D7-12147-00-00
|
$158.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
HOUSING
1D7-12148-00-00
|
$260.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
O-RING
93210-54175-00
|
$13.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
O-RING
93210-54452-00
|
$11.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
BOLT, HEXAGON SOCKET HEAD
90110-06295-00
Superseded by 91314-06025-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
