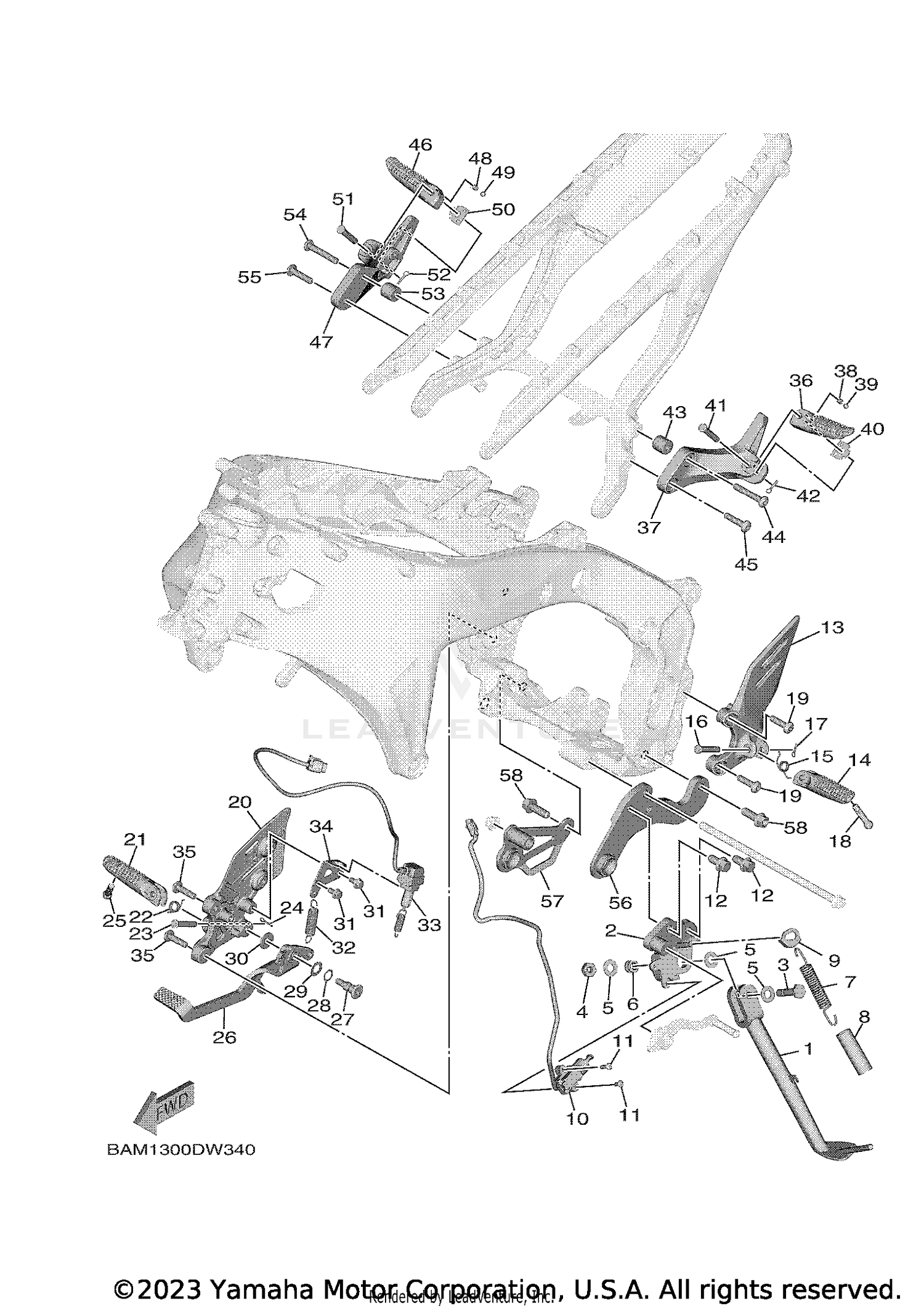

Stand & Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAND, SIDE
B7N-27311-00-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BRACKET, SIDE STAN
B7N-27321-00-00
|
$120.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
90101-10034-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT, SELF-LOCKING
90185-10012-00
|
$3.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
WASHER, PLATE
90201-10075-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR
90387-10020-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING TENSION
90506-26014-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOSE (L60)
90445-197J2-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#9
LINK, SIDE STAND
B7N-27315-00-00
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#10
SWITCH, SIDE STAND
B7N-82566-00-00
Superseded by B7N-82566-01-00
|
$46.99 | ||
|
Unavailable |
|||
|
#11
SCREW
90149-05037-00
Superseded by 90149-05038-00
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE
90105-10195-00
Superseded by 95817-10020-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BRACKET 2
B7N-27442-00-00
|
$98.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
FOOTREST 3
B7N-27451-00-00
|
$19.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
SPRING, TORSION
90508-18134-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
PIN, CLEVIS
91701-08040-00
Superseded by 91702-08040-00
|
$4.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
PIN. COTTER
91402-25015-00
Superseded by 91490-25020-00
|
$3.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BOLT
90109-08231-00
Superseded by 90109-08202-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, HEXAGON SOCKET HEAD
90110-08220-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BRACKET 3
B7N-27443-00-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
FOOTREST 4
B7N-27461-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPRING, TORSION
90508-18135-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIN, CLEVIS
91701-08040-00
Superseded by 91702-08040-00
|
$4.85 | ||
|
Unavailable |
|||
|
#24
PIN. COTTER
91402-25015-00
Superseded by 91490-25020-00
|
$3.45 | ||
|
Unavailable |
|||
|
#25
BOLT
90109-08231-00
Superseded by 90109-08202-00
|
$5.49 | ||
|
Unavailable |
|||
|
#26
PEDAL, BRAKE
B7N-27211-00-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT
4BP-27434-01-00
Superseded by 4BP-27434-11-00
|
$4.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
WASHER, WAVE
90206-12074-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
WASHER, PLATE
90201-12051-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, PLATE
90201-08053-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
BOLT, FLANGE DEEP
95D02-06012-00
|
$0.50 | ||
|
Available to order. Add to View Price |
|||
|
#32
SPRING, TENSION
90506-18022-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
STOP SWITCH ASSY
BAM-82530-00-00
Superseded by BAM-82530-01-00
|
$51.99 | ||
|
Unavailable |
|||
|
#34
STAY STOP SWITCH
B7N-2144G-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, HEXAGON SOCKET HEAD
90110-08220-00
|
$8.49 | ||
|
Unavailable |
|||
|
#36
FOOTREST, REAR 1
B7N-27431-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
BRACKET 4
B7N-2741L-00-00
|
$97.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
SPRING, COMPRESSION
90501-12743-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#39
BALL
93501-04011-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
WASHER, SPECIAL
5VX-27437-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
PIN, CLEVIS
91702-08040-00
|
$4.85 | ||
|
Unavailable |
|||
|
#42
PIN. COTTER
91401-25015-00
Superseded by 91490-25020-00
|
$3.45 | ||
|
Unavailable |
|||
|
#43
COLLAR
90387-08124-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
BOLT, HEX. SOCKET BUTTON
90111-08005-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
BOLT, HEXAGON SOCKET HEAD
90110-08071-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#46
FOOTREST, REAR 2
B7N-27441-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#47
BRACKET 5
B7N-2742L-00-00
|
$97.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
SPRING, COMPRESSION
90501-12743-00
|
$5.49 | ||
|
Unavailable |
|||
|
#49
BALL
93501-04011-00
|
$9.49 | ||
|
Unavailable |
|||
|
#50
WASHER, SPECIAL
5VX-27437-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#51
PIN, CLEVIS
91702-08040-00
|
$4.85 | ||
|
Unavailable |
|||
|
#52
PIN. COTTER
91401-25015-00
Superseded by 91490-25020-00
|
$3.45 | ||
|
Unavailable |
|||
|
#53
COLLAR
90387-08124-00
|
$10.49 | ||
|
Unavailable |
|||
|
#54
BOLT, HEX. SOCKET BUTTON
90111-08005-00
|
$5.99 | ||
|
Unavailable |
|||
|
#55
BOLT, HEXAGON SOCKET HEAD
90110-08071-00
|
$10.49 | ||
|
Unavailable |
|||
|
#56
STAY, MUFFLER 1
B7N-21445-10-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#57
STAY, MUFFLER 2
B7N-21446-10-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#58
BOLT, FLANGE
90105-10452-00
Superseded by 90105-10189-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
