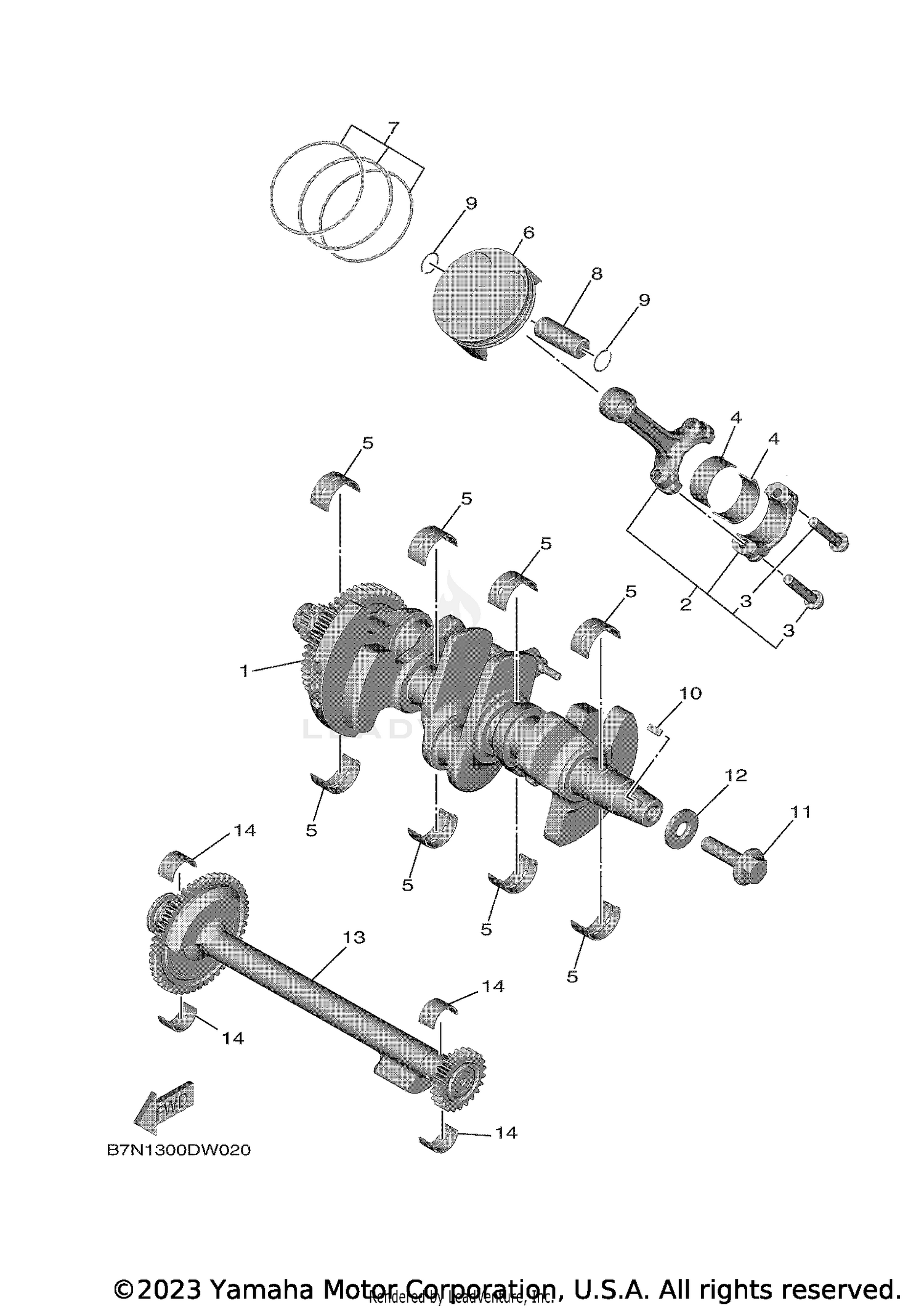

Crankshaft & Piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT ASSY
B7N-11400-00-00
Superseded by B7N-11400-01-00
|
$603.99 | ||
|
Unavailable |
|||
|
#2
CONNECTING ROD ASS
B7N-11650-00-00
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, CONNECTING ROD
1RC-11654-00-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLANE BEARING, CONNECTING ROD
1RC-11656-20-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLANE BEARING, CONNECTING ROD
1RC-11656-30-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLANE BEARING, CONNECTING ROD
1RC-11656-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLANE BEARING, CONNECTING ROD
1RC-11656-10-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLANE BEARING, CRA
B7N-11416-A0-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLANE BEARING, CRA
B7N-11416-10-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLANE BEARING, CRA
B7N-11416-20-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLANE BEARING, CRA
B7N-11416-30-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLANE BEARING, CRA
B7N-11416-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
PISTON (STD)
B7N-11631-00-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PISTON RING SET (S
B7N-11603-00-00
Superseded by B7N-11603-01-00
|
$17.49 | ||
|
Unavailable |
|||
|
#8
PIN, PISTON
39P-11633-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CIRCLIP
93450-18157-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
KEY, WOODRUFF
90280-05029-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE
90105-12101-00
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
90201-12008-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BALANCER ASSY
1RC-11500-01-00
|
$381.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLANE BEARING, BALANCE WEIGHT
2S3-11413-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLANE BEARING, BALANCE WEIGHT
2S3-11413-10-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLANE BEARING, BALANCE WEIGHT
2S3-11413-20-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLANE BEARING, BALANCE WEIGHT
2S3-11413-30-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLANE BEARING, BALANCE WEIGHT
2S3-11413-40-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
