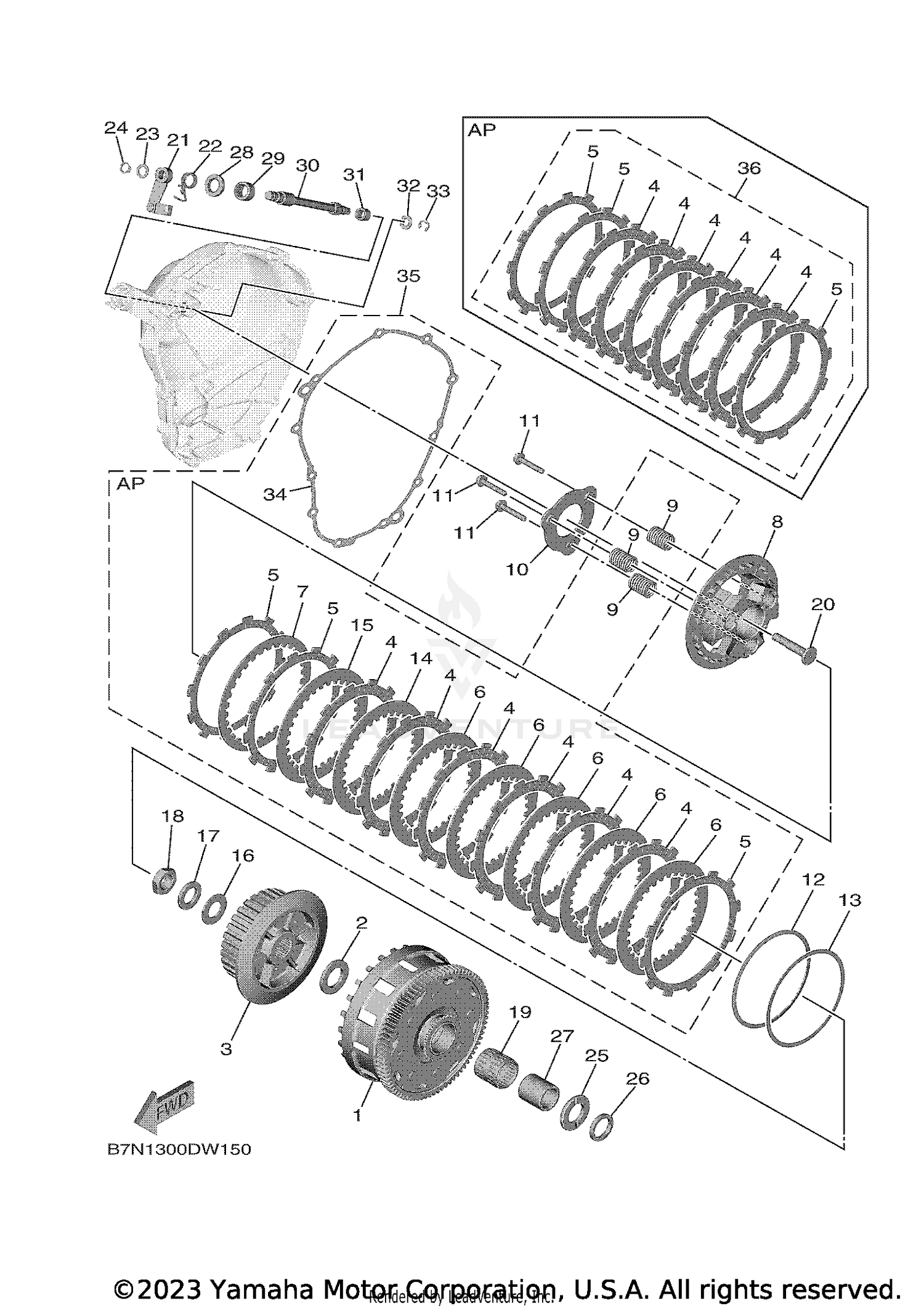

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PRIMARY DRIVEN GEAR COMP.
B7N-16150-00-00
|
$520.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLATE, THRUST 1
363-16154-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOSS, CLUTCH
B7N-16371-00-00
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLATE, FRICTION
B7N-16321-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE, FRICTION 2
B90-16331-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, CLUTCH 2
5VY-16325-00-00
Superseded by 5VY-16325-20-00
|
$12.49 | ||
|
Unavailable |
|||
|
#7
PLATE, CLUTCH 1
1TD-16324-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PRESSURE PLATE ASS
B7N-16350-00-00
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, COMPRESSIO
B7N-16173-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, PRESSURE 2
B90-16352-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, SPRING
2CR-16337-00-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING.,CUSHION
1TD-16383-01-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE, SEAT
1TD-16384-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLATE, CLUTCH 1
BR9-16324-00-00
Superseded by BR9-16324-10-00
|
$11.49 | ||
|
Unavailable |
|||
|
#14
PLATE, CLUTCH 2
5VY-16325-00-00
Superseded by 5VY-16325-20-00
|
$12.49 | ||
|
Unavailable |
|||
|
#14
PLATE, CLUTCH 2
4B1-16325-00-00
|
$25.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
PLATE, CLUTCH 1
BR9-16324-00-00
Superseded by BR9-16324-10-00
|
$11.49 | ||
|
Unavailable |
|||
|
#15
PLATE, CLUTCH 2
5VY-16325-00-00
Superseded by 5VY-16325-20-00
|
$12.49 | ||
|
Unavailable |
|||
|
#15
PLATE, CLUTCH 2
4B1-16325-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#16
WASHER, PLATE
90201-20030-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
WASHER, CONICAL SPRING
90208-20001-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
90179-20010-00
Superseded by 90179-20020-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BEARING
93310-33277-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
ROD, PUSH 1
B7N-16356-00-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
PUSH LEVER ASSY
1RC-16340-00-00
Superseded by 1RC-16340-01-00
|
$31.99 | ||
|
Unavailable |
|||
|
#22
SPRING, TORSION
90508-18051-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLATE
90201-10029-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
CIRCLIP
99009-10400-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
PLATE, THRUST 2
B7N-16164-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
PLATE, THRUST 2
2C0-16164-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SPACER 1
1RC-16181-00-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
OIL SEAL
93102-15212-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
BEARING
93315-21570-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
AXLE, PUSH LEVER
5VY-16382-10-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
BEARING
93317-11096-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, PLATE
92907-08600-00
|
$3.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
CIRCLIP
99001-07600-00
Superseded by 99080-07600-00
|
$3.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
GASKET, CRANKCASE COVER 2
B7N-15461-00-00
Superseded by B7N-15461-01-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
CLUTCH PLATE KIT
B7N-W001G-00-00
Superseded by B7N-W001G-01-00
|
$203.99 | ||
|
Unavailable |
|||
|
#36
FRICTION PLATE KIT
B7N-W001M-00-00
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
