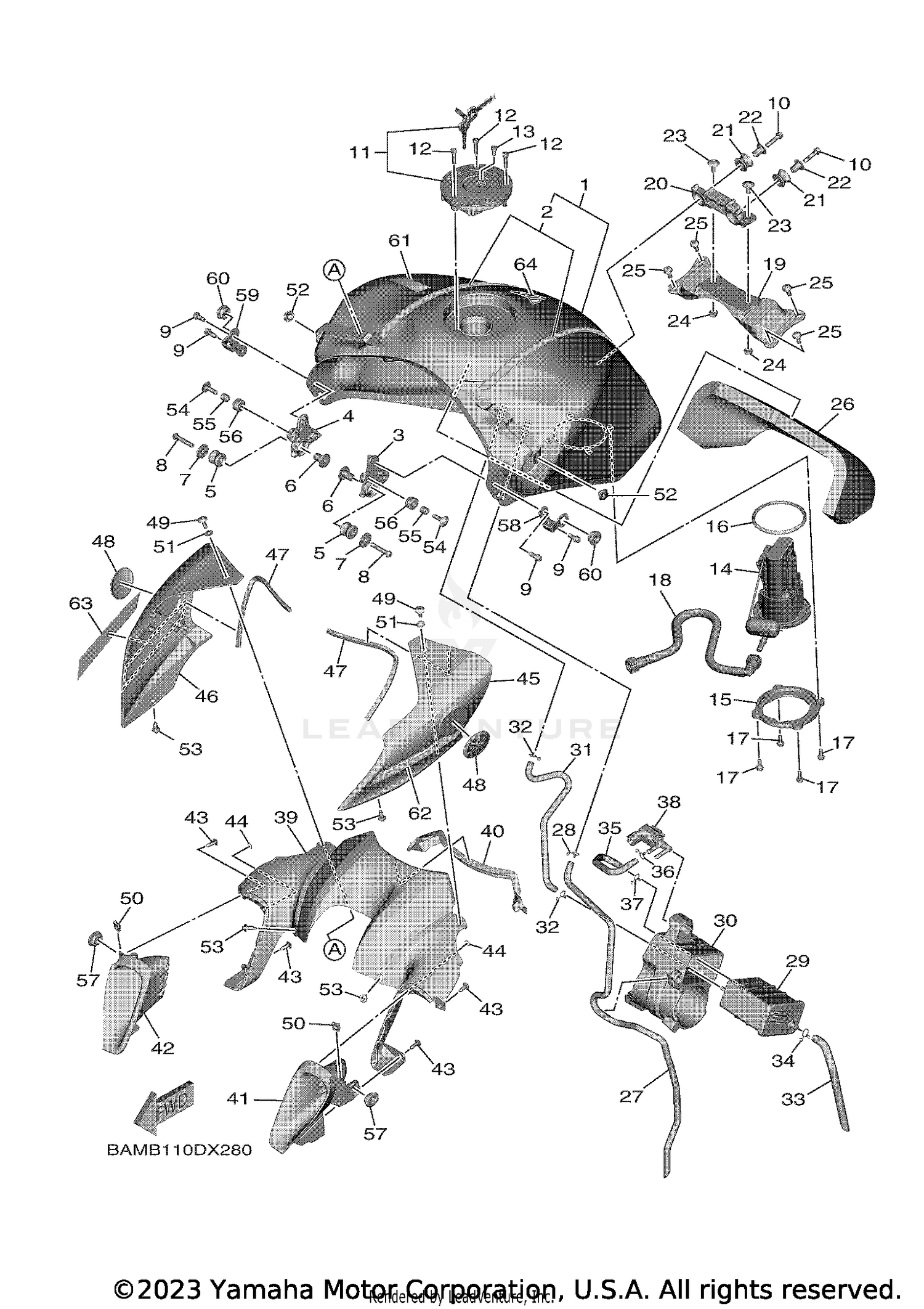

Fuel Tank 2 (for Cal) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
B7N-Y2410-00-04
|
$811.99 | ||
|
Unavailable |
|||
|
#2
GRAPHIC SET
BAM-24240-00-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BRACKET, FUEL TANK
B7N-24191-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BRACKET, FUEL TANK
B7N-24192-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
GROMMET
90480-18008-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR
90387-06266-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
90201-06072-00
|
$10.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
BOLT, BUTTON HEAD
92012-06035-00
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE DEEP
95E37-06014-00
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE DEEP RECESS
95E32-06025-00
|
$0.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
CAP ASSY
39P-24602-00-00
|
$278.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
BOLT, HEXAGON SOCKET HEAD
90110-05112-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, HEXAGON SOCKET HEAD
91312-05010-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
FUEL PUMP COMP
1RC-13907-01-00
Superseded by 1RC-13907-10-00
|
$489.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BRACKET, FUEL PUMP
1RC-24491-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING
1RC-24486-00-00
|
$33.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BOLT, HEXAGON SOCKET HEAD
90110-05028-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
PIPE, FUEL 1
B7N-13971-00-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BRACKET, TANK FITT
B7N-2413Y-00-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BRACKET, CANISTOR
B7N-2419F-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
GROMMET
3D7-24339-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
COLLAR
90387-06136-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT,0HEX. SOCKET BUTTON
90111-06136-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, WITH WASHER
95702-06500-00
|
$2.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
BOLT, HEX. SOCKET BUTTON
90111-06029-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
DAMPER, PLATE 1
B7N-2414H-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
PIPE 5
B7N-24315-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLIP
90467-090A2-00
|
$4.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
CANISTER ASSY
B7N-24170-00-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
DAMPER, LOCATING 3
B7N-24183-00-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
PIPE 3
B7N-24313-10-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
CLIP
90467-090A2-00
|
$4.75 | ||
|
Unavailable |
|||
|
#33
PIPE 6
B7N-24316-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
CLIP
90467-10041-00
Superseded by 90467-100A1-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
PIPE 7
B7N-24317-10-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
CLIP
90467-090A2-00
|
$4.75 | ||
|
Unavailable |
|||
|
#37
CLIP
90467-09103-00
Superseded by 90467-090A2-00
|
$4.75 | ||
|
Unavailable |
|||
|
#38
SOLENOID VALVE ASS
B7N-86120-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
COVER, TANK
B7N-241B1-01-00
|
$126.99 | ||
|
Unavailable |
|||
|
#40
MOLE, FUEL TANK 1
B7N-2418B-00-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
GRILL, AIR INTAKE
B7N-2837N-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
GRILL, AIR INTAKE
B7N-2837R-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
SCREW, TRUSS HEAD TAPPING
97707-50016-00
|
$1.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#44
NUT, SPRING
90183-05M02-00
|
$0.50 | ||
|
Available to order. Add to View Price |
|||
|
#45
SCOOP, AIR 1
B7N-2137W-00-P2
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
SCOOP, AIR 2
B7N-2137X-00-P2
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
DAMPER PLATE
90520-07002-00
|
$1.50 | ||
|
Available to order. Add to View Price |
|||
|
#48
EMBLEM
1RC-2413B-01-00
Superseded by 1RC-2413B-02-00
|
$22.99 | ||
|
Unavailable |
|||
|
#49
BOLT, HEXAGON SOCKET HEAD
90111-05007-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#50
NUT, SPRING
90183-05042-00
|
$1.00 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#51
WASHER, PLATE
90202-05180-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#52
RIVET
90269-09006-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#53
RIVET
90269-06001-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#54
BOLT, HEX. SOCKET BUTTON
90111-06137-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#55
COLLAR
90387-06057-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#56
GROMMET
90480-14003-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#57
GROMMET
90480-01558-00
|
$4.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#58
PLATE, FITTING
B7N-2411F-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#59
HOOK TANK FITTING
B7N-2411L-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#60
GROMMET
90480-13567-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#61
LABEL, WARNING GENER
29P-2816R-01-00
|
$3.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#62
GRAPHIC 1
BAM-2173E-10-00
|
$9.49 | ||
|
Unavailable |
|||
|
#63
GRAPHIC 2
BAM-2173F-10-00
|
$10.49 | ||
|
Unavailable |
|||
|
#64
EMBLEM 1
B67-24161-30-00
|
$20.99 | ||
|
Unavailable |
|||
