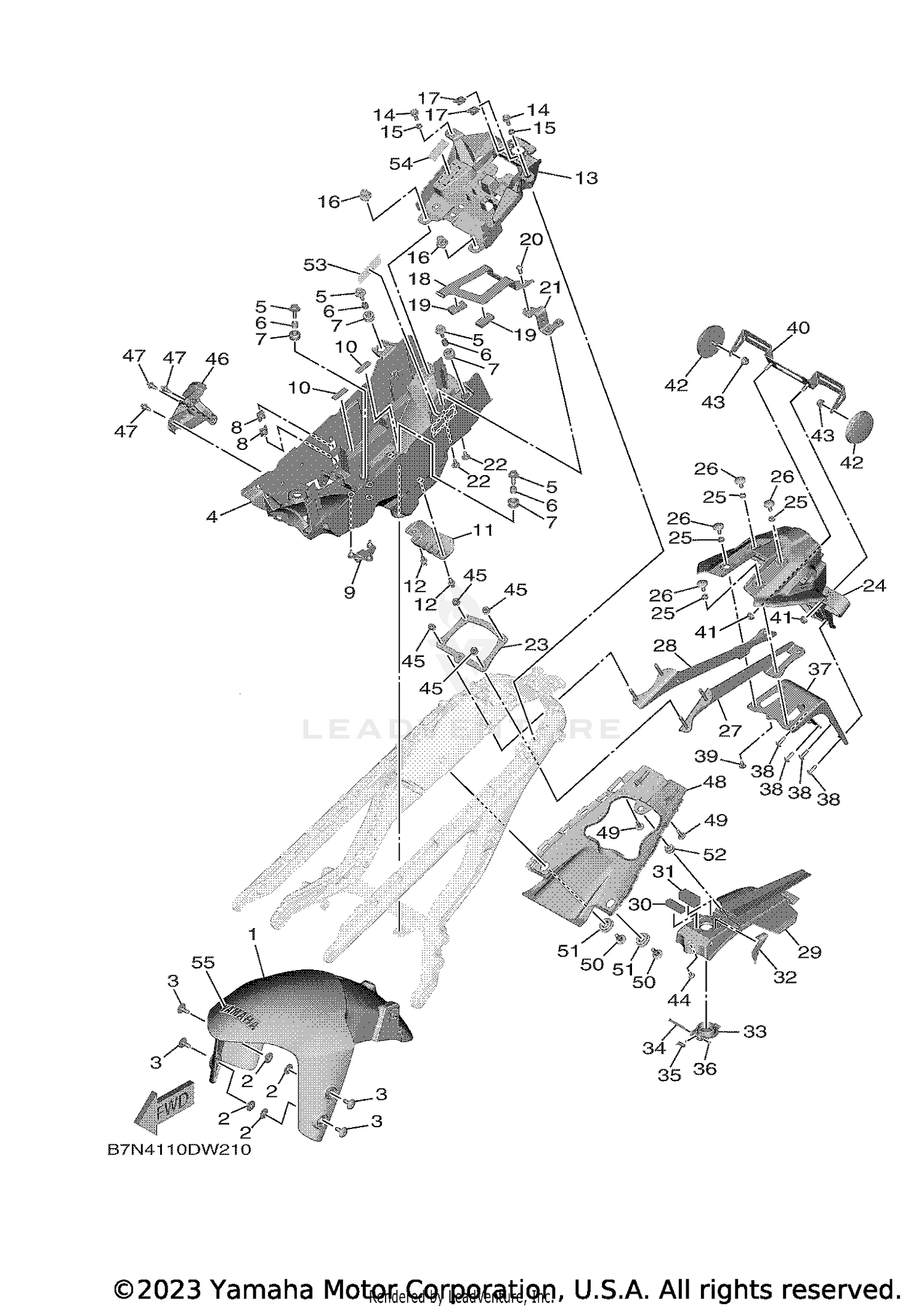

Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT
B7N-21511-00-P2
|
$150.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COLLAR
90387-07717-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLTHEX. SOCKET BUTTON
90111-06191-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOX, BATTERY 1
B7N-8212B-01-00
|
$29.99 | ||
|
Unavailable |
|||
|
#5
BOLT WITH WASHER
90119-06313-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR
90387-060A7-00
Superseded by 90387-06113-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
GROMMET
90480-14035-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, SPRING
90183-06069-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER
B7N-2135F-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
DAMPER
B7N-21649-00-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#11
LID
B7N-2160F-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
RIVET
90269-06018-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOX
B7N-2160E-01-00
|
$11.49 | ||
|
Unavailable |
|||
|
#14
BLOT, FLANGE DEEP RE
95D32-06016-00
|
$0.50 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR
90387-060U2-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
RIVET
90269-07076-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
NUT, SPRING
90183-06069-00
|
$7.49 | ||
|
Unavailable |
|||
|
#18
BAND, BATTERY
B7N-82137-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
DAMPER PLATE
90520-06009-00
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, BUTTON HEAD
92012-06012-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#21
BRACKET, REAR STAY
B7N-21688-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, HEX. SOCKET BUTTON
90111-05049-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#23
BRACKET, REAR FEND
B7N-21261-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
GUARD, MUD
B7N-21629-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
COLLAR
90387-06372-00
Superseded by 90387-06106-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT,HEX. SOCKET BUTTON
90111-06190-00
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#27
STAY 1
B7N-2164F-00-00
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
STAY 2
B7N-2164G-00-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
COVER, REAR FENDER 2
B7N-2163E-01-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
DAMPER
2D1-21649-00-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#31
DAMPER
3P6-21649-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
BAND
B7N-21646-00-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#33
CAP, ROTOR
B7N-2465B-01-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
PIN
90249-03002-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
SPRING, TORSION
90508-09007-00
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#36
CIRCLIP, E-TYPE
93430-02001-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
STAY, PLATE
B7N-21682-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
SCREW, ROUND TAPPING
90160-05012-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
RIVET
90269-05039-00
Superseded by 90269-05055-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
BRACKET, LICENSE
1RC-84751-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
NUT, U
95607-06100-00
Superseded by 95617-06100-00
|
$2.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#42
REFLECTOR, REAR 1
449-85131-02-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
NUT, FLANGE
95707-05500-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
RIVET
90269-05039-00
Superseded by 90269-05055-00
|
$9.49 | ||
|
Unavailable |
|||
|
#45
NUT, U FLANGE
95602-06200-00
Superseded by 95604-06200-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#46
COVER, REAR FENDER
B7N-2163A-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#47
RIVET
90269-06001-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#48
COVER, REAR FENDER
B7N-21651-01-00
|
$11.49 | ||
|
Unavailable |
|||
|
#49
BOLT, HEX. SOCKET BUTTON
90111-05021-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#50
BOLT
90109-06336-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#51
GROMMET
90480-01559-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#52
GROMMET
90480-10003-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#53
LABEL, CAUTION
3JJ-28446-A2-00
|
$4.95 | ||
|
Unavailable |
|||
|
#54
LABEL, CAUTION
3TB-24877-A1-00
|
$5.99 | ||
|
Unavailable |
|||
|
#55
EMBLEM, YAMAHA
1RC-2153E-30-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
