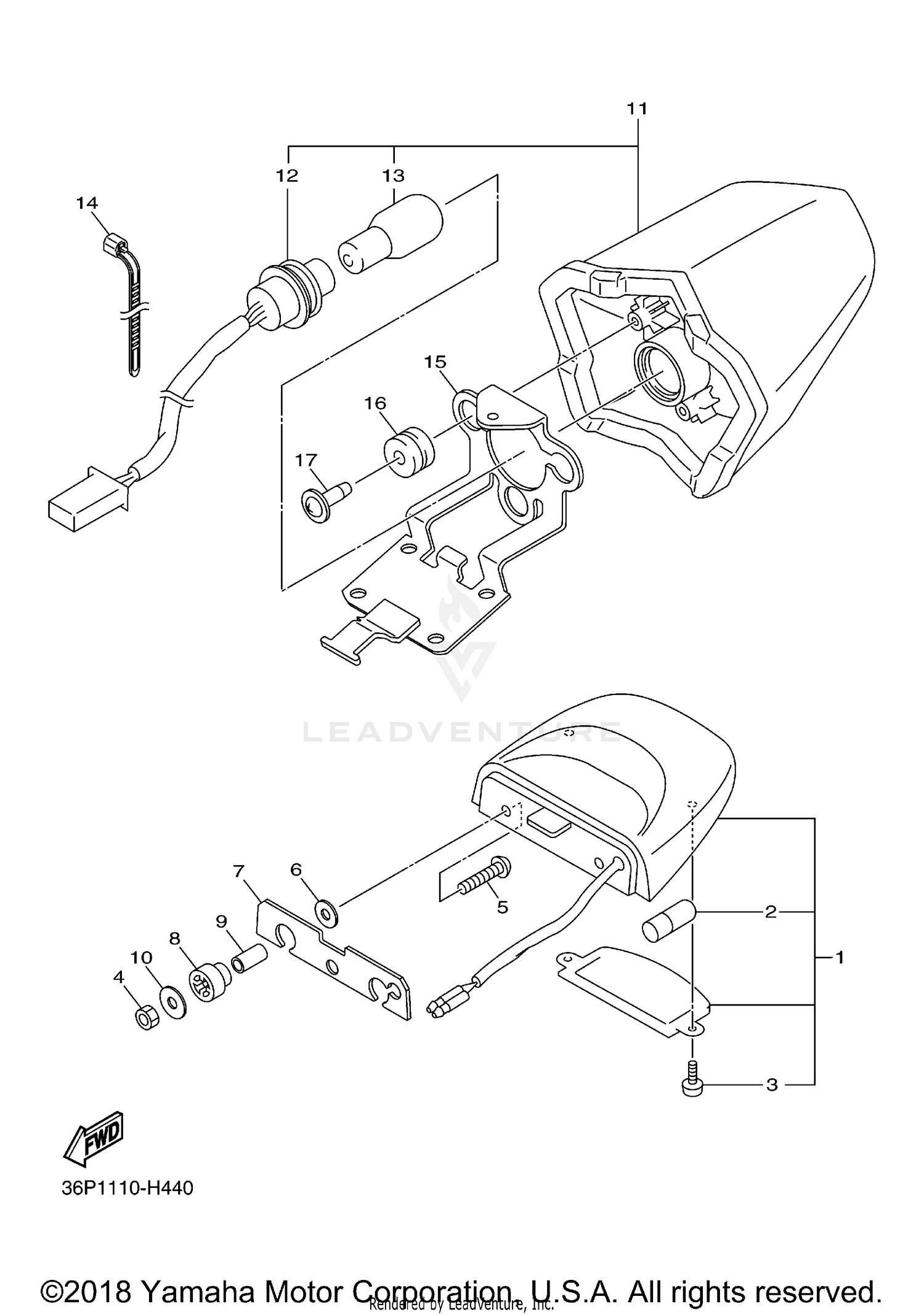

Taillight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LICENSE LIGHT UNIT ASSY
5VX-84745-01-00
|
$106.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BULB (12V-5W)
4HC-84744-00-00
Superseded by 4SV-84347-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, TAPPING
97706-04012-00
Superseded by 97707-40012-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT, U
95602-05100-00
Superseded by 95617-05100-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
90111-05030-00
Superseded by 90111-05010-00
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
90201-05043-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
DAMPER
20S-84753-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
DAMPER
3F9-84553-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR
90387-05049-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-05025-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
TAILLIGHT UNIT ASSY
20S-84710-00-00
|
$102.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SOCKET CORD ASSY
20S-84735-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BULB, FLASHER (12V-21/5W)
3P6-83331-10-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP
90464-25004-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#15
BRACKET, TAILLIGHT
36P-84519-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
GROMMET
90480-18276-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, TAPPING
90164-05001-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
