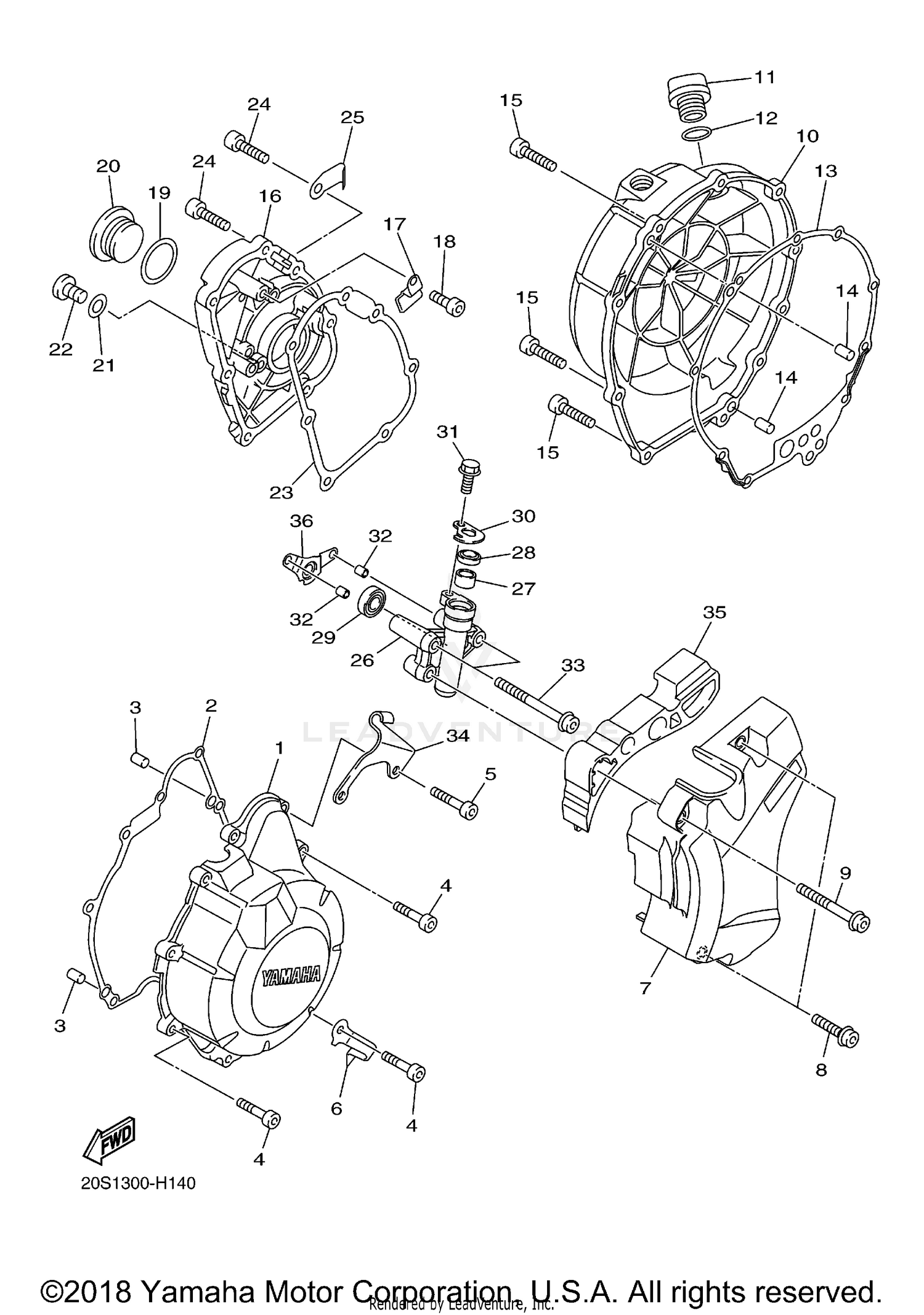

Crankcase Cover 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, CRANKCASE 1
36P-15411-00-00
Superseded by 36P-15411-01-00
|
$199.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, CRANKCASE COVER 1
5VX-15451-01-00
|
$21.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
PIN, DOWEL
99530-08012-00
|
$6.60 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, HEXAGON SOCKET HEAD
90110-06295-00
Superseded by 91314-06025-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, HEXAGON SOCKET HEAD
91314-06030-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLAMP
90465-08045-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER, CHAIN CASE
20S-15418-00-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, HEXAGON SOCKET HEAD
90110-06329-00
Superseded by 90110-06195-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
BOLT, HEXAGON SOCKET
90110-06330-00
Superseded by 90110-06305-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, CRANKCASE 2
36P-15421-00-00
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLUG, OIL LEVEL
3F9-15362-00-00
Superseded by BAT-15362-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING
93210-27194-00
Superseded by 93210-27778-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
GASKET, CRANKCASE COVER 2
20S-15461-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN, DOWEL
93608-17263-00
|
$3.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BOLT, HEXAGON SOCKET HEAD
90110-06295-00
Superseded by 91314-06025-00
|
$9.49 | ||
|
Unavailable |
|||
|
#16
COVER, OIL PUMP
36P-15416-00-00
|
$125.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLAMP
90465-14011-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT (4MY)
90110-06161-00
Superseded by 91317-06016-00
|
$1.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
O-RING
93210-32172-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
PLUG, STRAIGHT SCREW
90340-32004-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
GASKET
90430-08143-00
|
$3.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
BOLT, BUTTON HEAD
92014-08014-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
GASKET, OIL PUMP COVER 1
20S-15456-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, HEXAGON SOCKET HEAD
90110-06274-00
Superseded by 91314-06020-00
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLAMP
90465-10042-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
COVER, GENERATOR 2
20S-15425-00-00
|
$145.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BEARING
93317-11295-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
OIL SEAL
93102-12224-00
|
$11.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
OIL SEAL
93109-08061-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
PLATE, SEAT
20S-16384-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE
95022-06014-00
|
$3.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
PIN, DOWEL
99590-08012-00
|
$3.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
BOLT, HEXAGON SOCKET HEAD
90110-06307-00
Superseded by 90110-06262-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
HOLDER, CLUTCH CABLE
20S-15441-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
GUIDE, INLET
20S-15377-00-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
PROTECTER, OIL SEAL
20S-15185-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
