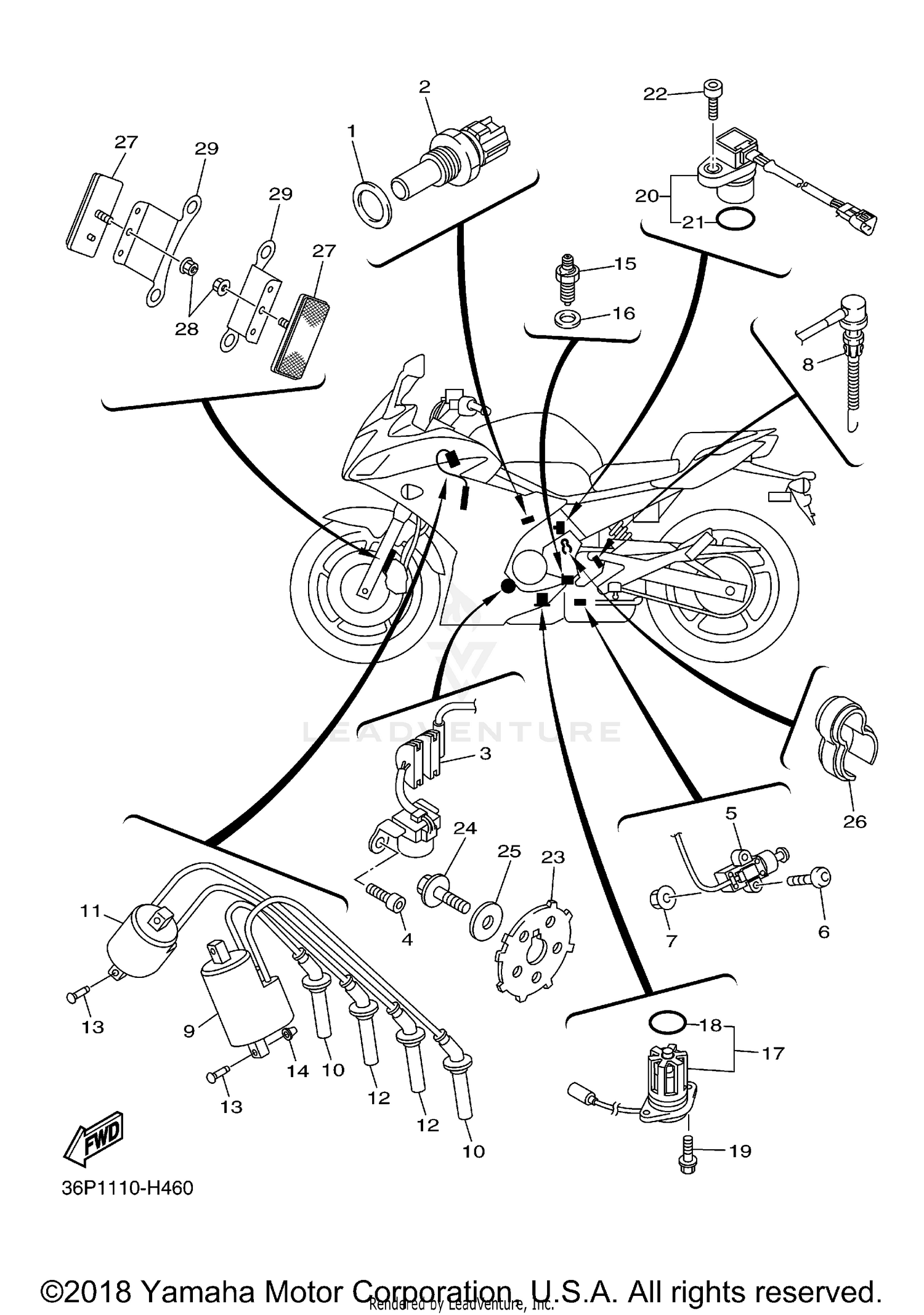

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WASHER, PLATE
90201-12790-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
THERMOSENSOR ASSY
8CC-85790-01-00
|
$103.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PICK-UP ASSY
20S-81670-00-00
Superseded by 20S-81670-03-00
|
$124.99 | ||
|
Unavailable |
|||
|
#4
BOLT (4MY)
90110-06161-00
Superseded by 91317-06016-00
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#5
SWITCH, SIDE STAND
20S-82566-60-00
|
$126.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, BUTTON HEAD
92012-05025-00
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, U FLANGE
95602-05200-00
Superseded by 95607-05200-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
STOP SWITCH ASSY
20S-82530-00-00
Superseded by 20S-82530-01-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
IGNITION COIL ASSY
20S-82310-00-00
Superseded by 20S-82310-01-00
|
$106.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLUG CAP ASSY
20S-82370-01-00
|
$112.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
IGNITION COIL ASSY
20S-82320-00-00
Superseded by 20S-82320-01-00
|
$95.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLUG CAP ASSY
20S-82370-01-00
|
$112.99 | ||
|
Unavailable |
|||
|
#13
SCREW, TAPPING
97702-60525-00
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLUG
90338-08226-00
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
NEUTRAL SWITCH ASSY
3GB-82540-01-00
|
$63.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
GASKET
90430-10148-00
|
$5.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
OIL LEVEL GAUGE ASSY
5VX-85720-01-00
|
$234.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
O-RING
5VY-8A8E0-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
90105-06187-00
Superseded by 95022-06016-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#20
SENSOR, SPEED
4WM-83755-02-00
Superseded by 4WM-83755-03-00
|
$140.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
O-RING
4D9-81168-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, HEXAGON SOCKET HEAD
91312-06016-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
ROTOR
20S-81673-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE
90105-08113-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLATE
90201-08054-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLAMP
90464-15065-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
REFLECTOR ASSY
11H-85110-01-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT, U FLANGE
95602-05200-00
Superseded by 95607-05200-00
|
$10.49 | ||
|
Unavailable |
|||
|
#29
BRACKET, REFLECTOR 1
36P-85112-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
