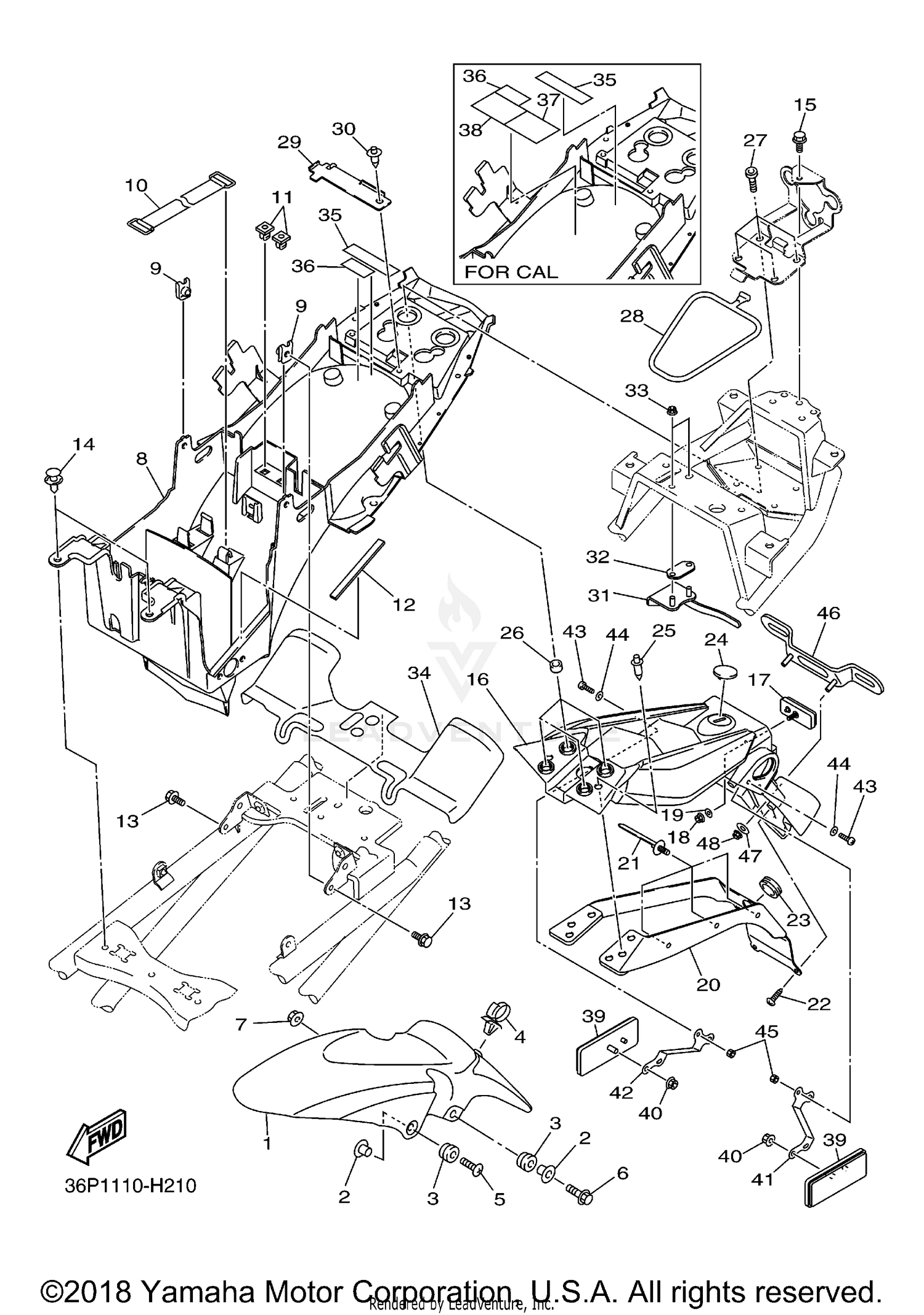

Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT
5VX-21511-A0-P2
|
$208.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
FENDER, FRONT
5VX-21511-A0-P3
|
$187.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
COLLAR
90387-065J6-00
Superseded by 90387-06159-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
GROMMET
90480-12072-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLAMP
90464-18002-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, BINDING
90154-06061-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
BOLT, FLANGE (SMALL HEAD)
95024-06030-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, WITH WASHER
95702-06500-00
|
$2.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
FENDER, REAR
20S-21611-00-00
Superseded by 20S-21611-01-00
|
$50.99 | ||
|
Unavailable |
|||
|
#9
NUT, SPRING
90183-06053-00
Superseded by 90183-06069-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BAND, BATTERY
120-82131-00-00
Superseded by 7H3-82131-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GROMMET
90480-07003-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#12
DAMPER
5JW-2174X-00-00
|
$0.50 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
95802-06012-00
Superseded by 95817-06012-00
|
$1.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
RIVET
90269-07010-00
|
$4.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BOLT, FLANGE
95822-06010-00
Superseded by 95812-06010-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#16
GUARD, MUD
20S-21629-10-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
REAR REFLECTOR ASSY
3Y6-85130-02-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, U
95602-05100-00
Superseded by 95617-05100-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
90201-05043-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BRACKET, REAR STAY
20S-21688-00-00
Superseded by 20S-21688-01-00
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLAMP
90464-31001-00
Superseded by 90464-20005-00
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, ROUND TAPPING
90160-05012-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
GROMMET
90480-23345-00
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#24
TUNING FORK MARK
8GC-2836B-01-00
Superseded by 8GC-2836B-02-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
RIVET
90269-07001-00
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#26
COLLAR
90387-06232-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT
91312-08025-00
Superseded by 91317-08025-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
BAND, TOOL
3YX-21376-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
PLATE, FITTING 3
20S-21677-00-00
Superseded by 20S-21677-01-00
|
$4.00 | ||
|
Unavailable |
|||
|
#30
RIVET
90269-06008-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
BRACKET, HELMET HANGER
36P-2115J-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
PLATE
20S-24792-00-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#33
NUT, WITH WASHER
95702-06500-00
|
$2.60 | ||
|
Unavailable |
|||
|
#34
DAMPER 2
36P-21639-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
LABEL, CAUTION
3JJ-28446-A1-00
Superseded by 3JJ-28446-A2-00
|
$4.95 | ||
|
Unavailable |
|||
|
#36
LABEL, CAUTION
3TB-24877-A0-00
Superseded by 3TB-24877-A1-00
|
$5.99 | ||
|
Unavailable |
|||
|
#37
PLATE, ROUTING
5VX-21684-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
LABEL
5VX-2178A-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#39
REAR REFLECTOR ASSY
3Y6-85130-02-00
|
$30.99 | ||
|
Unavailable |
|||
|
#40
NUT, U FLANGE
95602-05200-00
Superseded by 95607-05200-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
STAY 1
36P-2164F-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
STAY 2
36P-2164G-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
SCREW,PANHEAD
98502-04012-00
Superseded by 98517-04012-00
|
$4.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#44
WASHER, PLATE
92902-04600-00
Superseded by 92990-04600-00
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
NUT, U
95602-04100-00
Superseded by 95617-04100-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
BRACKET, LICENSE
5MT-84751-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
WASHER, PLATE
90201-06088-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#48
NUT, U
95602-06100-00
Superseded by 95617-06100-00
|
$2.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
