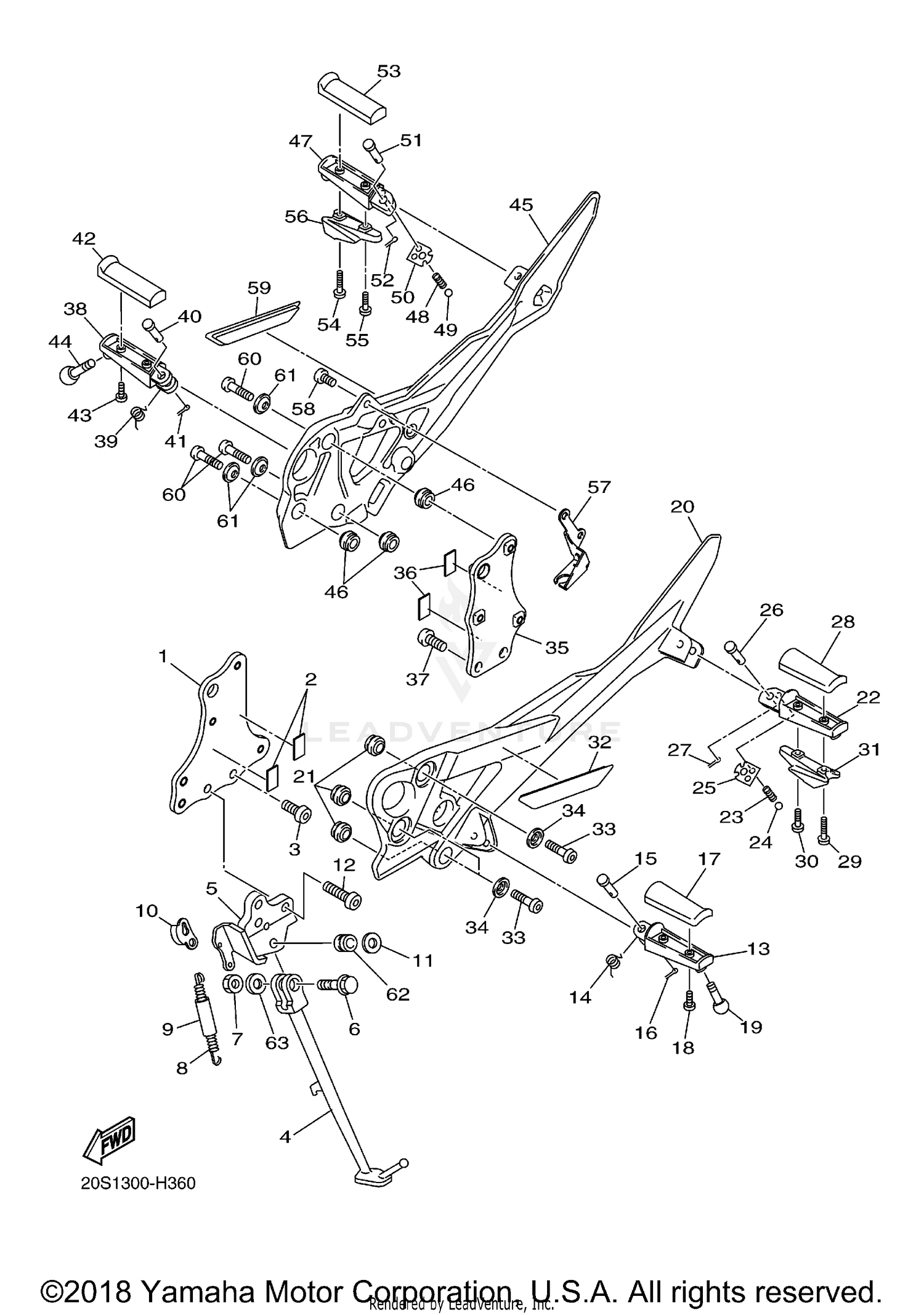

Stand Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BRACKET, ADAPTER 1
20S-274A3-00-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
DAMPER, RUBBER 1
4RR-21485-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT,HEX. SOCKET BUT
90111-10043-00
Superseded by 90111-10044-00
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#4
STAND, SIDE
20S-27311-00-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRACKET, SIDE STAND
20S-27321-00-00
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE
90105-10365-00
Superseded by 90105-10262-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, SELF-LOCKING
90185-10023-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, TENSION
90506-23018-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
GUIDE, SIDE STAND
5VX-27351-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
LINK, SIDE STAND
5VX-27315-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
90201-10051-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT,HEX. SOCKET BUT
90111-10045-00
Superseded by 90111-10046-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
FOOTREST
4BH-27451-01-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, TORSION
90508-20572-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN, CLEVIS
91701-08042-00
|
$3.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
PIN. COTTER
91402-25015-00
Superseded by 91490-25020-00
|
$3.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
COVER, FOOTREST
4BP-27413-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, PAN HEAD
90157-05025-00
Superseded by 98580-05014-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
90109-08203-00
Superseded by 90109-08204-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BRACKET 2
20S-27442-00-00
|
$365.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
DAMPER, FOOTREST 2
5VX-27424-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
FOOTREST, REAR 1
5RT-27431-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPRING, COMPRESSION
90501-12743-00
|
$5.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
BALL
93501-04011-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
WASHER, SPECIAL
5VX-27437-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIN, CLEVIS
91701-08042-00
|
$3.90 | ||
|
Unavailable |
|||
|
#27
PIN. COTTER
91402-25015-00
Superseded by 91490-25020-00
|
$3.45 | ||
|
Unavailable |
|||
|
#28
COVER, FOOTREST
4BP-27413-00-00
|
$33.99 | ||
|
Unavailable |
|||
|
#29
SCREW, WITH WASHER
90159-05187-00
Superseded by 97607-05230-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
SCREW, WITH WASHER
90159-05004-00
Superseded by 97607-05220-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#31
ARM 2
5LV-2741E-01-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
COVER 1
20S-27453-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, HEXAGON SOCKET HEAD
90111-08066-00
Superseded by 90110-08220-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER
90209-08295-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
BRACKET, ADAPTER 2
20S-274A4-00-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
DAMPER, RUBBER 1
4RR-21485-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#37
BOLT,HEX. SOCKET BUT
90111-10036-00
Superseded by 90111-10037-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#38
FOOTREST
4BH-27461-01-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
SPRING, TORSION
90508-20572-00
|
$9.49 | ||
|
Unavailable |
|||
|
#40
PIN, CLEVIS
91701-08042-00
|
$3.90 | ||
|
Unavailable |
|||
|
#41
PIN. COTTER
91402-25015-00
Superseded by 91490-25020-00
|
$3.45 | ||
|
Unavailable |
|||
|
#42
COVER, FOOTREST
4BP-27413-00-00
|
$33.99 | ||
|
Unavailable |
|||
|
#43
SCREW, PAN HEAD
90157-05025-00
Superseded by 98580-05014-00
|
$6.99 | ||
|
Unavailable |
|||
|
#44
BOLT
90109-08203-00
Superseded by 90109-08204-00
|
$8.49 | ||
|
Unavailable |
|||
|
#45
BRACKET 3
20S-27443-00-00
|
$392.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
DAMPER, FOOTREST 2
5VX-27424-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#47
FOOTREST, REAR 2
5RT-27441-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
SPRING, COMPRESSION
90501-12743-00
|
$5.49 | ||
|
Unavailable |
|||
|
#49
BALL
93501-04011-00
|
$9.49 | ||
|
Unavailable |
|||
|
#50
WASHER, SPECIAL
5VX-27437-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#51
PIN, CLEVIS
91701-08042-00
|
$3.90 | ||
|
Unavailable |
|||
|
#52
PIN. COTTER
91402-25015-00
Superseded by 91490-25020-00
|
$3.45 | ||
|
Unavailable |
|||
|
#53
COVER, FOOTREST
4BP-27413-00-00
|
$33.99 | ||
|
Unavailable |
|||
|
#54
SCREW, WITH WASHER
90159-05187-00
Superseded by 97607-05230-00
|
$9.49 | ||
|
Unavailable |
|||
|
#55
SCREW, WITH WASHER
90159-05004-00
Superseded by 97607-05220-00
|
$3.05 | ||
|
Unavailable |
|||
|
#56
ARM 2
5LV-2741E-01-00
|
$61.99 | ||
|
Unavailable |
|||
|
#57
STAY, STOP SWITCH
20S-2144G-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#58
BOLT, BUTTON HEAD
92014-08020-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#59
COVER 2
20S-27463-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#60
BOLT, HEXAGON SOCKET HEAD
90111-08066-00
Superseded by 90110-08220-00
|
$8.49 | ||
|
Unavailable |
|||
|
#61
WASHER
90209-08295-00
|
$9.49 | ||
|
Unavailable |
|||
|
#62
COLLAR
90387-1003G-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#63
WASHER, PLATE
90201-10035-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
